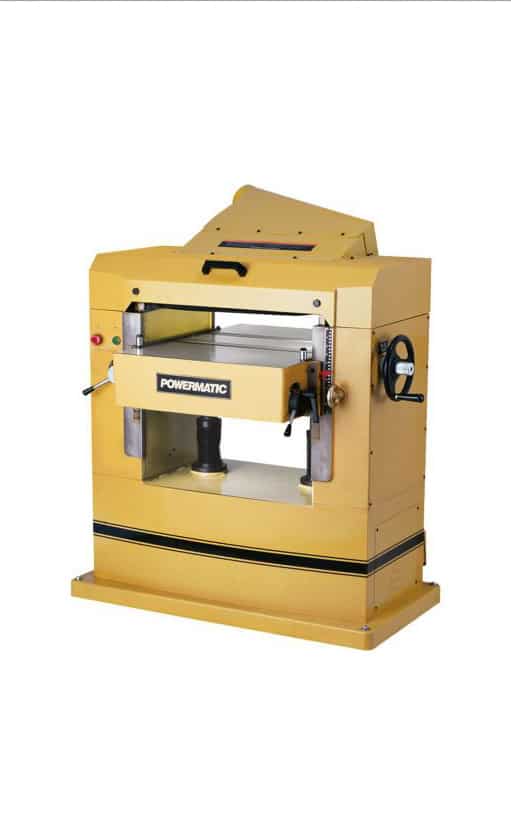

Powermatic 201

Type of Cutterhead Straight Knife Knife Size (L x W x T) 22-1/8 x 7/8 x 1/8 Cutterhead Speed (RPM) 4,800 Cutterhead Diameter (In.) 3-1/4 Cuts Per Minute 19,200 Number of Knives 4 Maximum Depth of Cut (In.) 3/16 Maximum Planing Width (In.) 22 Maximum Planing Thickness (In.) 9-1/4 Minimum Planing Length (In.) 10 Feed Rate (FPM) 20/30 Segmented Infeed Roller Diameter (In.) 3 Outfeed Roller Diameter (In.) 3 Bed Rollers Adjustable from Front 2 Table Size (L x W) (In.) 32-1/4 x 24 Table Support 2 Column Dust Collection Minimum CFM Required (CFM) 900 Dust Port Outside Diameter (In.) 5 Motor Power (HP) 7-1/2 Motor Phase 1 Motor Voltage (V.) 230 only Recommended Circuit Size (Amps.) 50
