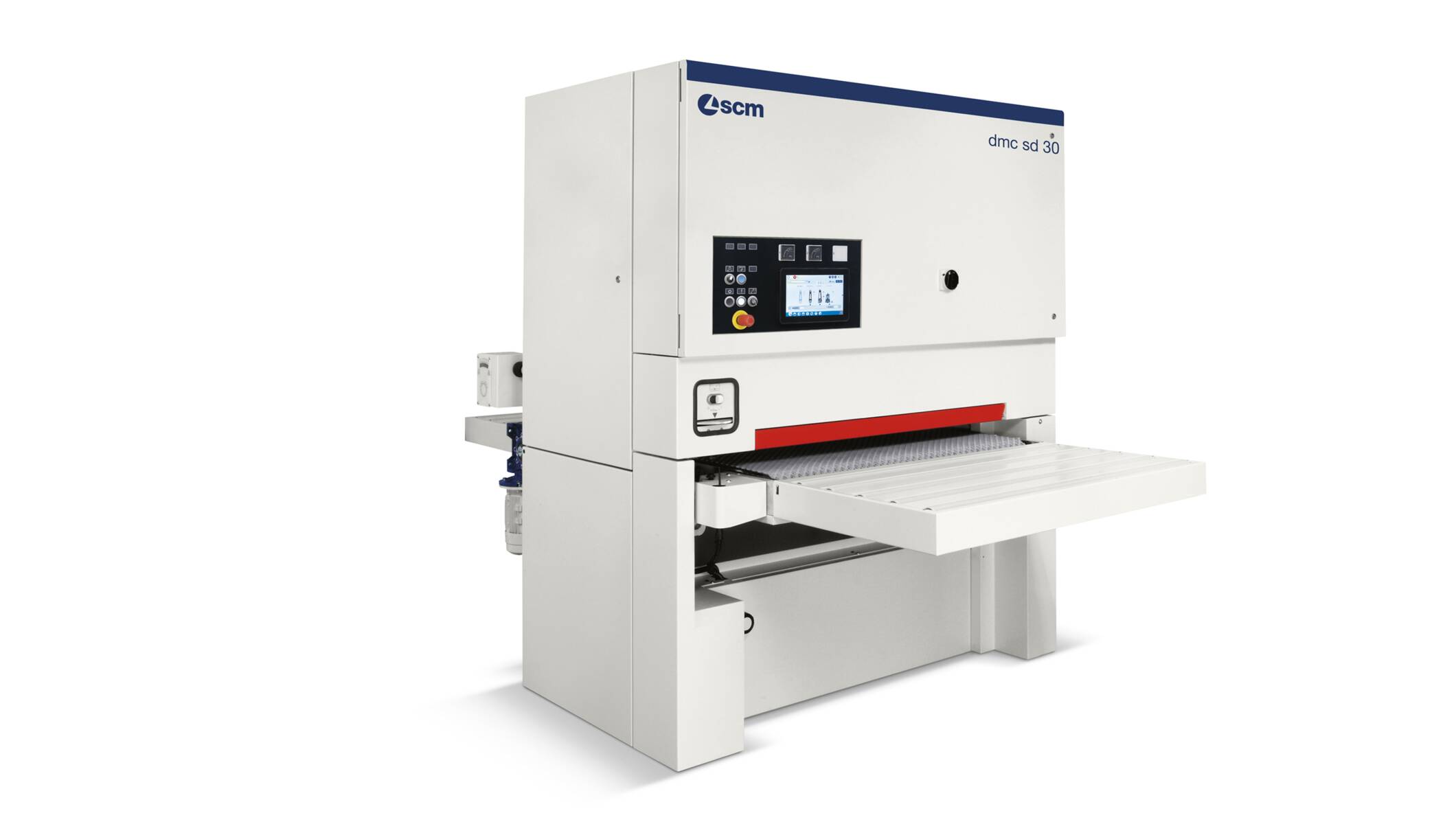

DMC SD 30 CS 110

• Rubber coated pressing rollers before and after working unit • 1 HP two speed feed unit. Feed speeds set at 15 or 30 feet per minute • Y-Delta two-stage reduced voltage starter on main motor • 2 roller Infeed and outfeed table extensions • Automatic Electronic Table Positioning Device • Adjustable sanding drum and pad position for micro precision adjustment • Electronic digital thickness readout of work table position • Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability • Electronic tracking of abrasive belt • Automatic feed mat tracking • Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt • Front and rear emergency stop buttons • Automatic emergency stop of machine for: - sanding belt breaking, tensioning, over tracking - opening of the access door to the operating groups - absence of compressed air - overload on main motors • Amperage meter for main motors allows maximum utilization of available horsepower • Main disconnect switch with the ability to be locked out by padlock • In feed flexible steel hold down, and anti-kickback plate • 50 shore, negative profile (waffle style) rubber feed mat • LOGIC 50 K Electronic Programmer for timing/anti-dubbing • of the pad
