ME 40ET
Non-returnable
$37,165.00

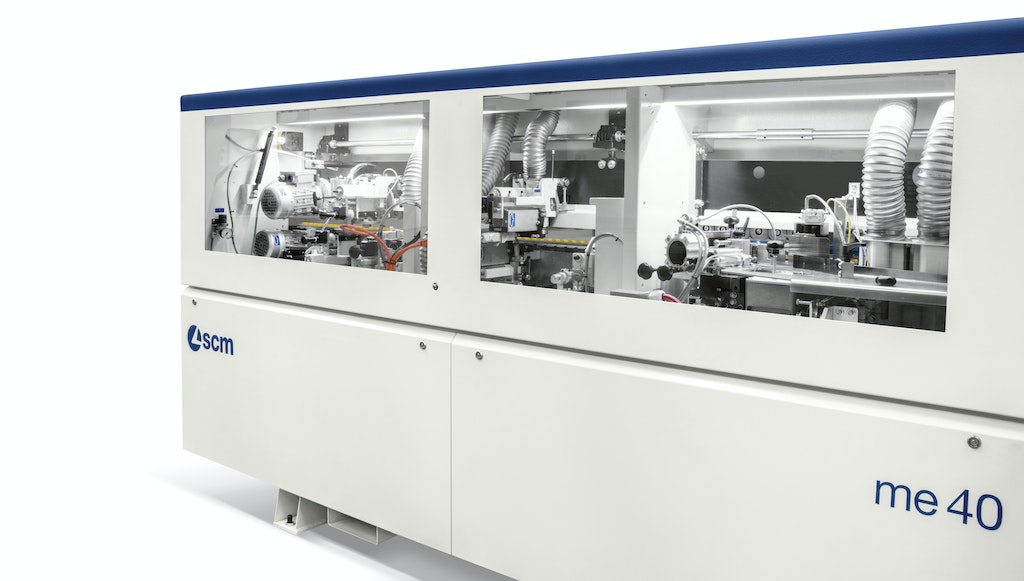

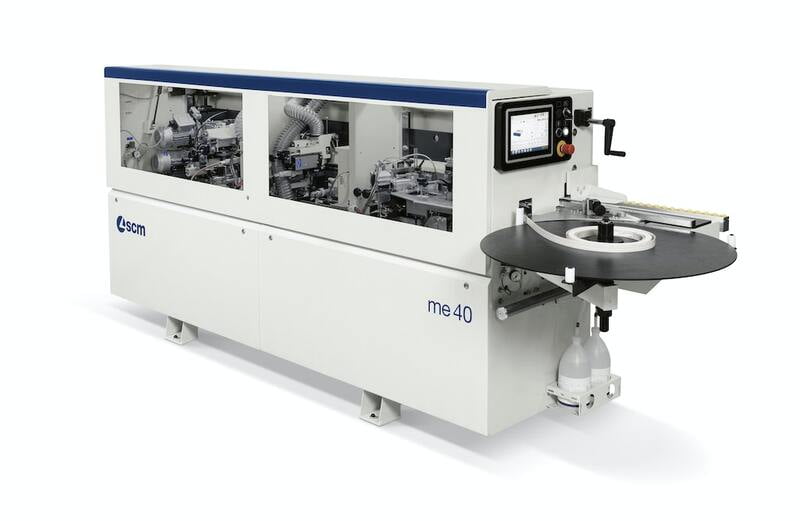

High productivity edge bander with top level performance.
It enables to obtain high quality finished products, without further processing, allowing a considerable saving of time and increasing ease of processing. It is confirmed as the most accessorizable machine in its technological range, with an excellent quality/price ratio.
This edgebander increases productivity with the feed track of the panel brought to a speed of 9 m/min and it guarantees high quality standards in processing thanks to the possibility of working with polyurethane glue, perform grooves, all being extremely easy to use.
It enables to obtain high quality finished products, without further processing, allowing a considerable saving of time and increasing ease of processing. It is confirmed as the most accessorizable machine in its technological range, with an excellent quality/price ratio.
This edgebander increases productivity with the feed track of the panel brought to a speed of 9 m/min and it guarantees high quality standards in processing thanks to the possibility of working with polyurethane glue, perform grooves, all being extremely easy to use.
_collectionId
3921299000012231063 Choose Quantity
Product Details
TECHNICAL SPECIFICATIONS
Worktable dimensions 3465 x 710 mm (136.37” x 27.94”)
Worktable height 875 mm (34.44”)
Thickness of rolled edges 0.4 - 3 mm (0.02 – 0.06”)
Thickness of edges in strips Up to 5 mm (0.19”)
Min. ÷ max. panel height 8 ÷ 50 mm (0.31 – 1.94”)
Min. panel length/width with rolled edges 190 / 110 mm (7.5 – 4.31”)
Feed speed 9 m/min ( 30 ft/min)
Feed motor power 0.55 Kw
Operating temperature 20 – 190 °C (68 – 374 °F)
PREMILLING UNIT
Motor 3 Kw - 7200 rpm
Diamond cutter 2 x Ø 80 mm H="56" Z2
Stock removal 0 ÷ 2 mm (0 ÷ 0.08”)

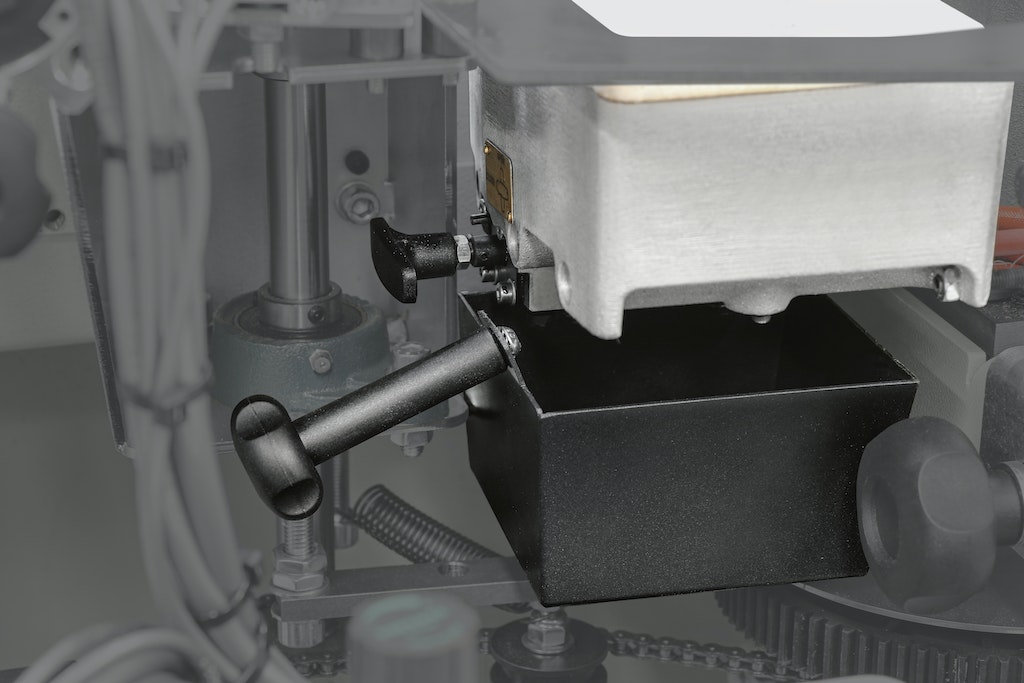

GLUE POT UNIT
Motor 0.25 Kw
Glue capacity ~0.8 kg (2 lbs)
END CUTTING UNIT
Motor 0.19 Kw - 12000 rpm
Blade Ø 125 mm Z20

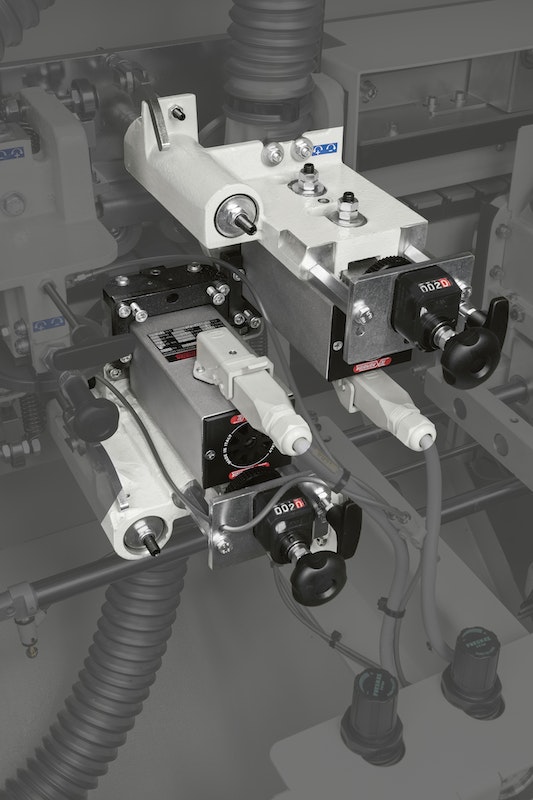

TOP and BOTTOM TRIMMING UNIT
Motor 2 x 0.35 Kw - 12000 rpm
Widia cutters Ø 55.3 mm Z3

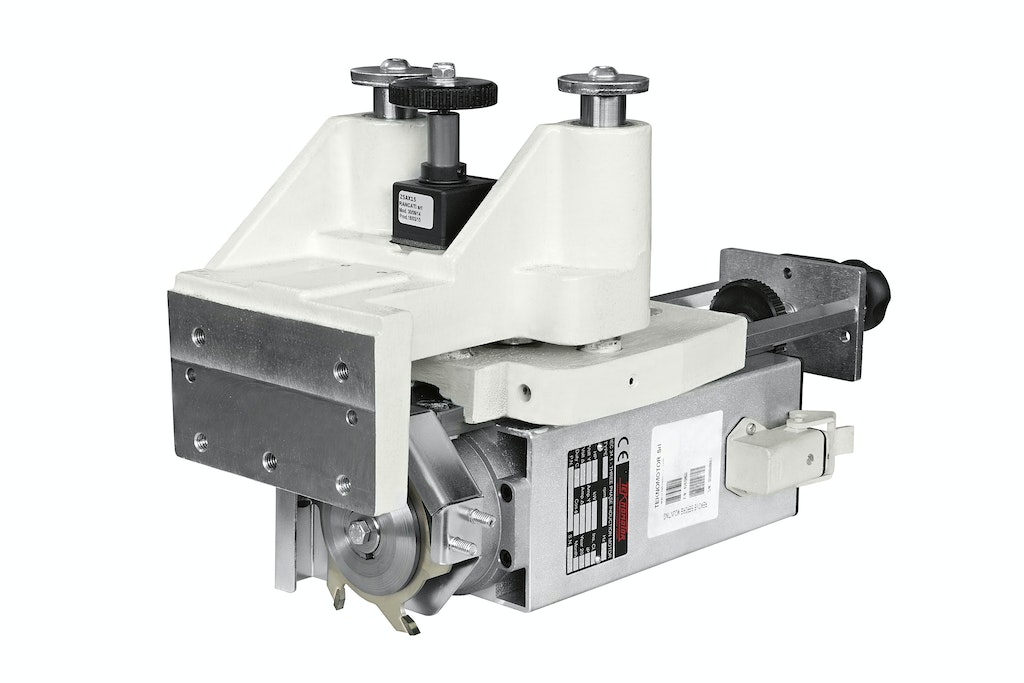

ROUNDING UNIT
Motor 0.35 Kw - 12000 rpm
Cutter Ø 58 mm Z4
BRUSHING UNIT
Motor power 2 x 0.14Kw - 2800 rpm
Exhaust outlets diameter:
no. 2 pre-milling unit outlets
no. 1 glue pot outlet
no. 2 trimming unit outlets
no. 1 rounding unit outlets
no. 1 grooving unit outlets (*unit not included*)
80 mm (3.12”)
80 mm (3.12”)
60 mm (2.31”)
60 mm (2.31”)
60 mm (2.31”)
Installation requirements
Nominal extraction air consumption 1866 m3
/h (1082 CFM)
Air exhaust speed 20 m/s (66 ft/s)
Pneumatic operating pressure 6.5 bar
Electrical requirements
***subject to change; must be verified prior to installation***
220 V – 60 Hz – three phase – 38 amps
