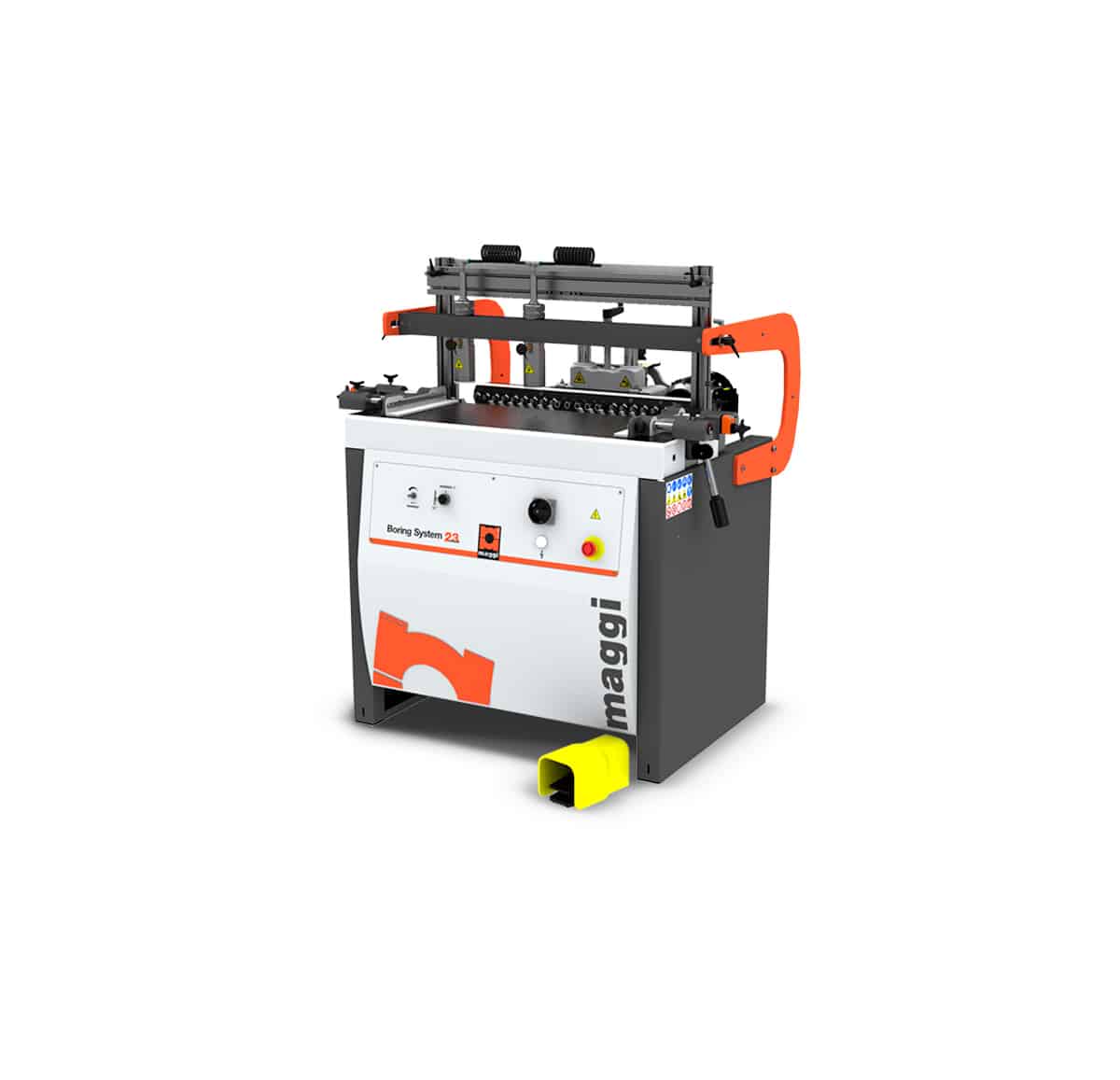

Maggi System 23

The Maggi System 23 Boring Machine provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle. Accurate positioning of the boring unit to the table with digital readout 0 to 2.5″ adjustable drilling depth with patented spiral setting device (2) patented quick release material clamps with auto-setting to firmly hold material to table Powerful 2 HP motor 37″ x 13″ cast iron table Side fences with mechanical digital readout for quick and accurate setting 120″ back fence with (2) stops – Maximum stroke 300 mm (12″) Fixed stop at 37 mm for hinges Foot actuated pneumatic clamps and drill cycle Uses 11 LH (red) and 12 RH (black) boring bits Includes: Magnetic Starter with overload protection and (23) quick change chucks Dust Outlet: 3″ Net weight: 630 lbs Dimensions: 51.7″ x 37.8″ x 50″ Tall Crated Dimensions: 42.2″ x 37.4″ x 40.5″ Tall Crated Weight: 705 lbs.
