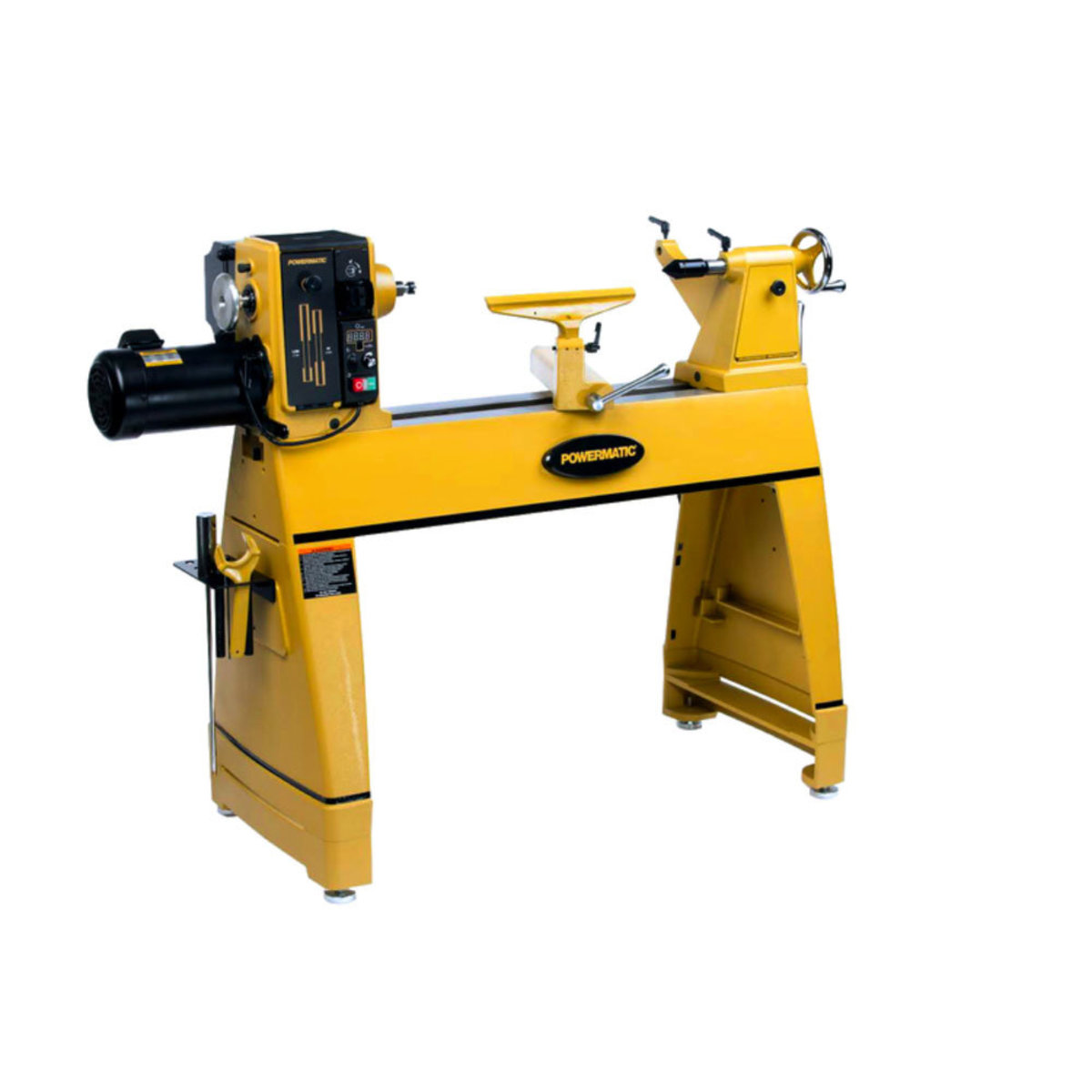

Powermatic 3520C LATHE

Specifications: Able to maintain speeds as low as 15 RPM Motor: 2HP, 230V, 6.2A, 3PH Dimensions: 30.5" H x 55.25" L x 27.25" W Speed Range: 15-3200 Spindle Threads (In. x TPI): 1-1/4 x 8 Centerline of Spindle to Floor (In.): 40-5/8 without Risers Spindle Bore: 5/8" Headstock Movement: Full Length of Bed Spindle Taper: MT-2 Number of Indexing Positions: 48 Swing Over Tool Rest Base (In.): 15-3/4 Outboard Turning: Yes Distance between Centers (In.): 36 w/dual bearing center Spindle Speeds: Low 15-1200/High 40-3200 Ram Travel Quill Travel: 4-1/2" Bed Construction: Cast Iron Recommended Circuit Size (Amps.): 20 Size (In.): 20 Quill Taper: MT-2 Tailstock Bore: 3/8" Outboard External Threads (In. x TPI): 1-3/16-18 UNC Swing Over Bed (In.): 20 Bed Gap (In.): 2-1/2 Tool Rest Post Diameter: 1"
