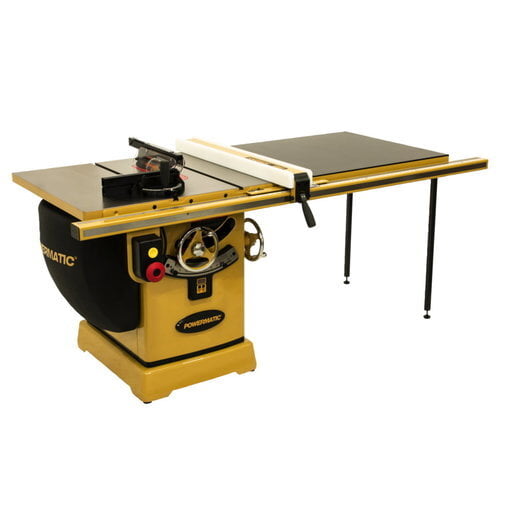

PM2000B TABLE SAW 5HP 3PH 230/460V 50" Workbench

specification: Motor: 5HP, 3PH, 230/460V, 13/6.5A L x W x H (In.): 84.75 x 39.5 x 40.5 Net Weight (lbs): 644 lbs. Gross Weight (lbs): 719 lbs. Style: Cabinet Saw Prewired Voltage (V.): 230 Table Height from Floor (In.): 35 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.): 13-1/2 Table Size (In.): 22 x 30-1/2 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 10 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 5/8 Recommended Circuit Size (Amps.): 20 Dust Collection Minimum CFM Required (CFM): 400 Table Size with Extensions (In.): 42 x 30-1/2 Maximum Depth of Cut at 90 Degrees (In.): 3-1/8 Maximum Depth of Cut at 45 Degrees (In.): 2-1/8 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4
