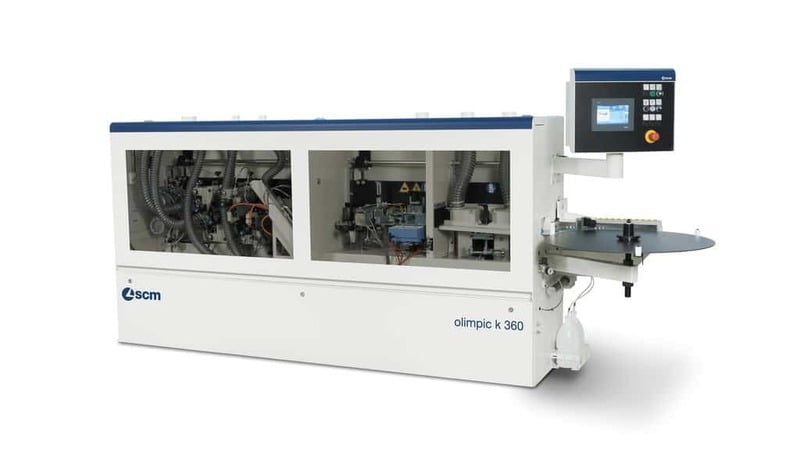

Olimpic K 360

About This Machine: The K360 is an automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 6mm. Machine Base The machine base is made of a tubular steel structure and is designed to assure maximum stability and accuracy. Top Pressure Beam All operating units raise and lower simultaneously when the pressure beam is adjusted. No adjustment is required for the glue roller when changing panel thickness. The pressure beam has two rows of staggered pressure rollers with steel bearings. Capacities And Speed – Edgebanding thickness: .4mm – 6mm (.016-1/4”) – Guillotine capacity: 3mm – Feed speed: 36 ft/min. – Panel height: 3/8” min – 2 1/2” max – Minimum panel length: 5 1/2” – Minimum panel width: 2 3/8” – Minimum distance between panels: 20” Glue Station Teflon coated glue pot to facilitate glue changeover. Warm up time is approximately eight to ten minutes. The unit is also equipped with a quick disconnect plug for changing from one pot to another.
