Nova F 520
Non-returnable
$12,675.00 - $13,275.00

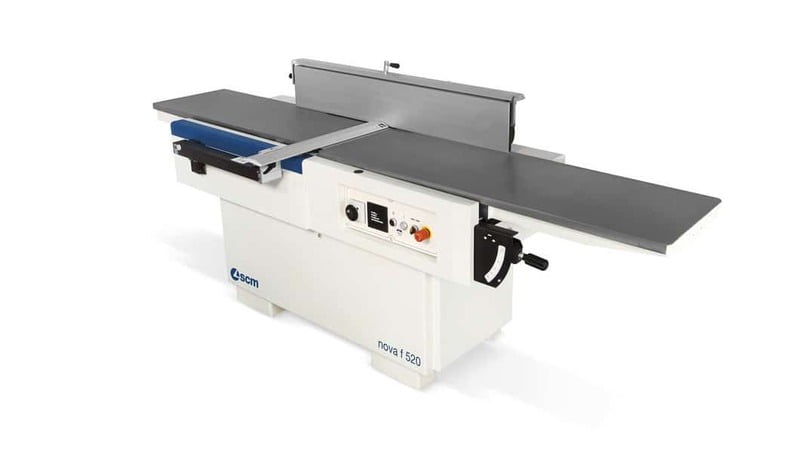

The Nova F 520 T is a heavy duty, long bed 20” jointer designed to meet the needs of the most demanding environments. It features cast iron tables, a tilting fence and a quick change Tersa cutterhead.
Cutterhead
Choose Quantity
Product Details
TECHNICAL SPECIFICATIONS
Motor Horsepower 8 HP (3-Phase)
Total Table Length 2750mm (108 1/4”)
Infeed Table Length 1550mm (61”)
Outfeed Table Length 1200m (47 1/4")
Table Width 520mm (20 1/2”)
Working Height 845mm
Working Capacity 2750mm x 520mm (108 1/4” x 20 1/2”)
Max. Depth of Cut 8mm (5/16”)
Cutter Head Diameter 120mm (4 3/4")
RPM 5000
No. of knives 4
Knife Dimensions 520mm x 35mm x 3mm
Fence Size 1200mm x 190mm (47 1/4" x 7 1/2")
Fence Tilt (degrees) 0° – 45°
Dust Hood Diameter 120mm
Noise Level (dB) 75 db
Overall Dimensions 119" x 56"
Shipping Weight 1020kg (2,250 lbs)
Net Weight 850 kg (1,875 lbs)
Electrical Requirements 230 volt
Dust Extraction 980 cfm
