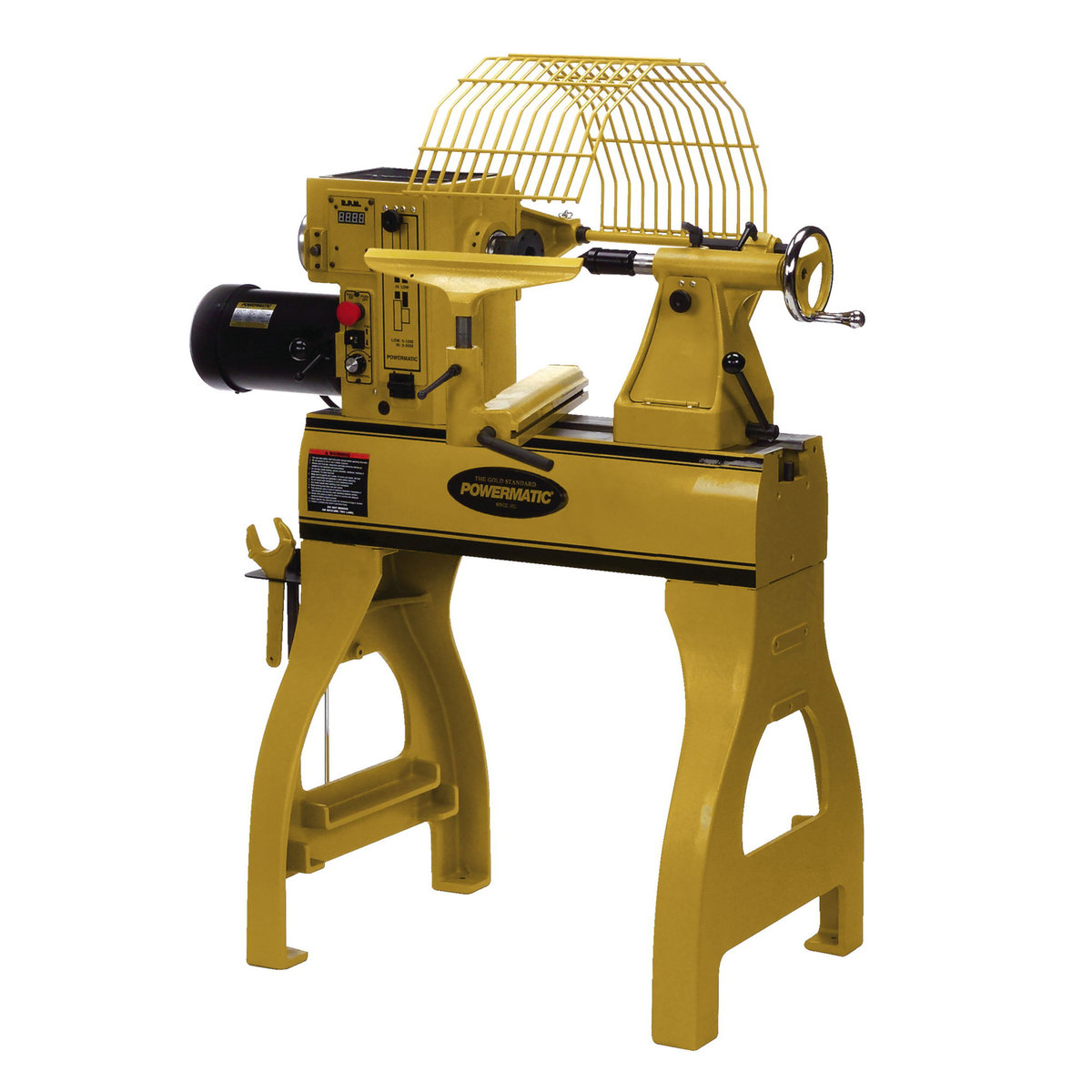

PM2020 SHORT BED LATHE
$4,899.99
Motor: 2HP, 3Ph with Inverter, 230V, 6.2A • Swing Over Bed (In.): 20 • Swing Over Tool Rest Base (In.): 17 • Distance Between Centers (In.): 20 • Headstock Movement: Full Length of Bed • Spindle Bore: 5/8 • Tailstock Bore: 3/8 • Spindle Taper: MT-2 • Quill Taper: MT-2 • Ram Travel Quill Travel: 4-1/2 • Spindle Threads (In. x TPI): 1-1/4 x 8 • Outboard External Threads (In. x TPI): 1-3/16-18 UNC • Spindle Speeds: High 125-3200/Low 50-1200 • Speed Range: 50-3200 • Number of Indexing Positions: 48 • Centerline of Spindle to Floor (In.): 44 (adjustable) • Outboard Turning: 88 • Bed Construction: Cast Iron
