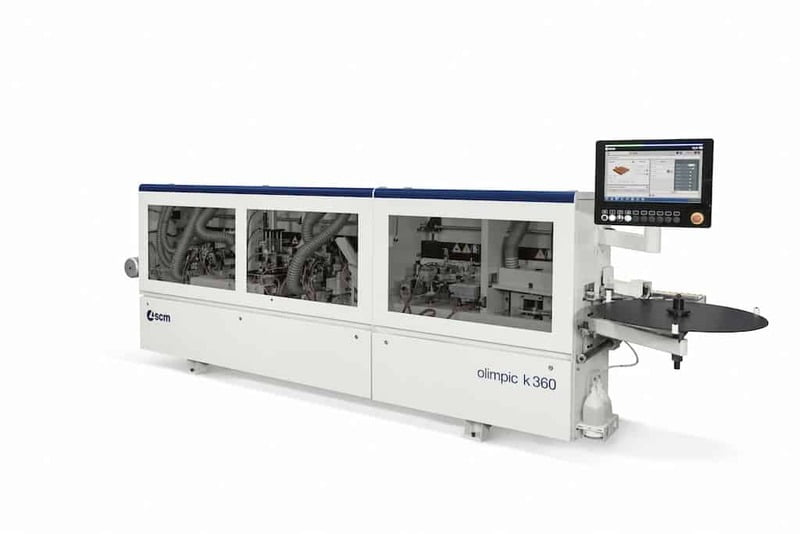

SCM K 360 HP

Servo Driven Edgebander, Automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 8mm. Machine Base The machine base is made of a tubular steel structure and is designed to assure maximum stability and accuracy. Electronic Top Pressure Beam All operating units raise and lower simultaneously when the pressure beam is adjusted. No adjustment is required for the glue roller when changing panel thickness. The pressure beam has two rows of staggered pressure rollers with steel bearings. Capacities and Speed • Edgebanding thickness: .4mm – 6mm (.016-1/4”) • Guillotine capacity: 3mm • Feed speed: 36 ft/min. • Panel height: 3/8” min – 2 1/8” max • Minimum panel length: 5 1/2” • Minimum panel width: 2 3/8” • Minimum distance between panels: 22”
