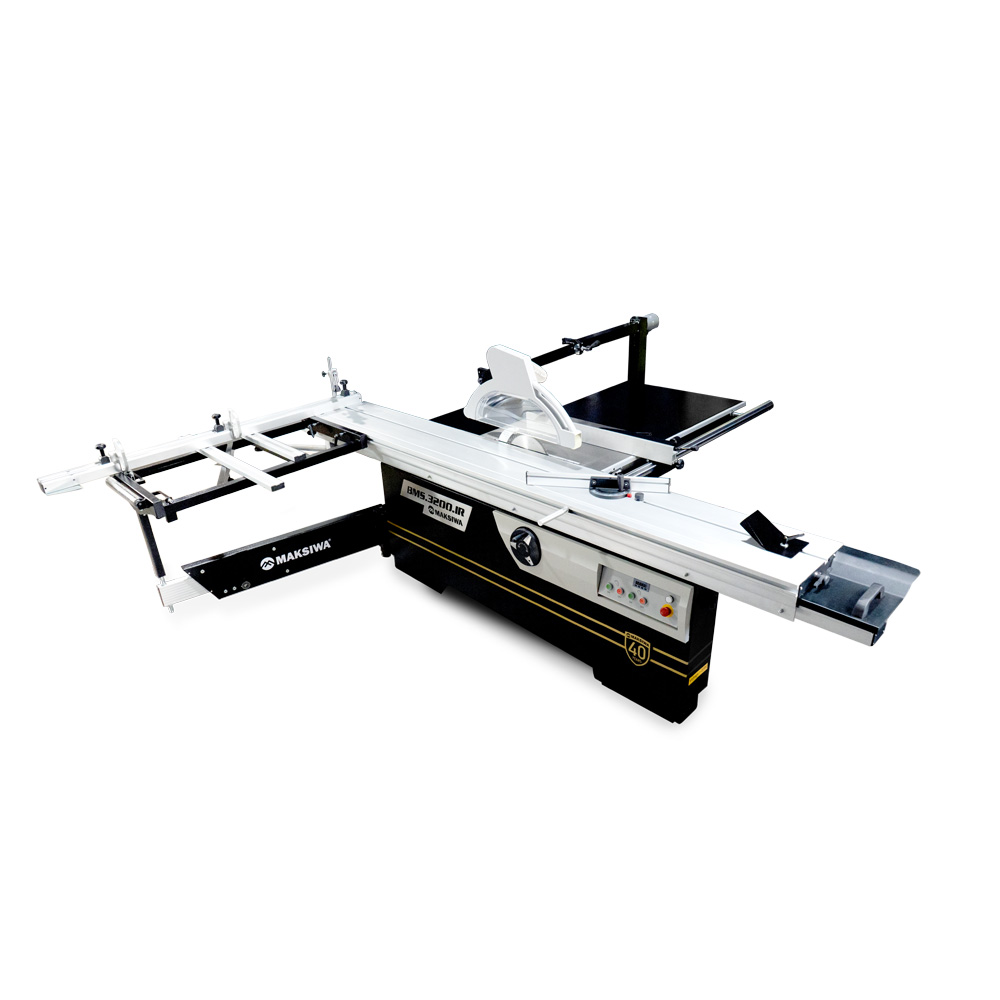

Maksiwa Sliding Panel Saw BMS.3200.IR

Technical Information Main Motor 5 HP/ 4000 RPM 3.7 Kw Max Blade Diameter 12" | 305mm Main Blade Arbor 1 3/16" | 30mm Main Blade Max cutting Height at 90° 3 1/2 " | 90mm Main Blade Cutting Height at 45° 2 1/8" | 53mm Scoring Motor 1 HP / 8000 RPM .74Kw Scoring Motor Blade 4 3/4" | 12mm Scoring Blade Arbor 3/4" | 20mm Scoring Blade Type Conical Max Ripping Capacity 51" | 1295mm Crosscut Capacity 126" | 3200 mm Crosscut Fence Capacity Closed/Open 74 3/4" / 108" | 1899 MM / 2743 mm Machine Working Dimensions (LxWxH) 126" x 137" x 52" | 3200 x 3480 x 1321mm Cast Iron Table Dimension (LxWxH) 31 1/2" x 21" x 34 3/4" | 800 X 553 X 883 mm Sliding Table Dimension (LxW) 126" x 14 3/4" | 3200 x 375 mm Dust Collection Port (2) 4" Minimum Dust Collection Requirements 1000 CFM | 28m/min Electrical Specs 1 Phase 220V 22 Amps 60 Hz 3 Phase 220V 11 Amps 60 Hz Main Body Crate Dimensions (LxWxH) 88" x 48" x 43" | 2245 x 1130 x 1090 mm Main Body Crate Weight Net/Gross 1102/1257 LBS | 500/ 570 KGS Sliding Table Crate Dimensions (LxWxH) 140" x 19" x 8 1/2" | 3556 x 483 x 216 mm Sliding Table Crate Weight Net/Gross 227/282 LBS | 103/128 KGS
