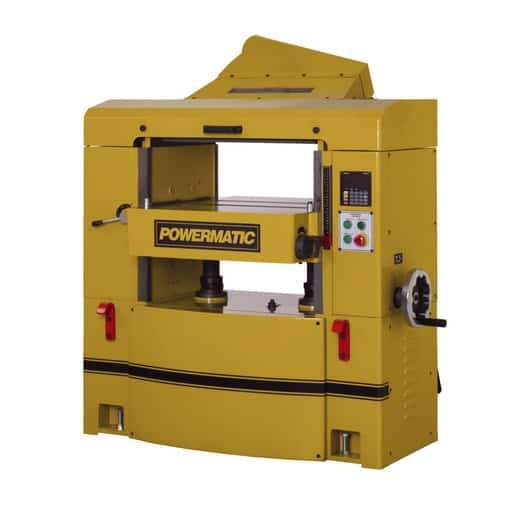

Powermatic WP 2510

• Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels • Digital readout and simple PC controller make quick and easy table height set ups • Segmented serrated infeed roll with segmented chip breakers has 1/4″ independent yield, for planing multiple height stock • Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers • 3″ diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life • Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0″ to 0.050″ at a touch • Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment • Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding • 3 speed feed selector allows you to quickly change feed rates • Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock • Dust hood features built-in 5″ dust chute for efficient dust collection • Helical head with four sided inserts • Dust hood with 5″ diameter dust port • Segmented infeed rollers • Segmented chip breakers • Tool kit with pneumatic screwdriver for removing the cutterhead insert blades • Bed Rollers Adjustable from Front : 0″ to 0.05″ • Column Diameter (in) : 2-1/2 • Cuts Per Minute : 30000 • Cutterhead Diameter (in) : 3-3/8 • Cutterhead Speed (RPM) : 5000 • Dust Collection Minimum CFM Required : 600 • Dust Port Diameter (OD/in) : 5 • Feed Rate (FPM) : 30-25-20 • Height (in): 59 • Length (in): 52 • Maximum Depth of Cut (in) : 1/4 • Maximum Full Width Depth of Cut (in) : 1/8 • Maximum Height of Rollers Parallel to Tabletop (in) : 0.05″ • Maximum Planing Thickness (in) : 9 • Maximum Planing Width (in) : 25 • Minimum Planing Length (in) : 10 • Model Number : WP2510 • Motor HP : 15HP • Motor Phase : 3Ph • Motor Voltage : 230/460V • Net Weight (lb): 1,725 • Number of Knives : 168 Four-sided inserts • Outfeed Roller Diameter (in) : 3 • Overall Dimensions : 52 x 36 x 59 • Part Number : 1791303 • Prewired : Prewired 230V • Readout Scale : in/mm • Rollers (in) : (1) infeed, (2) outfeed • Rotation (Forward/Reverse) : Fwd only • Segmented Infeed Roller Diameter (in) : 3 • Table Height Adjust Manual : 1 handwheel revolution = 1/32″ • Table Size (in) : 32-3/16 x 26 • Table Support : 2 column • Tool Supplied : tool kit • Width (in): 36
