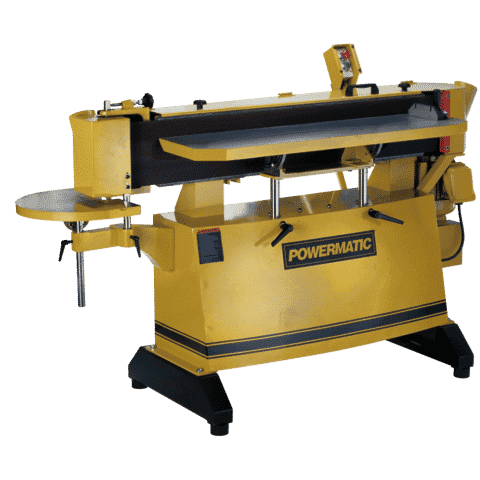

Powermatic OES9138 Oscillating Edge Sander

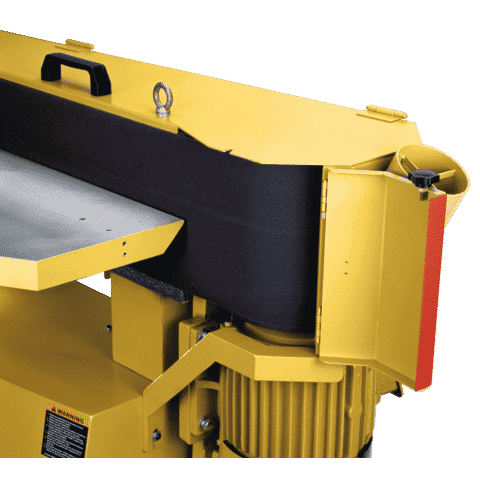

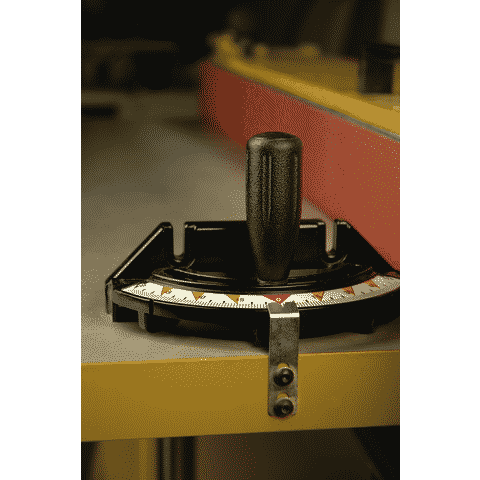

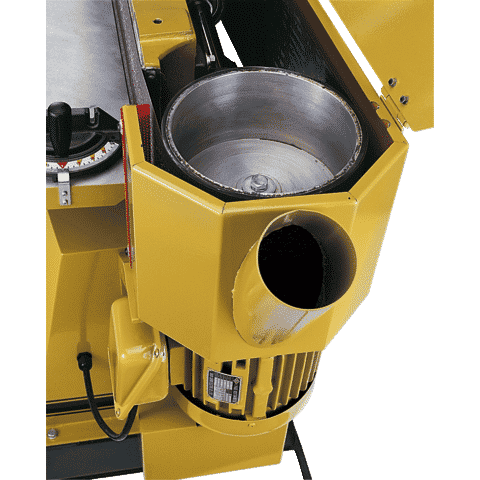

The large 11-3/4″ x 48″ table on the OES9138 oscillating edge sander travels a full 8″ in vertical height to accommodate most woodworking pieces. It will also tilt negative 5° and out to positive 45°. The cast iron platen is a generous 48″ x 9-1/2″ and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt. 3HP motor with 9″ x 138-3/4″ abrasive belt handles large workpiecesOscillates 24 cycles per minute for better finish and longer belt life9-1/2″ x 48″ platen with graphite pad offers largest work surface in its classRugged bearing-assisted tensioning device for fast belt changes and quick adjust trackingPedestal control switch for easy accessLarge 11-3/4″ x 48″ front worktable with 8″ vertical travel tilts and 45° tilt, includes miter head for angle workPrecision balanced 9″ diameter drive drum and 4″ diameter rubber coated idler pulley for positive drive and rigid trackingLarge radius end table has 6″ vertical travel and 45° tilt for any angle and working height neededHeavy-duty oscillating gearbox and shaft for long maintenance-free useHinged guard opens for infinite length sandingDual dust collection ports keep work area clean and extend abrasive belt lifeStandard Equipment:Two 4″ dust portsTilting main and end tablesPlaten with graphite pad • Style (Type) Horizontal/Vertical Oscillating Edge • Sanding Belt Size (L x W) (In.) 9 x 138-3/4 • Belt Speed (FPM) 3542 • Drum Diameter (In.) 4 Outboard, 9 Drive • Platen Size (In.) 9-1/2 x 48 • Oscillations Per Minute 24 • Main Table Size (L x W) (In.) 48 x 11-3/4 • Main Table Tilt (Deg.) 5 In, 45 Out • Table Height from Floor (In.) 34-1/2 – 40-3/4 • End Table Size (In.) 18 • End Table Tilt (Deg.) 40 In, 45 Out • Electrical Controls Magnetic Starter • Dust Collection Minimum CFM Required (CFM) 1,100 • Dust Port Outside Diameter (In.) 4 • Motor Power (HP) 3 • Motor Phase 1 • Motor Voltage (V.) 230 only • Recommended Circuit Size (Amps.) 30
