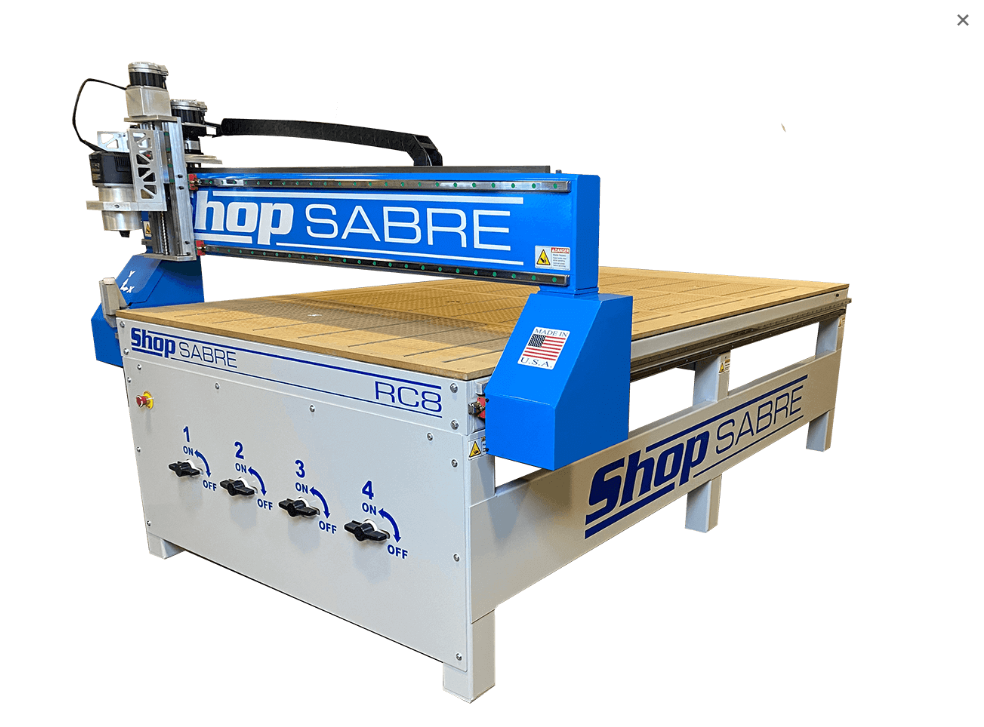

Shop Sabre RC8

• TABLE BED CUT AREA: 51” X 97” WITH ATC OR 55" X 97" WITHOUT ATC • GANTRY CLEARANCE: 8" STANDARD • MAXIMUM TRAVEL SPEEDS ON X & Y: 1000IPM STANDARD • MAXIMUM TRAVEL SPEEDS ON Z: 500IPM • Z TRAVEL: 9” • MACHINE WEIGHT: 2100-2600 LBS • MACHINE FOOT PRINT (INCLUDING GANTRY): 79” X 116” X 69" (78" WITH ATC) • MACHINE STRUCTURE: STEEL TUBE FRAME- WELDED • GANTRY STRUCTURE: LARGE TUBE STEEL WITH TUBE STEEL GANTRY UPRIGHTS • DRIVE SYSTEM: X RACK AND PINION & DUAL Y AXIS RACK AND PINION WITH SHOPSABRE FLOATING DRIVE TECHNOLOGY - Z AXIS BALL SCREW • BEARING SYSTEM: 25MM LINEAR GUIDE RAILS AND BEARINGS WITH QUAD ROLLER SETS AND TRIPLE SEAL BY THK/HIWIN • CONTROLLER: SHOPSABRE WINCNC ADVANCED CONTROLLER • PC SYSTEM: INCLUDED WITH SSD HARD DRIVE AND PCI CONTROLLER BOARD INSTALLED • NETWORKABLE: YES • PC TO PC CONNECTIVITY FOR DIAGNOSIS AND TRAINING: YES • SOFTWARE: VECTRIC • TECH SUPPORT: INCLUDED – LIFE-TIME • CONTROLLER SOFTWARE UPDATES: INCLUDED • MANUFACTURER: UNITED STATES – SHOPSABRE FACILITY –MINNESOTA • FULLY ASSEMBLED• PRE-TESTED• LIFE-TIME TECH SUPPORT (PHONE/EMAIL/PC2PC)
