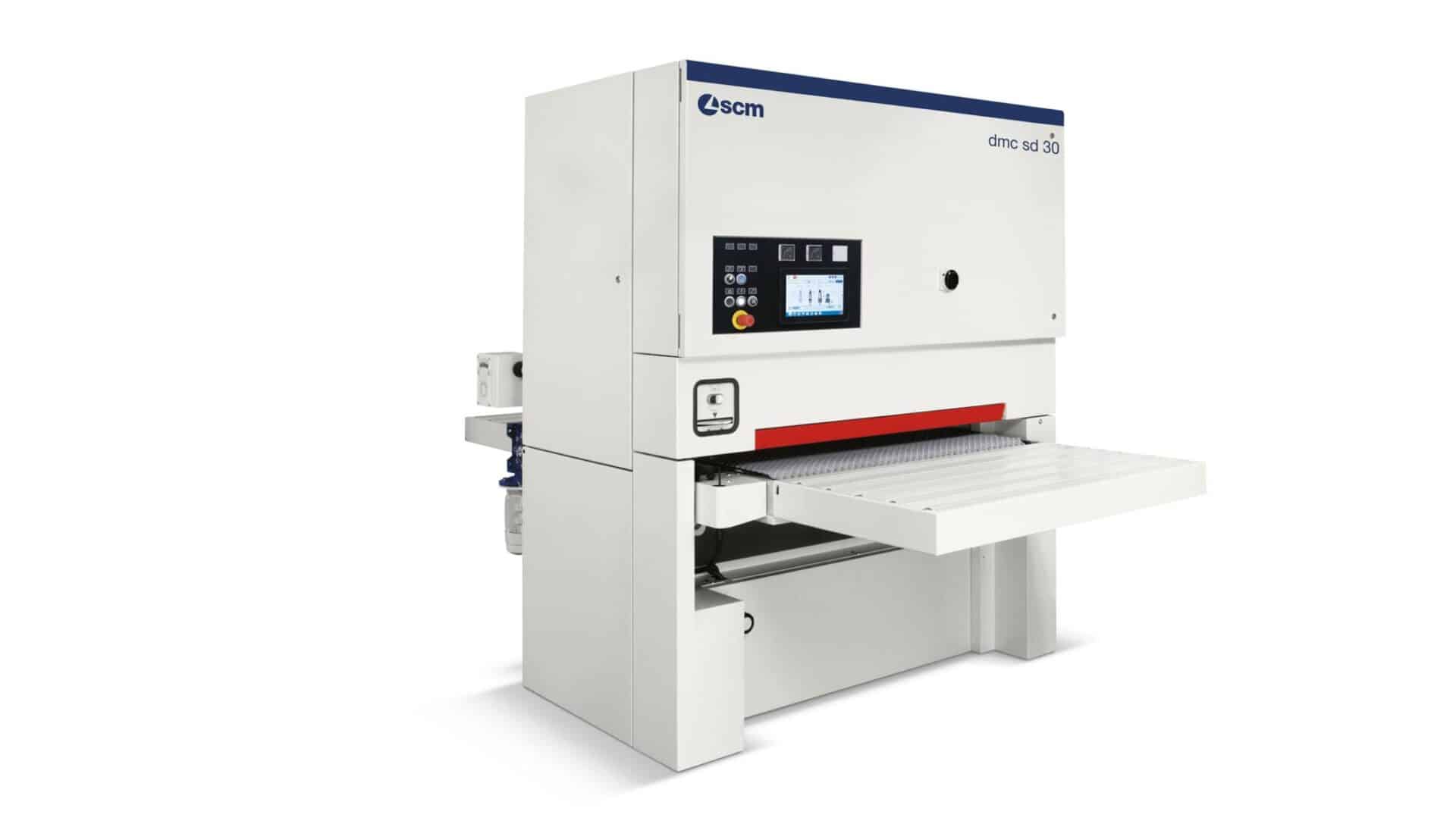

DMC SD 30 RCS 95

About The Machine: • 37″ Wide machine • Combination head with 4.75″ diameter, 85 shore rubber contact drum and 2″ wide platen • 18 HP main motor for sanding unit • 0.7 HP, 2-speed feed motor (15 and 30 FPM) • 6.25″ Maximum workpiece thickness • Uses 37″ x 60″ abrasive belts • Accurate and reliable electronic tracking of abrasive belt • Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt • Powered table positioning with electronic digital readout • Automatic thickness setting device • Rubber coated pressure rolls before and after sanding unit • Infeed and outfeed tables with (2) rollers each • 50 Shore negative profile (waffle pattern) rubber feed mat • Automatic emergency stop of machine for: Sanding belt breaking, tensioning, overtracking; Absence of compressed air; overload on main motor • (2) Platens provided – (1) Rigid, (1) Soft • Air requirements: 6 Bar (88 PSI) • Dust requirements: 900 CFM • Electrical requirements: 54 Amps @ 230 V, 3 Phase
