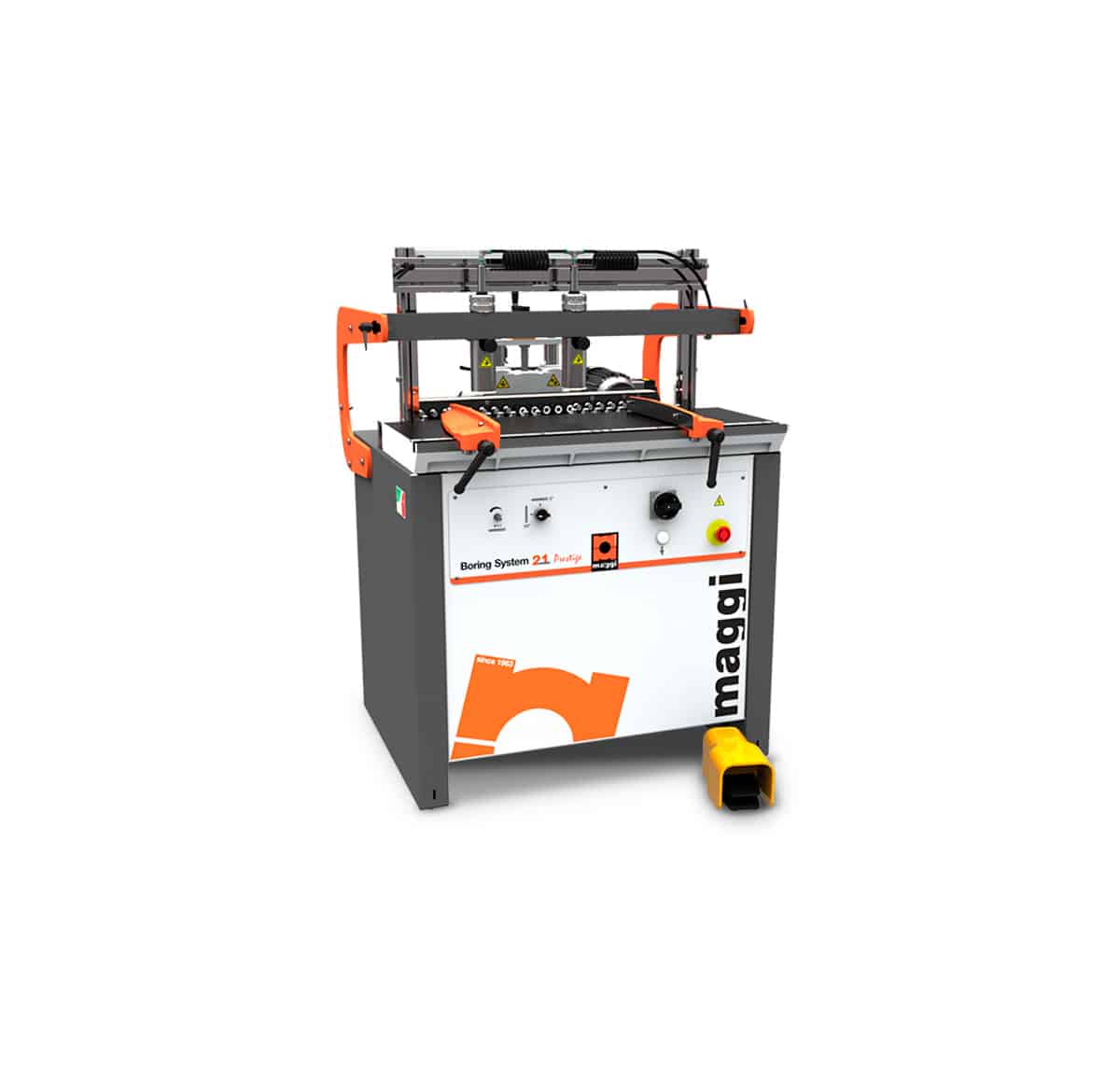

Maggi System 21

The Maggi System 21 Prestige Boring Machine provides a 21 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle. Accurate positioning of the boring unit to the table with digital readout 0 to 2.5″ adjustable drilling depth with patented spiral setting device (2) Patented quick release material clamps with auto-setting to firmly hold material to table Powerful 2 HP motor 34″ x 13″ cast iron table Cast iron side fences with ruler and magnifying glass Mirror imaging device to ensure quick and accurate set-up of the side fences 120″ back fence with (2) stops – Maximum stroke 300 mm (12″) Fixed stop at 37 mm for hinges Foot actuated pneumatic clamps and drill cycle Uses 10 LH (red) and 11 RH (black) boring bits Includes: Magnetic starter with overload protection and (21) quick change chucks Dust Outlet: 3″ Net weight: 605 lbs Dimensions: 40.5″ x 40.5″ x 50″ Tall Crated Dimensions: 42.2″ x 37.4″ x 40.5″ Tall Crated Weight: 685 lbs
