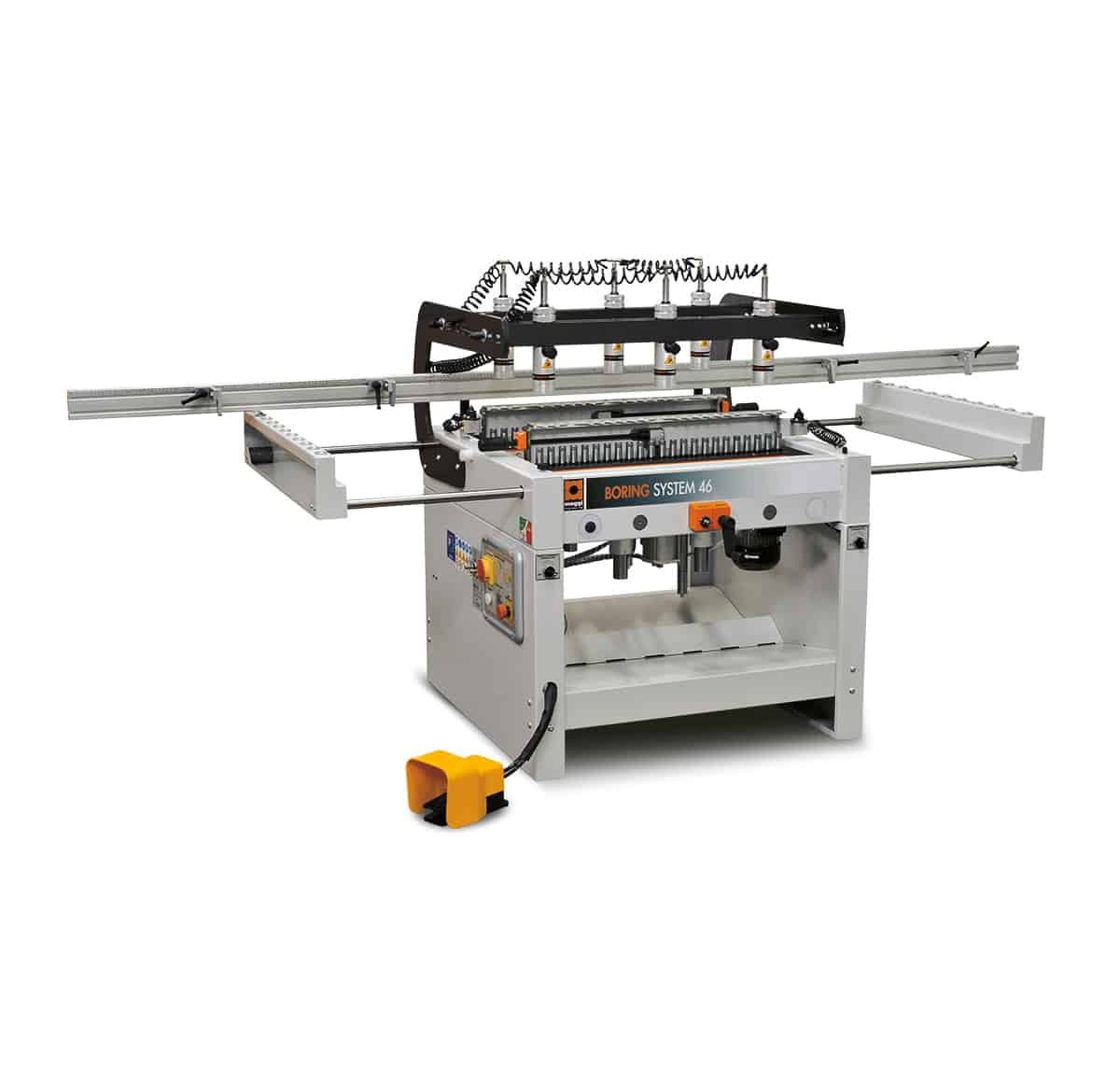

Maggi System 46 Double Row Line Boring Machine

• (2) 23-Spindle heads on 32 mm centers • Distance between first and last spindle center of each head is 27-23/32″ (704 mm) • Front end adjustment for quick and easy set-up • (2) 2 HP 3,500 RPM motors • Max. boring depth is 2-1/16″ (55 mm) • Side depth counter system • Extractable 400 mm support rollers for long panels • Maximum distance between heads is 25-19/32″ (650 mm) • Minimum width is 5-1/8″ (130 mm) • Distance from fence to first head is 15 mm min. to 494 mm max. • Distance from fence to second head is 160 mm to 639 mm max. • Complete with: 46 quick change chucks, 10′ extension fence with (4) flip-stops and (2) pneumatic reference pins • (6) Patented safety clamps • This machine can be used for single or double row line drilling • Uses 24 LH (red) and 22 RH (black) boring bits • Working air pressure 94 psi • Net weight: 820 lbs • Crated weight: 940 lbs
