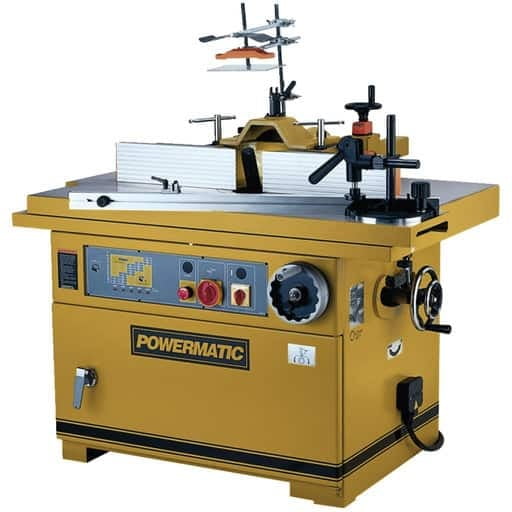

Powermatic TS29

• Dust Collection Minimum CFM Required : 800 • Dust Port Diameter (OD/in.) : 5 (dual ports) • Electrical Controls – Magnetic Starter : 24V Magnetic • Fence Size (L x H/in.) : 46 x 5 • Fence Travel (Major and Minor/in.) : 5-3/8 and 3-5/8 • Height (in): 53 • Length (in): 51 • Maximum Diameter Cutter Above Table (in) : 12 • Maximum Diameter Cutter Below Table (in) : 9 • Motor HP : 7-1/2HP • Motor Phase : 3PH • Motor Voltage : 230/460V • Net Weight (lb): 1,100 • Overall Dimensions : 51 x 44 x 53 • Part Number : 1791284 • Prewired : Prewired 230V • Reversible : Yes • Router Bit Collet Diameter (in) : 1/4 and 1/2 • Slide Table Size (in) : 11-1/4 x 51-1/4 • Spindle Diameter (in) : 3/4, 1, and 1-1/4 • Spindle Size Under Nut (in) : 3/4 Spindle – 3-1/2, 1 Spindle – 6-1/4, 1-1/4 Spindle –6-1/4 • Spindle Speed (RPM) : 3000, 4000, 6000, 8000, and 10,000 • Spindle Travel (in) : 7 • Table Inserts : one tilting, two straight • Table Size (in) : 51-1/2 x 33-1/2 • Table Travel (in) : 49-1/4 • Tilting Spindle (deg.) : 5° back, 45° forward • Width (in): 44 • Shipping weight 1,280 lb.
