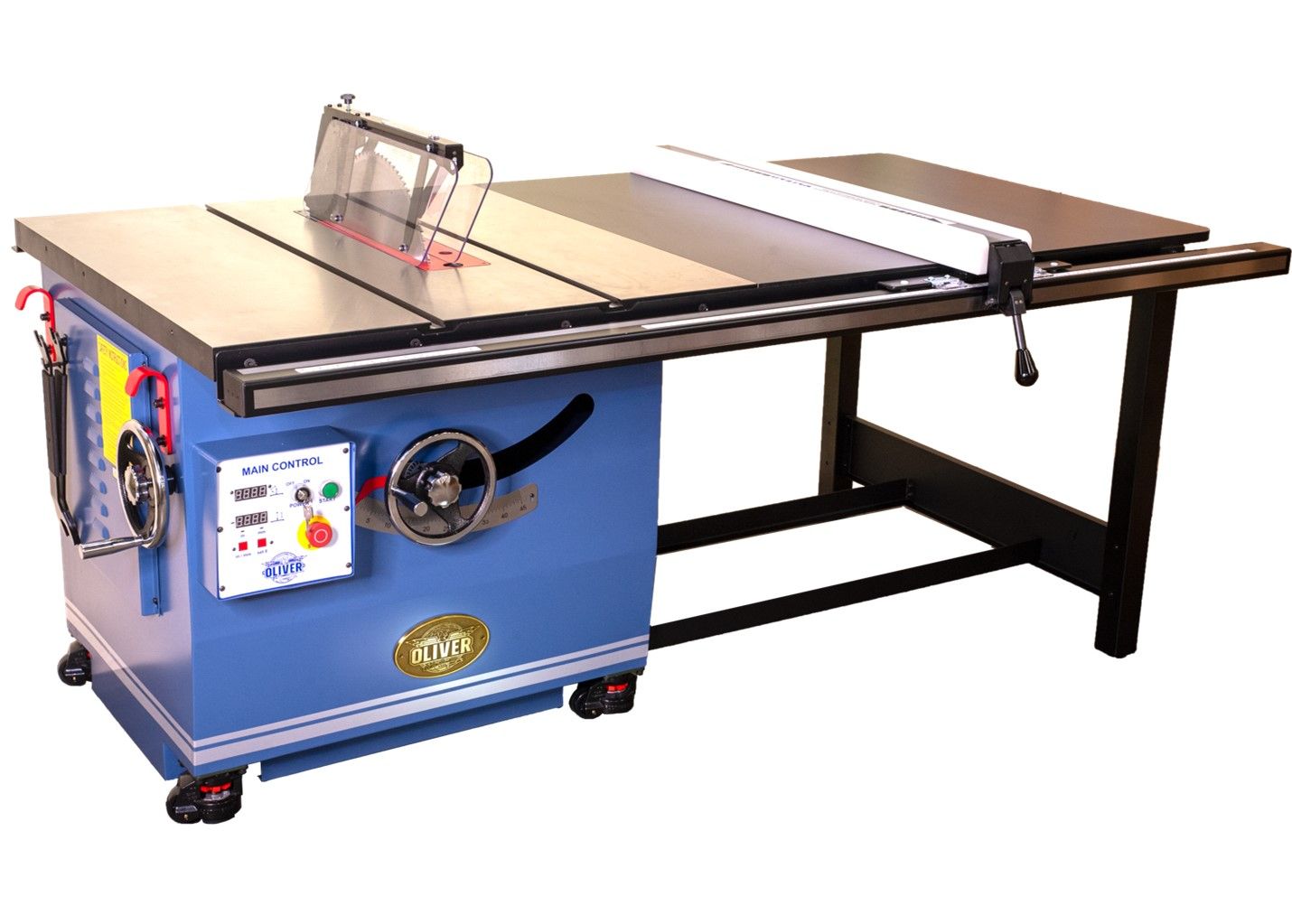

Oliver 16" Table Saw

Model Number 4065.003 Ph 3Ph Rail Length w/Side Table w/52" Rail Stock Number 4065.003 Stock No. (52") 4065.003 Stock No. (7.5HP, 3Ph) 4065.003 Blade Diameter 16" Arbor Diameter 1” Blade Tilt Left Arbor Speed 3,800 RPM Maximum Depth of Cut at 90° 6-1/8" Maximum Depth of Cut at 45° 4-3/8" Maximum Width of Dado 11/16” Dado Diameter (Optional) 12” Max Dado Size: 12” Maximum Cut to Right of Blade 52” Rail Maximum Cut to Left of Blade 10” Maximum Rip to Right of Blade: 52” Dust Port Diameter 4" Table Dimensions w/o Extensions 35-13/16“(L) x 39”(D) Wing Size 42-1/2”(L) x 39”(D) Table Dimensions 78-5/16” (L) x 39”(D) Table Height 44" Motor 3PH, 220V Prewired. Optional 440V Available. Motor 3Ph 10HP Footprint 74” (L) x 39”(D) Overall Dimensions 82“(L) x 48”(D) x 44”(H) Net Weight 814 lbs Gross Weight 1,092 lbs.
