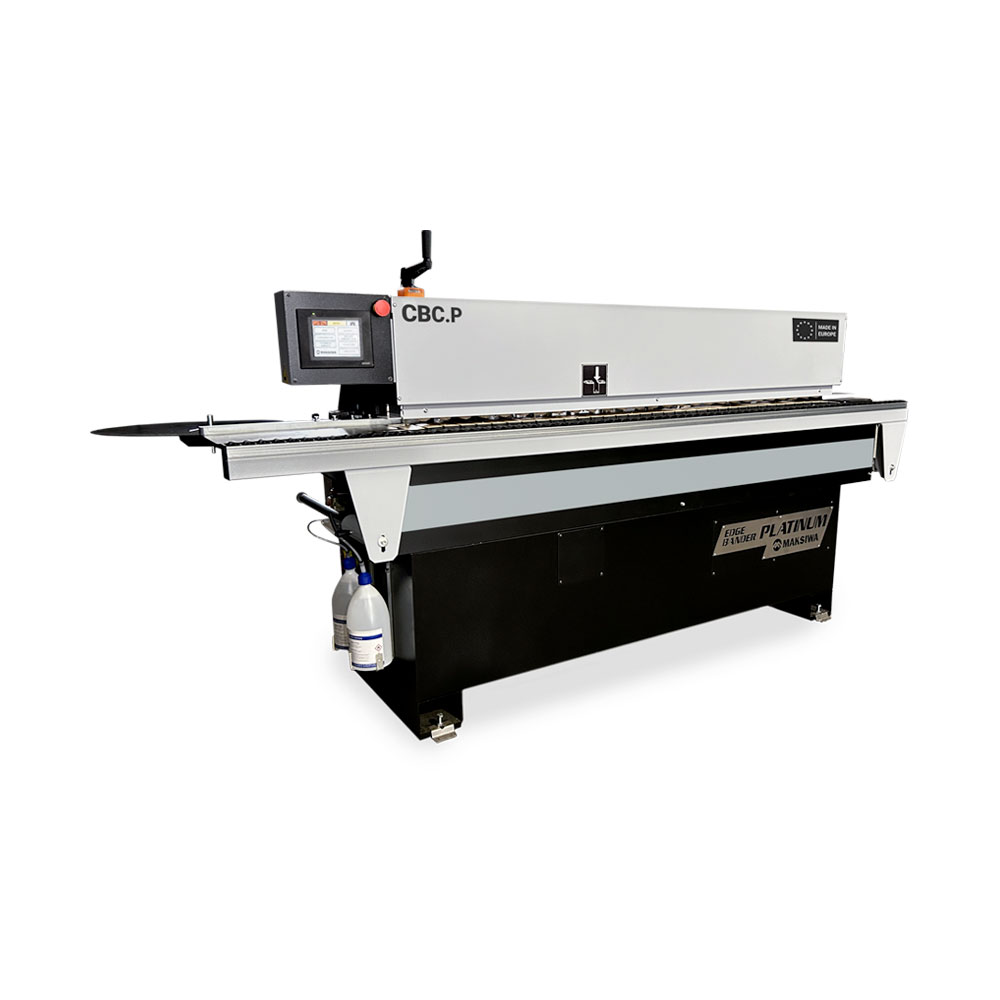

Maksiwa Edgebander CBC.P
Non-returnable
$28,500.00
CBC.P SPECIFICATIONS Automatic Feeding speed 23 ft/min Panel thickness Min/Max 13/32” - 1 31/32” Max Pre-milling Height 1” Edgebanding thickness 0.0157" - 0.118" Glue Pot Capacity 3.3lbs Max Edgebanding Height 2" Minimum panel width 3" Minimum panel length 7 7/8" Extendable Panel Support Rail Length 102" Extension table Max Width 54" Size of Dust Collector Ports 6" Minimum Dust Collection Requirements 1236 CFM Air Pressure Requirement 13.4 SCFM @ 87PSI Edgebanding coil Support Diameter 59" Recommend Glue Temperature Range 356°F - 410°F Max. machine dimensions (LxWxH) 112”x 34”x 49” Machine dimensions w/ Caster Wheel (LxWxH) 112"x 46-1/4"x 56" Net weight 1719 LBS Shipping dimensions (LxWxH) 86” x 36” x 57” Glue Type Granulated Hot-Melt EVA / PUR Electrical Information 1 Phase 220V 30 Amps 60Hz 1 Phase 220V 30 Amps 60Hz Sound Rating 80 dB
