Flat Table CNC Routers

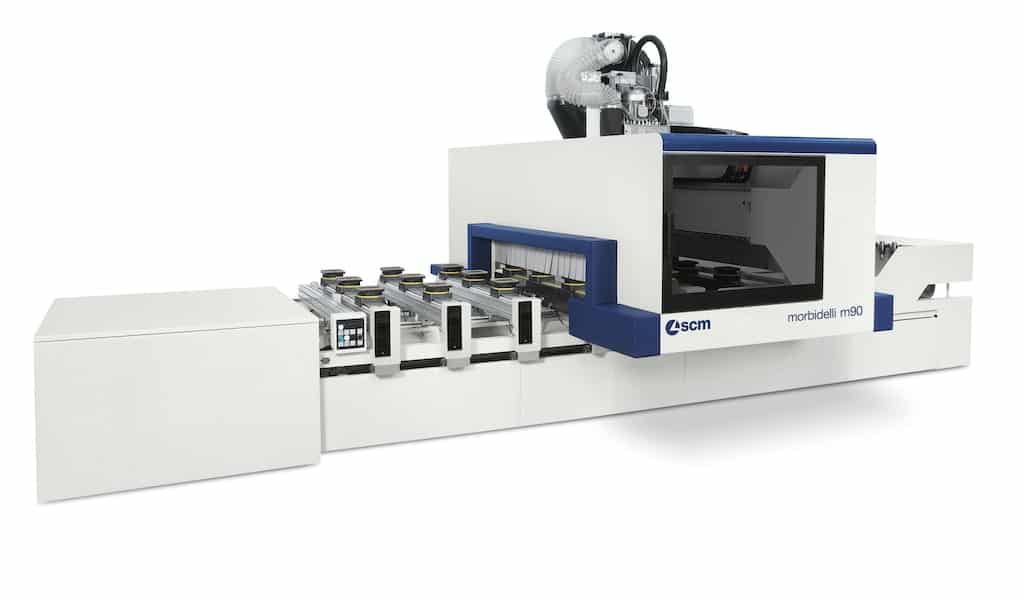

Techical Data Working areas X-Y axes dimensions mm 3115 x 1320 Y-axis panel clearance mm 1600 Axes Vectorial speed “Pro-Space” m/min 56 Z-axis panel clearance mm 180 Drilling unit Independent vertical spindles (up to) no. 21 Independent horizonal spindles (up to) no. 10 Rotation speed (max.) rpm 8000 Integrated blade in X, diameter mm 125 Routing unit Motor power (max.) kW (hp) 14 (19) Rotation speed (max.) rpm 24000 Available tools on tool changers (up to) places 25

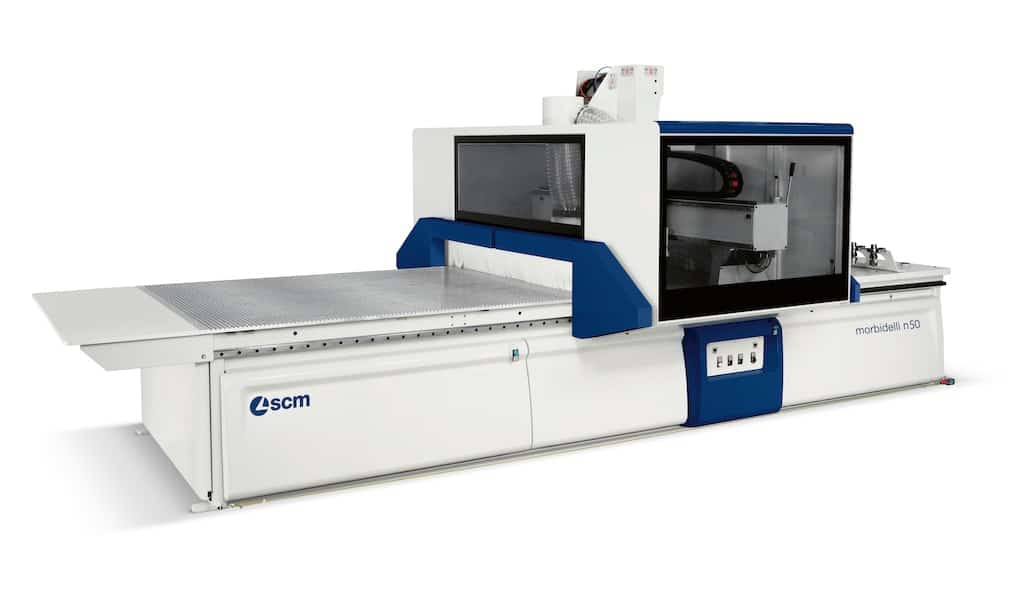

Technical Data 4’x’8 Flat Table CNC SAFETY Safety Pro-SPACE AXES MOVEMENT X Axis Positioning Speed 25 Meters/Min (984 Inches/Min) Y Axis Positioning Speed 25 Meters/Min (984 Inches/Min) Automatic Lubrication Yes Drive System X/Y = Helical Rack & Pinion, Z = Ball Screw Dual X-Axis Servos No WORKTABLE X & Y 2468 x 1255 mm (8′ x 4′) Panel Passage 150mm (5.9″) **(100 mm Drilling) Z Axis Stroke 250 mm (9.84″) Number of Vacuum Zones 2 Zones Available Work Areas A-D, E-H Type of Work Table Alumnim Grid Table Reference Pins Std Pins (A,D,E,H) Vacuum Pumps One (1) Becker 300cm/h Pump Vacuum Cups / Clamps None ROUTER HEAD Router Axes 3 Router Spindle HP 13 HP Router Router Spindle Speeds 1,500-24,000 rpm Router Cooling System Air Cooled Aggregate-Ready No Air Blowers for Spindle Yes Measuring Device for Panel Thickness No Measuring Device for Tool Length Yes Dust Hood Manual Setting (4 Positions) Automatic Tool Changer TR11 + Long Tools Mgmt DRILL UNIT/PIGGYBACK Type of Drill Unit F12 Vertical Drills 12 Horizontal Drills 0 Drill Unit Saw Blade No Drill Unit RPM 2,000-8,000 Drill Unit Dedicated Inverter Inverter Shared with Router Dedicated Z2 Axis No Piggyback Unit None AUTOMATION Oflload Rake (Std, NC) Yes Loading Cups No Loading Table No Offload Conveyor No Side Fences No Flow Direction N/A MISCELLANEOUS Transformer 208V, 230V, 460V CFM Required *Estimated 3535CFM Max Power Required *Estimated Compressed Air Requirement *Estimated Additional Options: Cabinet AC Addtl Maestro USB Key Ventilation on Base SOFTWARE/CONTROL PC Console Eye-M PRO OS Windows 10 – 64 bit Pendant Tecpad Active Active Maestro (Basic (3+2), Nest, 3D) Basic (3+2)+ Rect Nesting Connect Connect: 1yr Subscription

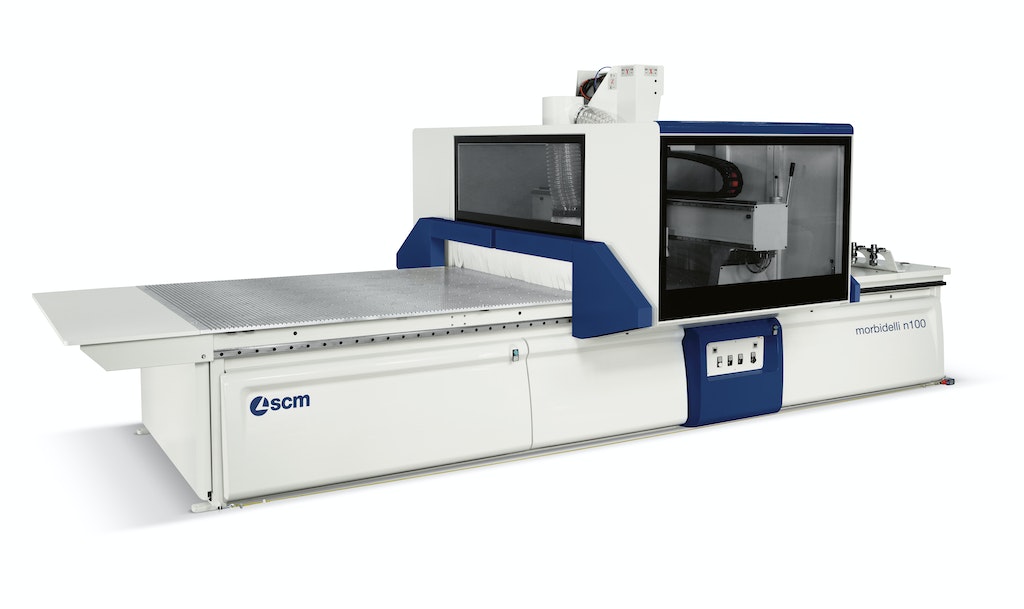

Tech Specs: 5’x 12′ Flat Table CNC Axes Vectorial speed X-Y axes 35 m/min Z axis stroke 250 mm Z axis panel passage 150 mm Routing unit Motor power (max.) 15 (21) kW (hp) Rotation speed (max.) 24000 rpm Available tools on tool changer (max.) 15 places Drilling unit Independent vertical spindles (max.) 12 n. Independent horizontal spindles (max.) 6 n. Rotation speed (max.) 8000 rpm

Main Features 4’x8′ CNC Router Reinforced base and innovative one-piece frame High Precision, High Load Prismatic Bearing Guides A.C. Servo Motors X, Y & Z Axes Solid State Inverter Controls Router RPM High Performance Aluminium Multifunction Worktable Hiteco Electrospindle 9.5kW (13HP) Pre-arrangement for “Hiteco” Aggregates F7 Drill Head Drilling Unit Managed by Inverter TR 8 Position Tool Changer Tool Touch Probe Manual Lubrication Pump One (1) 300 Cubic Meter/Hour Vacuum Pump Wired Remote Control Console with Integrated PC “Eye-M “
