Wide Belt Sanders

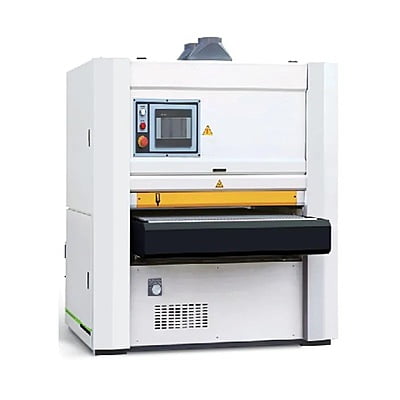

About this machine: 37″ Wide machine Combination head with 4.75″ diameter, 85 shore rubber contact drum and 2″ wide platen 18 HP main motor for sanding unit 0.7 HP, 2-speed feed motor (15 and 30 FPM) 6.25″ Maximum workpiece thickness Uses 37″ x 60″ abrasive belts Accurate and reliable electronic tracking of abrasive belt Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt Powered table positioning with electronic digital readout Automatic thickness setting device Rubber coated pressure rolls before and after sanding unit Infeed and outfeed tables with (2) rollers each 50 Shore negative profile (waffle pattern) rubber feed mat Automatic emergency stop of machine for: Sanding belt breaking, tensioning, overtracking; Absence of compressed air; overload on main motor (2) Platens provided – (1) Rigid, (1) Soft Air requirements: 6 Bar (88 PSI) Dust requirements: 900 CFM Electrical requirements: 54 Amps @ 230 V, 3 Phase

About The Machine: • 37″ Wide machine • Combination head with 4.75″ diameter, 85 shore rubber contact drum and 2″ wide platen • 18 HP main motor for sanding unit • 0.7 HP, 2-speed feed motor (15 and 30 FPM) • 6.25″ Maximum workpiece thickness • Uses 37″ x 60″ abrasive belts • Accurate and reliable electronic tracking of abrasive belt • Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt • Powered table positioning with electronic digital readout • Automatic thickness setting device • Rubber coated pressure rolls before and after sanding unit • Infeed and outfeed tables with (2) rollers each • 50 Shore negative profile (waffle pattern) rubber feed mat • Automatic emergency stop of machine for: Sanding belt breaking, tensioning, overtracking; Absence of compressed air; overload on main motor • (2) Platens provided – (1) Rigid, (1) Soft • Air requirements: 6 Bar (88 PSI) • Dust requirements: 900 CFM • Electrical requirements: 54 Amps @ 230 V, 3 Phase

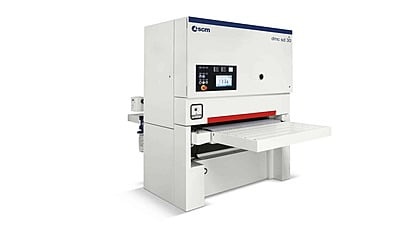

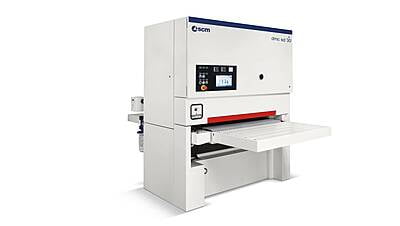

• Rubber coated pressing rollers before and after working unit • 1 HP two speed feed unit. Feed speeds set at 15 or 30 feet per minute • Y-Delta two-stage reduced voltage starter on main motor • 2 roller Infeed and outfeed table extensions • Automatic Electronic Table Positioning Device • Adjustable sanding drum and pad position for micro precision adjustment • Electronic digital thickness readout of work table position • Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability • Electronic tracking of abrasive belt • Automatic feed mat tracking • Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt • Front and rear emergency stop buttons • Automatic emergency stop of machine for: - sanding belt breaking, tensioning, over tracking - opening of the access door to the operating groups - absence of compressed air - overload on main motors • Amperage meter for main motors allows maximum utilization of available horsepower • Main disconnect switch with the ability to be locked out by padlock • In feed flexible steel hold down, and anti-kickback plate • 50 shore, negative profile (waffle style) rubber feed mat • LOGIC 50 K Electronic Programmer for timing/anti-dubbing • of the pad

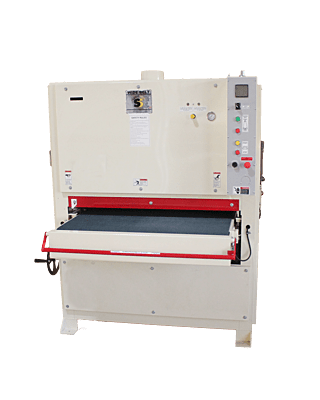

•Wide Belt Sanders solve the most tedious challenge that woodworkers face!, the 37X60 Wide Belt Sander is built to last, including the following as standard equipment on this machine. •Standard Equipment: -Photo electric belt tracking. -2 1/2″ removable platen. -2 height adjustment indicators. -5 emergency stops. -2 rubber-covered pinch rollers 1 1/2″ OD. -Rubber-covered contact roller 4 1/4″ OD with 13/8″ drive bearing. -2 machined idler rollers 2 3/16″ OD with 3/4″ bearings. -Conveyor table set on four 3/4″ acme-threaded jackscrews -Pneumatic belt tensioning. -3 year warranty. -6″ internal dust chute. -3/4 Hp conveyor motor

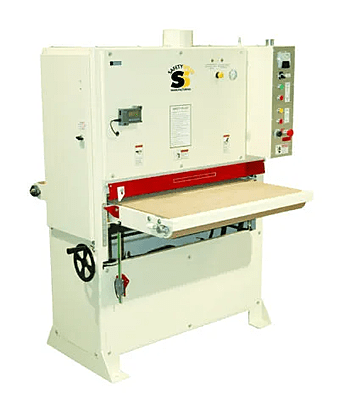

• The 43″ Wide Belt Sander features a 75” belt, providing 25% more abrasive surface than the smaller 60” belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time. • Standard Equipment - Photo electric belt tracking. - Pneumatic belt tension. - 2 ½” graphite covered felt pad and adjustable platen. - 2 rubber-covered pinch rollers 2 ½” OD. - 2 machined idler rollers 4 ¼” OD with 1″ bearings. - Rubber-covered contact roller 5 ¼” OD with 1 ⅝” drive bearing. - Conveyor table set on four 1″ acme thread jackscrews. - 2 height adjustment indicators. - 6″ internal dust chute. - 5 emergency stops. - 3 year warranty.
