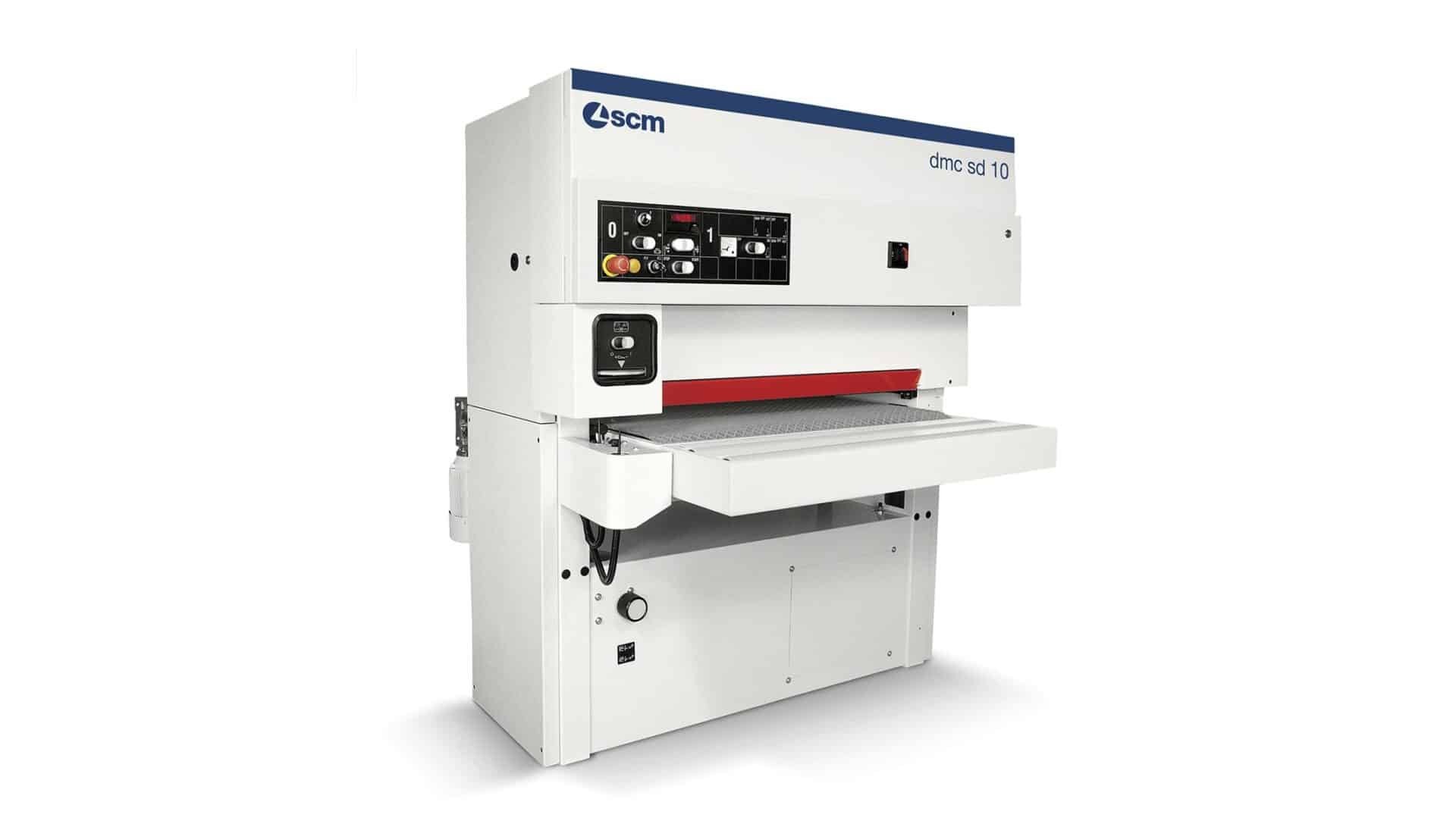

DMC SD 10 CS 95

About this machine: 37″ Wide machine Combination head with 4.75″ diameter, 85 shore rubber contact drum and 2″ wide platen 18 HP main motor for sanding unit 0.7 HP, 2-speed feed motor (15 and 30 FPM) 6.25″ Maximum workpiece thickness Uses 37″ x 60″ abrasive belts Accurate and reliable electronic tracking of abrasive belt Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt Powered table positioning with electronic digital readout Automatic thickness setting device Rubber coated pressure rolls before and after sanding unit Infeed and outfeed tables with (2) rollers each 50 Shore negative profile (waffle pattern) rubber feed mat Automatic emergency stop of machine for: Sanding belt breaking, tensioning, overtracking; Absence of compressed air; overload on main motor (2) Platens provided – (1) Rigid, (1) Soft Air requirements: 6 Bar (88 PSI) Dust requirements: 900 CFM Electrical requirements: 54 Amps @ 230 V, 3 Phase
