Jointers

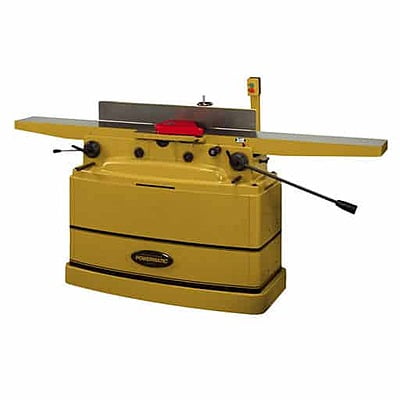

The Powermatic 8″ Parallelogram Jointer has an extra long 82″ bed length for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of tough duty. The 1/8″ depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature. This jointer features a Powermatic controlled chip 3-knife cutterhead for a safe, smooth cut every time. Powerful 2HP or 3HP motors are totally enclosed in a heavily constructed steel stand providing plenty of power for the most demanding jobs. Features: • A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. • The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment, insuring the table remains perfectly parallel, even after years of tough duty. • The 1/8″ depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature. • Powermatic controlled chip 3-knife cutterhead gives a safe, smooth cut every time. • Powerful 2HP, 1PH motor is totally enclosed in a heavily constructed steel stand.

• Motor: 2HP, 1PH, 230V, 9A • Cutterhead Speed (RPM): 7,000 • Cutting Capacity (W x D) (In.): 8 x 1/2 • Table Size (L x W) (In.): 73 x 8-1/2 • Table Height from Floor (In.): 32 • Infeed Table Length (In.): 35-1/4 • Outfeed Table Length (In.): 35-1/2 • Fence Size (L x H) (In.): 38 x 4-3/4 • Fence Tilt (Deg.): 45 Forward, 45 Backward • Fence Positive Stops (Deg.): 45, 90, -45 • Dust Collection Minimum CFM Required (CFM): 450 • Dust Port Outside Diameter (In.): 4 • Recommended Circuit Size (Amps.): 20V

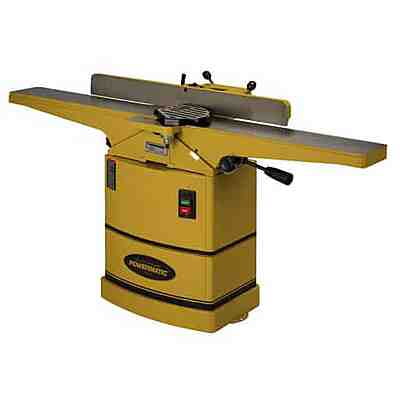

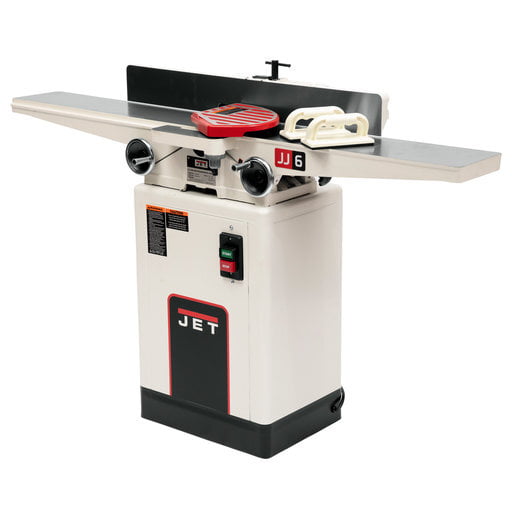

• 4″ port for dust collection • 1HP TEFC Motor • Two push blocks • Dust collection port • Cutterhead guard • Industrial push-button switch • Cutterhead Speed (RPM) : 6000 • Cutting Capacity (W x D/in) : 6 x 1/2 • Dust Collection Minimum CFM Required : 800 • Dust Port Diameter (OD/in) : 4 • Fence Positive Stops (deg.) : 45 left, 90, 45 right • Fence Size (L x H/in) : 38 x 4 • Fence Tilts (deg.) : 45 left, 45 right • Height (in) : 37.5 • Infeed Table Length (in) : 32-1/2 • Length (in) : 66 • Model Number : 54 • Motor Amps : 13/6.5 • Motor HP : 1HP • Motor Phase : 1PH • Motor Voltage : 115/230V • Net Weight : 328 pound • Outfeed Table Length (in) : 32-1/2 • Overall Dimensions : 66 x 24 x 37-1/2 • Part Number : 1791317K • Prewired : Prewired 115V • Table Height (in) : 31-1/2 • Table Size (L x W/in) : 66 x 7-1/4 • Width (in) : 24 • Shipping weight 328 lb.

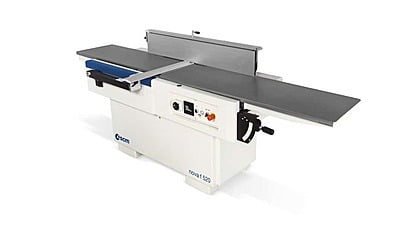

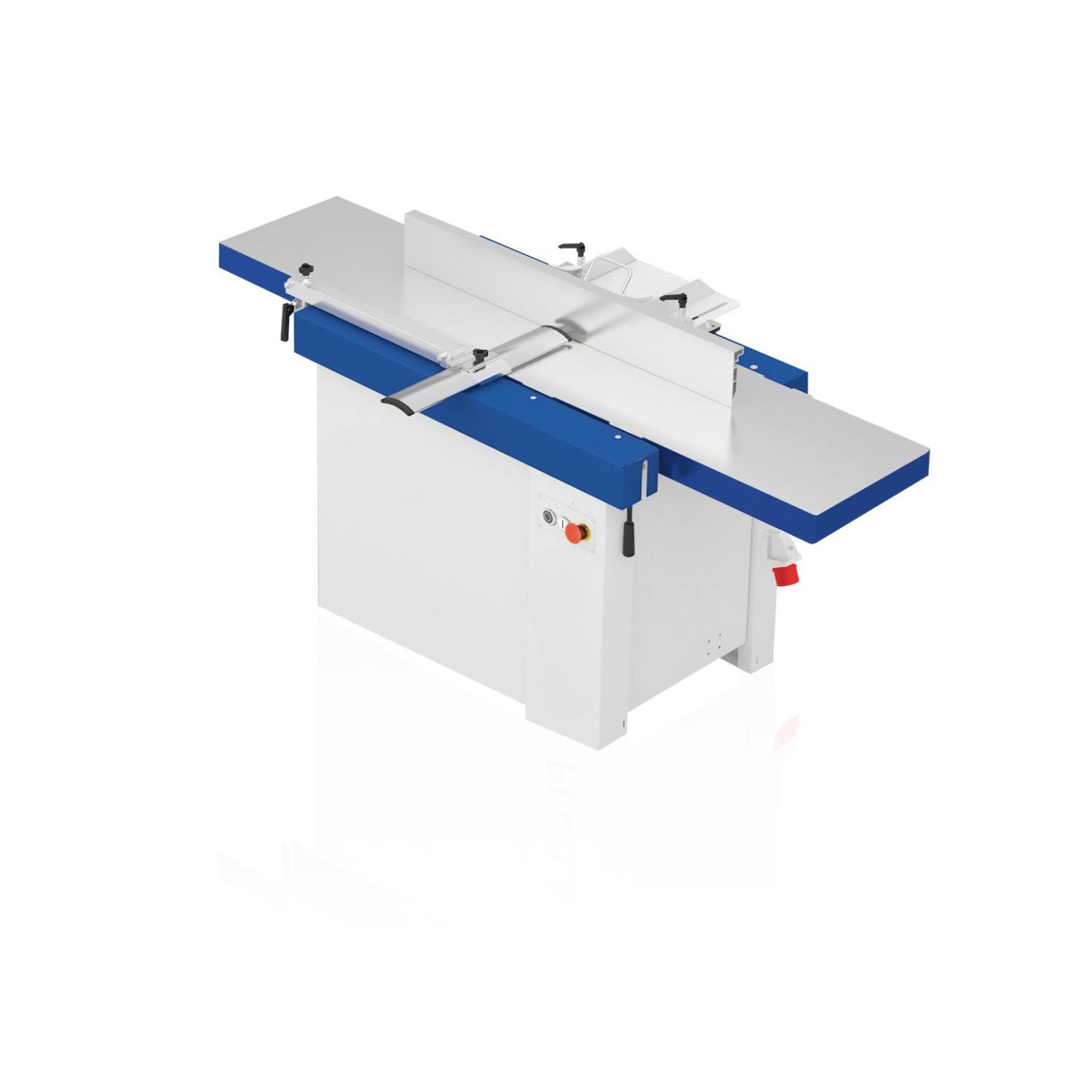

The Nova F 520 T is a heavy duty, long bed 20” jointer designed to meet the needs of the most demanding environments. It features cast iron tables, a tilting fence and a quick change Tersa cutterhead.

Technical data L’invincibile f 7 Cutterhead working width 520 / 20 mm / inches Cutterblock diameter / n° of standard knives 120/4 mm/n° Dimensions of standard knives 520 x 35 x 3 mm With XYLENT Spiral Helical Cutterhead: 120/84 mm/n° Cutterblock diameter / n° of standard knives 15 x 15 x 2.5 mm Dimensions of standard knives Jointer bed length 3008 / 118 mm / inches Three-phase motor 11 Hp Max. stock removal 8 mm

Specifications Cutterhead Speed: 5000 RPM Cutting Capacity: 11-3/4" W x 3/4" D Dust Collection Minimum: 800 CFM Dust Port: 4" Motor: 1PH, 3HP, 230V Knives: 42 Dedicated 30 Amp Breaker recommended Helical Cutterhead

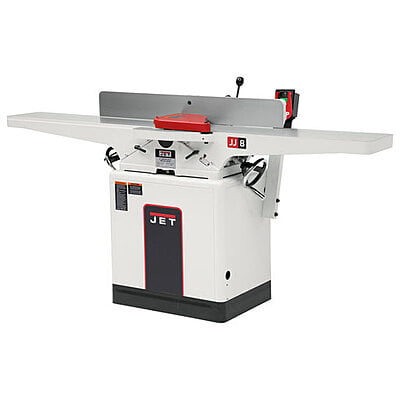

SPECIFICATIONS: Number of Knives 3 Standard Knife Size (L x W x T) (In.) 8 x 11/16 x 1/8 Cuts Per Minute 21;000 Cutterhead Diameter (In.) 3-1/16 Cutterhead Speed (RPM) 7;000 Cutting Capacity (W x D) (In.) 8 x 1/2 Table Size (L x W) (In.) 82 x 8 Table Height from Floor (In.) 31-5/16 Infeed Table Length (In.) 44 Outfeed Table Length (In.) 38 Rabbeting Capacity (In.) 1/2 Fence Size (L x H) (In.) 38-3/16 x 4-3/4 Fence Tilt (Deg.) 45 Forward; 45 Backward Fence Positive Stops (Deg.) 45; 90; -45 Dust Collection Minimum CFM Required (CFM) 600 Dust Port Outside Diameter (In.) 4 Motor Power (HP) 2 Motor Phase 1 Motor Voltage (V.) 230 Only Motor Current (Amps) 9 Recommended Circuit Size (Amps.) 20

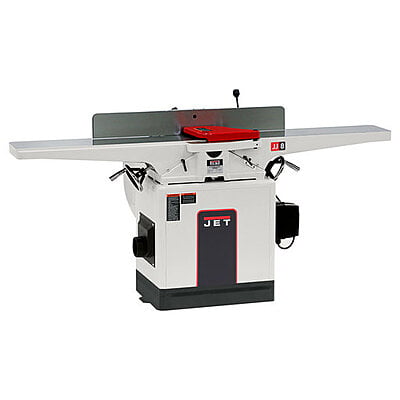

Specifications: Motor: 2HP, 1PH, 230V, 9Amp Number of Knives: 3 Standard Knife Size (L x W x T) (In.): 8 x 11/16 x 1/8 Cuts Per Minute: 21,000 Cutterhead Diameter (In.): 3 Cutterhead Speed (RPM): 7,000 Cutting Capacity (W x D) (In.): 8 x 1/2 Table Size (L x W) (In.): 73 x 8-1/2 Table Height from Floor (In.): 32 Infeed Table Length (In.): 35-1/4 Outfeed Table Length (In.): 35-1/2 Rabbeting Capacity (In.): 1/2 Fence Size (L x H) (In.): 38 x 4-3/4 Fence Tilt (Deg.): 45 Forward, 45 Backward Fence Positive Stops (Deg.): 45, 90, -45 Dust Collection Minimum CFM Required (CFM): 600 Dust Port Outside Diameter (In.): 4 Recommended Circuit Size (Amps.): 2

Specifications: Motor: 2HP, 1PH, 230V, 9A Number of Knives: 54 Helical Knife Size (L x W x T) (In.): 15 x 15 x 2.5 Cutterhead Speed (RPM): 7,000 Cutting Capacity (W x D) (In.): 8 x 1/2 Table Size (L x W) (In.): 73 x 8-1/2 Table Height from Floor (In.): 32 Infeed Table Length (In.): 35-1/4 Outfeed Table Length (In.): 35-1/2 Fence Size (L x H) (In.): 38 x 4-3/4 Fence Tilt (Deg.): 45 Forward, 45 Backward Fence Positive Stops (Deg.): 45, 90, -45 Dust Collection Minimum CFM Required (CFM): 450 Dust Port Outside Diameter (In.): 4 Recommended Circuit Size (Amps.): 20V

Rack-and-pinion adjustable cast iron fence assembly for smooth fence positioning without play. 12"x84" precision ground cast iron table surface for any heavy duty work. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. Parallelogram design for close table- to - cutterhead proximity and fast depth of cut adjustment.

Built-in 4 dust chute connects to your collection system for efficient dust/chip disposal Fence adjustment levers are conveniently located in the center of the fence for quick access Powerful 2 HP motor easily handles the toughest jointing tasks Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability Built-in rabbeting ledge adds versatility Motor Power (HP): 2 Dust Port Outside Diameter (In.):4 Dust Collection Minimum CFM Required (CFM): 350 Table Height from Floor (In.): 31-1/4 Fence Size (L x H) (In.): 38-1/2 x 4-3/4 Table Size (L x W) (In.): 72 x 9

Specifications: Product: Jointer Style: Floor Standing Type: Helical Head Motor Power: 2 HP Motor Phase: 1 Motor Amps: 12A Motor Voltage: 230 V only, 60 Hz Cutting Capacity (W x D): 8" x 1/2" Cutterhead Speed: 5500 RPM Number of Knives: 36 knife inserts Table Surface (W x L): 9" x 72" Table Height from Floor: 31-1/4" Fence (W x L): 4-3/4" x 38-1/2" Knife Size (L x W x T): 0.59" x 0.59" x 0.10" Fence Tilt: 45ºL, 45ºR Positive Stops: 45ºL, 90º, 45ºR Dust Port - Outside Diameter: 4" Dust Collection Minimum CFM Required: 350 CFM Net Weight - Jointer and Stand (approx.): 379 lbs.

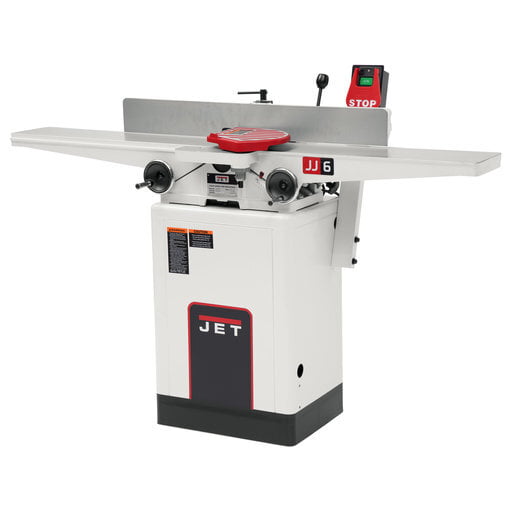

Specifications: Product: Jointer Type: Quick-Set Style: Floor Standing Motor Power: 1 HP Motor Phase: 1 Ph Motor Voltage: 115/230V Motor Amps: 13A/6.5A Prewired Voltage: 115V Cutterhead Speed: 6000 RPM Number of Knives: 3 Standard Knife Size (L x W x T): 6-1/16" x 3/4" x 5/64" Cutting Capacity (W x D): 6-1/16" x 1/2" Rabbeting Capacity: 1/2" Rabbeting Ledge: 3-1/8" x 8-3/4" Table Size (L x W): 56" x 7-3/8" Table Height: 31-1/4" Fence Size (L x H): 32-3/4" x 3-7/8" Fence Tilts: 45° R, 45° L Fence Positive Stops: 45° R, 90°, 45° L Dust Port - Outer Diameter: 4" Dust Collection Minimum CFM Required: 350 Net Weight: 237 lbs.

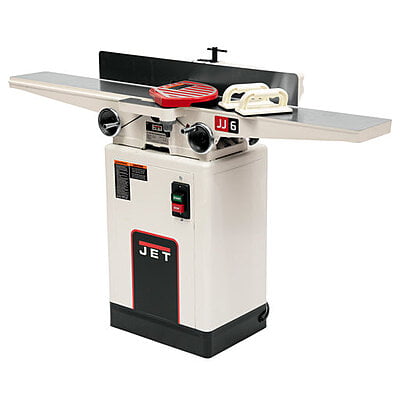

pecifications: Product: Jointer Type: Helical Head Style: Floor Standing Motor Power: 1 HP Motor Phase: 1 Ph Motor Voltage: 115/230V Motor Amps: 13A/6.5A Prewired Voltage: 115V Cutterhead Speed: 6000 RPM Number of Knives: 27 four-sided inserts Number of Rows in Cutterhead: 4 Knife Size: 15 x 15 x 2.5T mm Cutting Capacity (W x D): 6" x 1/2" Table Size (L x W): 56" x 7-3/8" Table Height: 31-1/4" Fence Size (L x H): 32-3/4" x 3-7/8" Fence Tilts: 45° R, 45° L Fence Positive Stops: 45° R, 90°, 45° L Dust Port - Outer Diameter: 4" Dust Collection Minimum CFM Required: 350 Net Weight: 237 lbs.

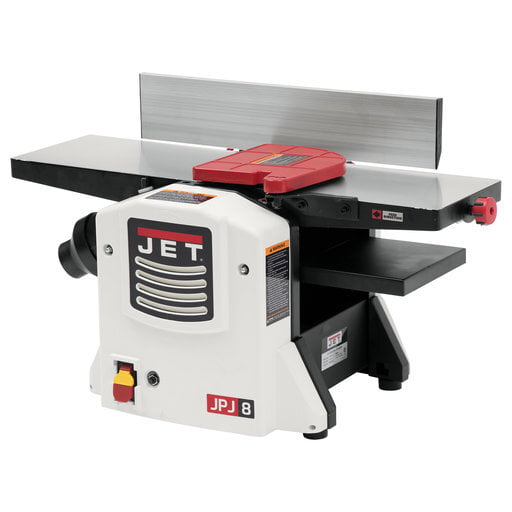

Specifications: Product: Planer/Jointer Combo Type: Straight Knife Style: Benchtop Motor Amps: 13A Motor Voltage: 120V Motor Cycle: 60 Hz Prewired Voltage : 115 V Cutterhead Speed : 9000 RPM Number of Knives (Standard) : 2 Standard Knife Size (L x W x T) : 8.25" x 0.65" x 0.06" Jointer Table Size (L x W): 29" x 8-1/4" Jointer Maximum Cutting Depth/Stock Removal: 1/8" Jointer Maximum Cutting Width: 8" Fence Size (L x H): 21 x 4 1/8" Fence Tilt: 90°- 45° R Fence Positive Stops: 90°, 45°R Planer Table (L x W): 10-5/8" x 8-1/2" Planer Maximum Cutting Thickness: 4-1/2" Planer Maximum Cutting Depth: 5/64" Feed Speed : 19.5 FPM Overall Dimensions (L x W x H): 31" 16-1/2" x 18-1/2" Net Weight : 58.4 lbs.

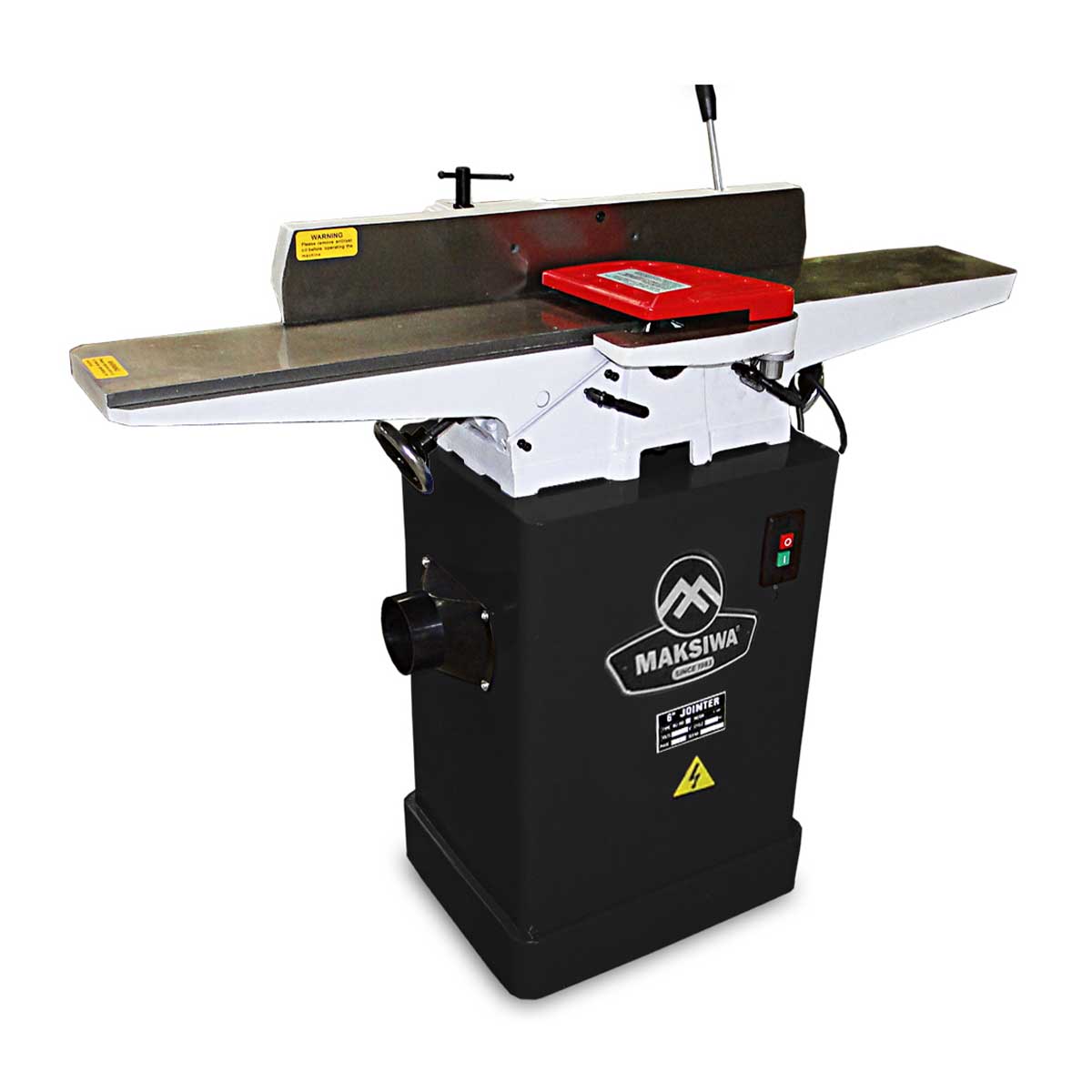

Technical Information DE.1200/3 Table lenght 47-2/8" x 6" Max. depth capacity 1/8 Speed 5,200 RPM Number of knives 3 Knives dimensions 158 x 18 x 3 mm (6-13/64' x 45/64' x 3/32') Fence tilt 45º to 90º Motor 1 HP 1 phase 127 V 16A Weight 267 Lbs

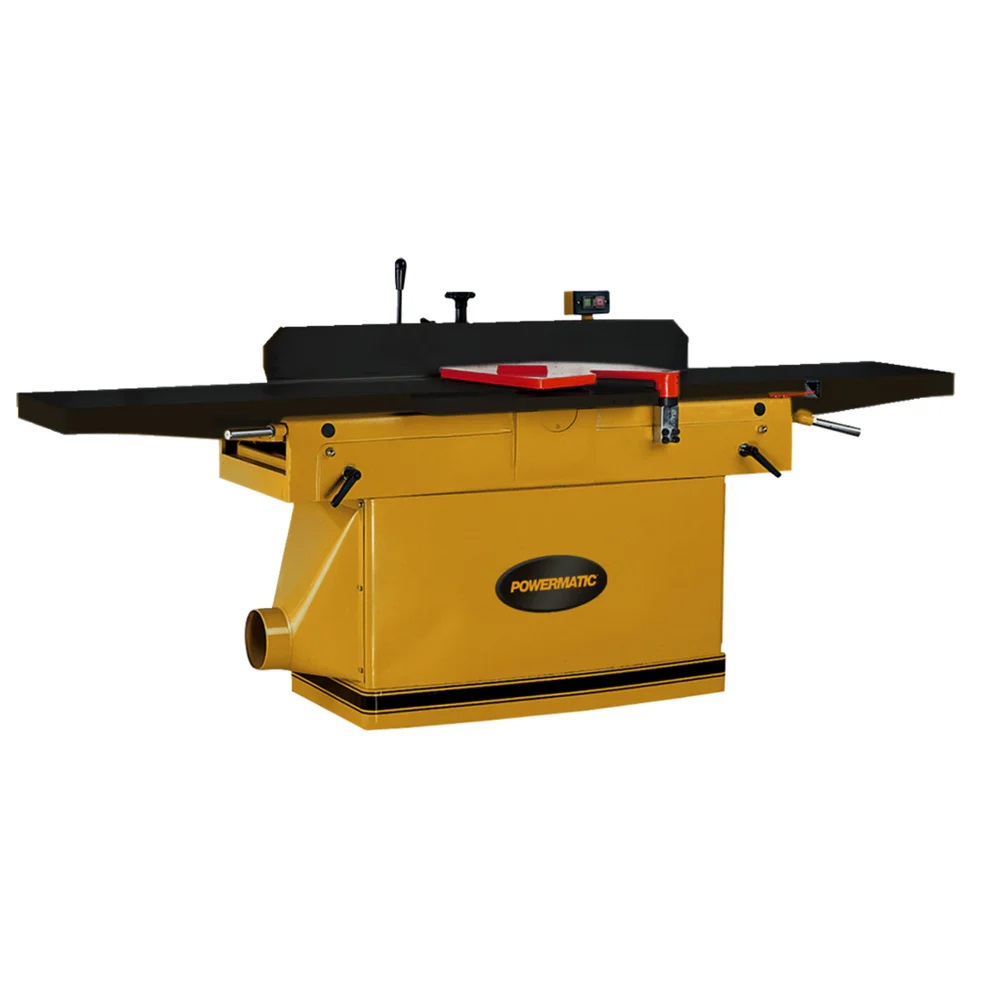

Cuts Per Minute 20,800 Cutterhead Diameter (In.) 4 Cutterhead Speed (RPM) 5200.0000 Cutting Capacity (W x D) (In.) 16 x 3/4 Dust Collection Minimum CFM Required (CFM) 800 Dust Port Outside Diameter (In.) 6 Infeed Table Length (In.) 47-1/2 Model Number PJ1696T Motor Power (HP) 7-1/2 Motor Voltage (V.) 230 Number of Knives 58 Prewired Voltage (V.) 230 Prop 65 Cancer and Reproductive Harm Max.Rabbeting Capacity (In.) 3/4" Table Height from Floor (In.) 37-1/2 Type of Cutterhead Helical Head Maximum Cutting Depth (In.) 1/8"

Cutterblock Speed: 5500 rpm Cutterblock Diameter: 70mm Max Depth of cut: 4mm Spiral Head with 44 knives Overall Length of tables: 2000mm Extractor Port Dia: 120mm Motor: 230v, 3 Phase Weight: 351kgs
