Sliding Table Saws

10′ Sliding table saw Heavy Duty Construction 126″ max length of cross cut 50″ rip capacity 7.5 hp main motor 1hp scoring motor 14″ blade capacity 30mm arbor Motorized Height adjustment of the main blade Manual Tilting arbor from 0 to 45 degrees Overarm dust collection included Heavy Industrial Aluminum cross cut fence with two flip stops 220v, 3 phase 60hz

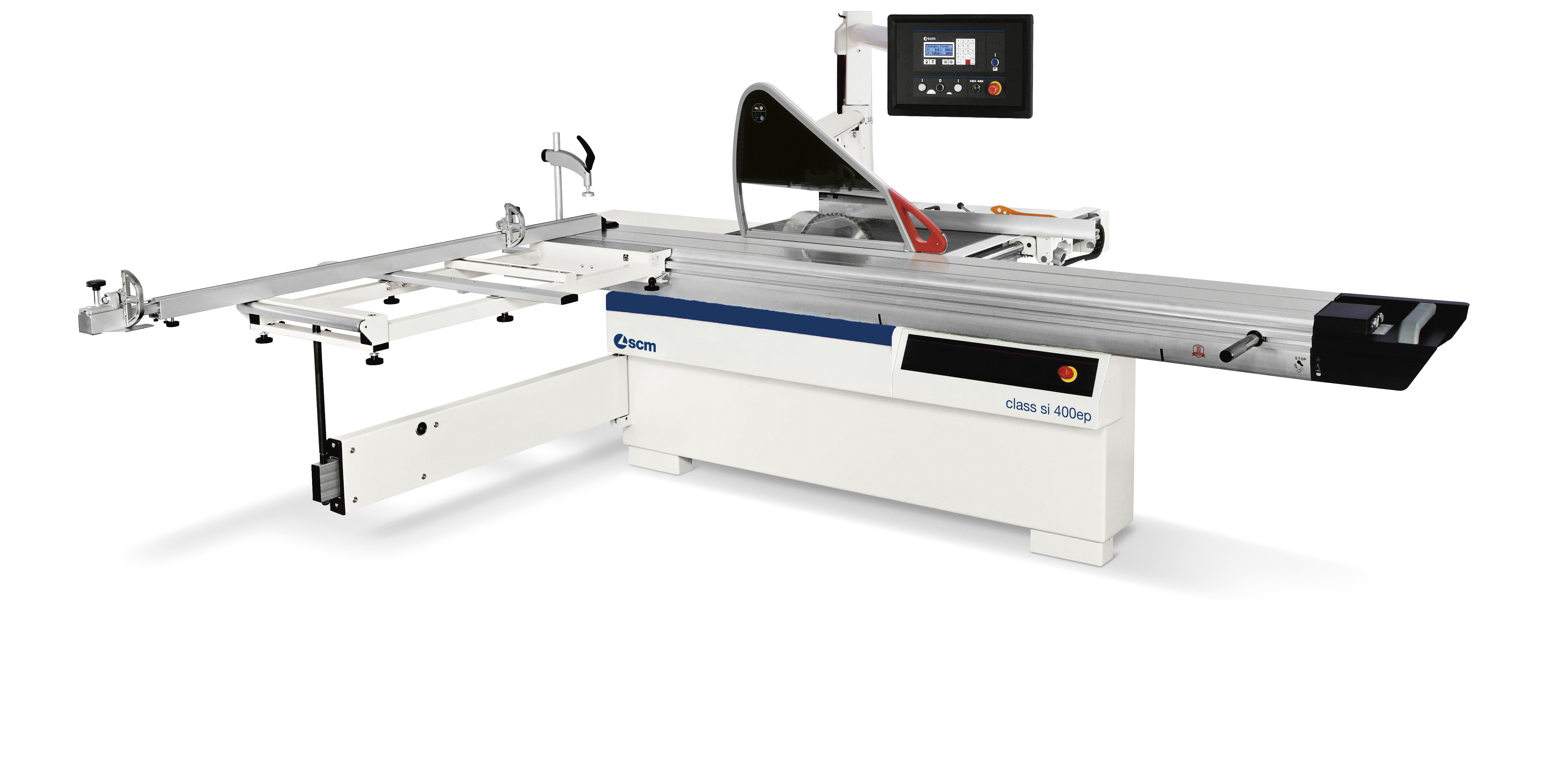

The advantages of an exclusive choice. Buying a “L’invincibile six” machine means you get a customized solution, thanks to experience, technical research and Italian creativity. Console eye-S main functions: – connectivity among machines belonging to the same company network and 4.0 Industry preset – sharing of work programs and tools database – activity monitoring and reporting on the use of the machine – connectivity with SCM Thundercut (optimizer/sequencer App) – self-diagnosis, tele-service and link to troubleshooting

The precise, cost-effective and compact circular saw with tilting blade for the D.I.Y. woodworkers and small joineries. This entry-level sliding table saw, the Minimax SC 2C is a proven design based on years of experience. It is perfect for customers upgrading to their first slider from a table saw. The footprint is small, but the capacity is large. A compact chassis, powerful 3.4hp motor, and 5.5′ sliding table. A great step up from the standard American-style cabinet saw. – 5.5ft Sliding table saw with 12″ main blade – 3.4 Horsepower single-phase motor – Anodized aluminum sliding table with hardened steel ways – Micro-adjustable rip fence with cam-locking system – Telescopic crosscut fence with two flip stops – Dedicated scoring assembly independently adjustable – Eccentric workpiece clamp – External scoring adjustments – Adjustable and removable riving knife – Outfeed table extension – Outrigger support – Tool set and operator’s manual 1-phase, 3.4hp, 5.5′ sliding stroke, tilting 12″ main blade, belt driven scoring blade, 50″ rip capacity

The prefect entry-level production machine for small cabinet shops or serious hobbyists. Affordable, without compromising quality. Solid cast iron saw unit with double trunnions and independently adjustable scoring unit. Our brand new sliding table saw, the Elite series has proven itself in American cabinet shops for many years. This machine boasts a full 8.5’ stroke and features normally found on much more expensive machines, for a fraction of the cost. See for yourself why the Minimax SC 4E 8.5 foot machine stands in a class of its own. – Solid cast iron saw unit with double support trunnions – Aluminum sliding table and rail with hardened steel guide-ways – European-style rip fence with cam lock, micro-adjustable – Automatic self-braking motor – Round steel guide bar for rip fence – Double trunnions on both saw and shaper assemblies – Telescoping crosscut fence with two adjustable flip stops – An additional table on the sliding table for support of panels with large dimensions – Eccentric panel clamp – 2-position sliding table lock – Table extension on saw out-feed – Scoring blade (adjusted independently of main blade) – ¾” DADO capability – Toolset and operator’s manual – “CSA” rated electrical components

The ideal 10.5ft single-phase sliding table saw for small cabinet shops or serious hobbyists. Affordable, without compromising quality. Maximum precision and stability with the blades lifting by means of “dove-tail” guides system and the saw unit tilting by means of two, large, lateral trunnions. The Minimax SI 315ES has proven itself in American cabinet shops for many years. This machine boasts a full 10.5’ stroke, single-phase motor and features normally found on much more expensive machines, for a fraction of the cost. STANDARD FEATURES – Double-hung cast iron trunnion – 4.8Hp single-phase motor – Aluminum table and rail with hardened steel guideways – Two aluminum flip-stops on the crosscut fence – European rip fence with cam-lock, micro-adjustable – Telescoping crosscut fence with two adjustable flip stops – Automatic self-braking motor – Eccentric panel clamp – Telescoping miter gauge with fence and support panel – 2-Position sliding table lock – Dial indicator for saw blade tilt angle – Metric and standard rule on the crosscut fence – Table extension on saw out-feed – External scoring adjustments – 3/4” dado capacity – Telescoping support arm for crosscut support table – Toolset & operator’s manual – “CSA”-rated electrical component - 10.5' Slider - 12" tilting blade - 50" rip capacity - Independent scoring unit

TECHNICAL FEATURES Blades tilting 90° ÷ 45° Max. saw blade diam. with scoring blade installed mm (in) 400 (15.75”) Max. saw blade projection from table at 90°/45° mm (in) 140/97(5.5 / 3.81”) Scoring blade diameter mm (in) 120 (4.75”) Squaring stroke mm (in) 3200 (10.5’) Cutting width on parallel fence mm (in) 1500 (62.94”) Other technical features: Three-phase motor 11kW (15hp) 60Hz Exhaust outlets diameter 120 (4.75”) MINIMUM INSTALLATION REQUIREMENTS Power absorption A 42 Voltage frequency 230V 60Hz

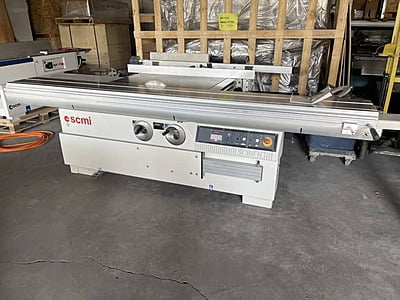

SCMI 10′ programmable sliding table saw Year 2004 Manual raise, lower and tilting of the main blade Main blade up to 14″ with 1″ arbor Include Scoring Overarm guard included but not shown in the photo Programmable controlled rip fence with digitals on the front of the machine 9hp main motor 230v, 3 phase 60hz

Technical data Max. saw blade diameter with mounted scorer 400 / 16 mm / inches Maximum saw blade projection from table to 90°/45° 140/97 5.5/3.8 mm / inches Cutting width on rip fence (Rip capacity) 1270 / 50 mm / inches Max. squaring stroke of sliding table saw 3200 / 126 mm / inches Three-phase motor 9,5 (50) - 11 (60) Hp / Hz

Technical data Max. saw blade diameter with mounted scorer 315 / 12 mm / inches Sawblade arbor size 25 / 1 mm / inches Maximum saw blade projection from table to 90°/45° 100/70 3.9/2.75 mm / inches Cutting width on rip fence (Rip capacity) 1270 / 50 mm / inches Max. squaring stroke of sliding table saw 1600 / 63 mm / inches Three-phase motor 11 Hp Indipendent scoring motor 1 Hp

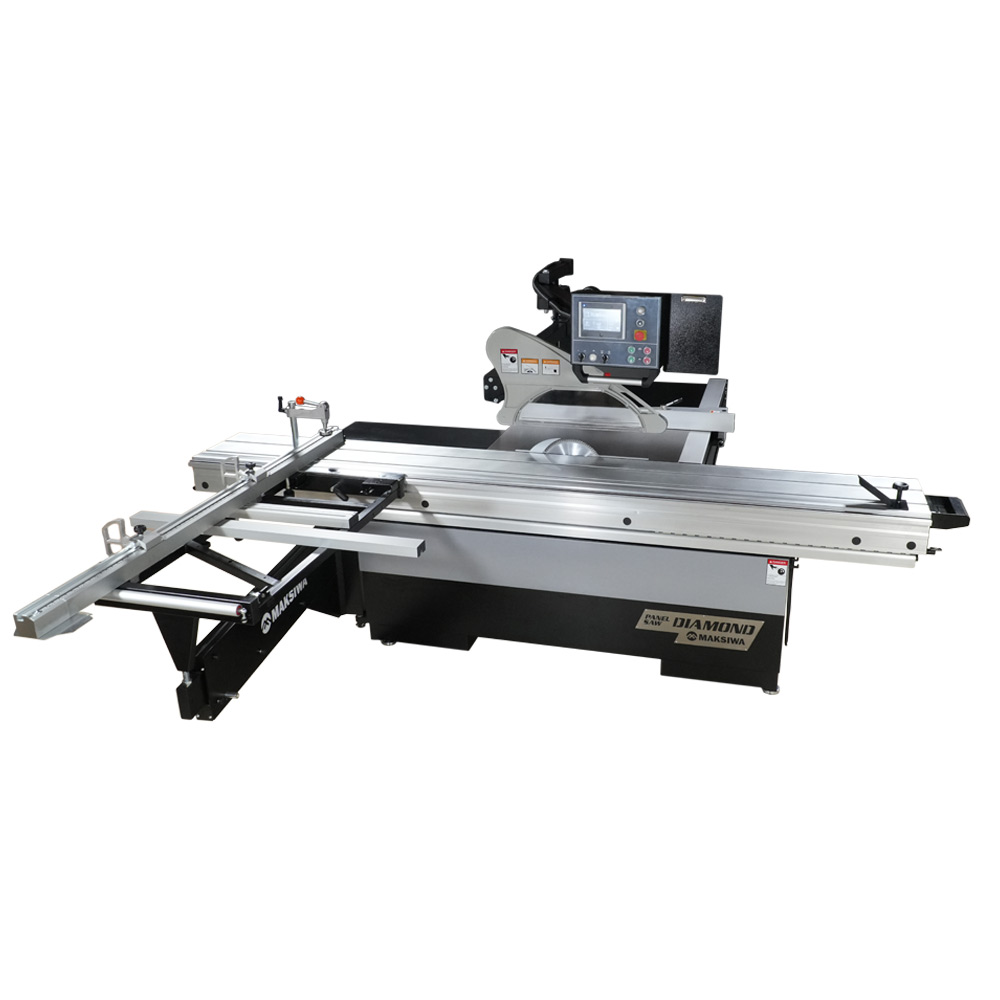

Technical Information Main Motor 5 HP/ 4000 RPM 3.7 Kw Max Blade Diameter 12" | 305mm Main Blade Arbor 1 3/16" | 30mm Main Blade Max cutting Height at 90° 3 1/2 " | 90mm Main Blade Cutting Height at 45° 2 1/8" | 53mm Scoring Motor 1 HP / 8000 RPM .74Kw Scoring Motor Blade 4 3/4" | 12mm Scoring Blade Arbor 3/4" | 20mm Scoring Blade Type Conical Max Ripping Capacity 51" | 1295mm Crosscut Capacity 126" | 3200 mm Crosscut Fence Capacity Closed/Open 74 3/4" / 108" | 1899 MM / 2743 mm Machine Working Dimensions (LxWxH) 126" x 137" x 52" | 3200 x 3480 x 1321mm Cast Iron Table Dimension (LxWxH) 31 1/2" x 21" x 34 3/4" | 800 X 553 X 883 mm Sliding Table Dimension (LxW) 126" x 14 3/4" | 3200 x 375 mm Dust Collection Port (2) 4" Minimum Dust Collection Requirements 1000 CFM | 28m/min Electrical Specs 1 Phase 220V 22 Amps 60 Hz 3 Phase 220V 11 Amps 60 Hz Main Body Crate Dimensions (LxWxH) 88" x 48" x 43" | 2245 x 1130 x 1090 mm Main Body Crate Weight Net/Gross 1102/1257 LBS | 500/ 570 KGS Sliding Table Crate Dimensions (LxWxH) 140" x 19" x 8 1/2" | 3556 x 483 x 216 mm Sliding Table Crate Weight Net/Gross 227/282 LBS | 103/128 KGS

Technical Information BMS.1600.IR Main Motor 5 HP 4000 RPM 3.7 Kw Max Blade Diameter 12" | 305mm Main Blade Arbor 30mm Main Blade Max Cutting Height at 90º 3 1/2" Main Blade Max Cutting Height at 45º 2 1/2" Scoring Motor 1 HP 8000 RPM .74Kw Scoring Motor Blade 4 3/4" | 120mm Scoring Blade Arbor 3/4" Scoring Blade Type Conical Max Ripping Capacity 35 1/2" | 900mm Crosscut Capacity 63" Crosscut fence max. (Closed/Open) 48" / 80" Machine Working Dimension (LxWxH) 79" x 115" x 66" Sliding Table Dimension 63" x 12" Cast Iron Table dimension (LxWxH) 32 1/2" x 21" x 35 1/2" Max Tilt 45º Dust Collection Port 4" Electrical Specs 1 PH 220V 30 Amps 60Hzs Weight 1000 lbs
