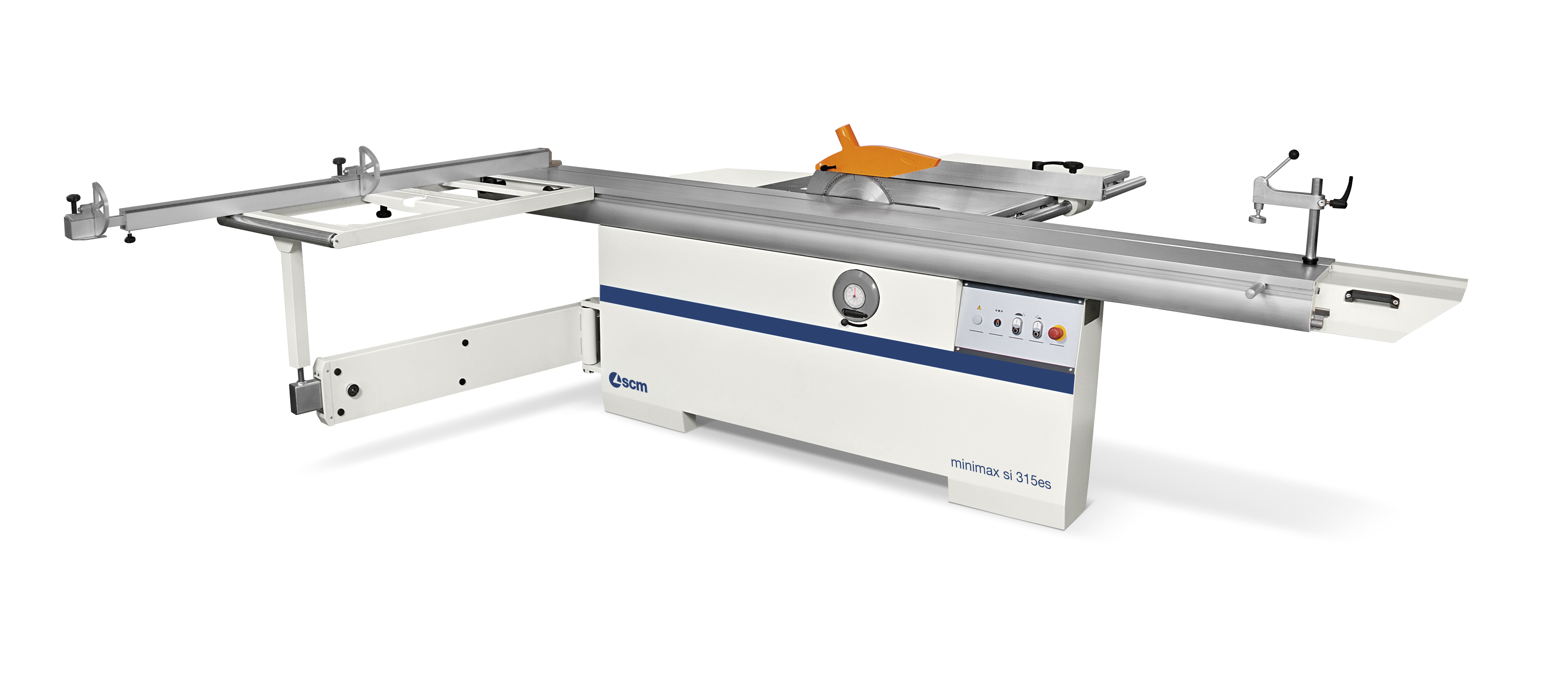

SI 315ES
The SI 315es is a top performances joinery machine: cast iron saw unit with 315 mm 12.37” saw blade and scoring unit with independent motor. It provides the best support in all machinings, thanks to the 360 mm (14.19”) width sliding table. Guaranteed maximum accuracy and stability with the blades lifting by means of “dove-tail” guides system and the saw unit tilting by means of two, large, lateral trunnions.
This machine is equipped with a top quality 4.8 horsepower motor for large businesses and smaller workshops with single-phase power.
$12,775.00
Customize
Warranty Information
1 Year Parts Only Factory Warranty Product Details
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Version with maximum squaring stroke 3200 mm
- Angular cutting device with flip-over stops
- "DADO SET" capability
- Additional table on the sliding table
- Single-phase motor 3,6kW (4,8hp) 60Hz
- Crate
TECHNICAL FEATURES | ||
| Cast iron saw-spindle moulder worktable dim. | mm (in) | 940 x 560 (37 x 22”) |
| Blades tilting | mm (in) | 90° ÷ 45° |
| Max. saw blade diam. with scoring blade installed | mm (in) | 315 (12.37”) |
| Max. saw blade projection from table at 90°/45° | mm (in) | 100/71 (3.94 x 2.81”) |
| Scoring blade diameter | mm (in) | 120 (4.75”) |
| Squaring stroke | mm (in) | 3200 (125.94”) |
| Cutting width on parallel fence | mm (in) | 1270 (49.94”) |
| Other technical features: | ||
| Single-phase motor | 3,6kW (4,8hp) 60Hz | |
| Exhaust outlets diameter | 120 (4.75”) | |
| MINIMUM INSTALLATION REQUIREMENTS | ||
| Section of electrical cable | [mm2] | 10 |
| Power absorption | [A] | 30 |
| Voltage - frequency | 230V - 60Hz |
