Bandsaws

Machine Specs: • Worktable Dimension: 600mm x 885mm • Cast Iron Saw Wheels Diameter: 640mm • Saw Wheel Width: 38mm • Maximum Cutting Height: 600mm (24″) • Maximum Cutting Width: 620mm • Worktable Tilting (CE): 0° – 45° (20°) • Exhaust Outlet Diameter: N° 2mm x 120mm • Voltage: 220V 1-phase, 4.8hp, 25.2″ flywheels dia. , 23.6″ resaw height, 24.4″ cutting width, 204″ recommended blade length, .25″ – 1.5″ blade

Technical Specifications Worktable dimensions: 600 x 885 mm Diameter of cast iron saw wheels: 640 mm Saw wheels width: 38 mm Max. cutting height: 600 mm / 24″ Max. cutting width: 620 mm / 25″ Tilt of worktable: 0° / 20° Min./max. saw blade dimensions: 8 mm / 35 mm Standard single-phase motor S1 220V: 2.2kW (3hp) 50Hz Standard three-phase motor S1 400V 50Hz: 3kW (4hp) 50Hz Exhaust outlet diameter: 2 x 120mm 3-phase, 9hp, 25.2″ flywheels dia., 23.6″ resaw height, 24.4″ cutting width, 204″ recommended blade length, .25″ – 1.5″ blade widt

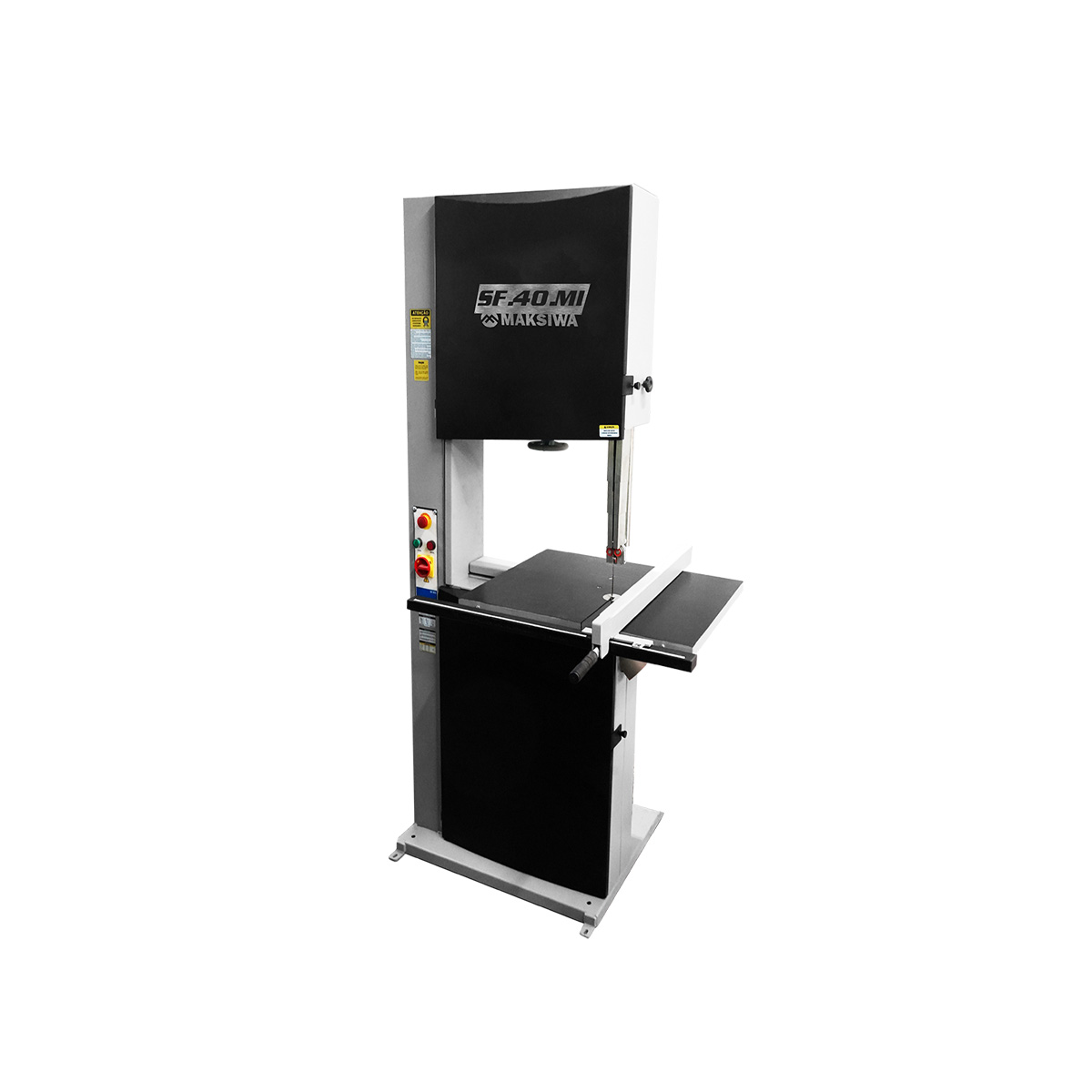

Technical Specifications Motor 3-phase 230v 6.6Hp Flywheel Diameter 29” (740mm) Table Size 28.34” x 39.37” (720x 1000mm) Table Tilt 0° -45 Cutting Height/Depth 17.7” (450mm) Cutting Width 28.34” (720mm) Min Blade Length 210.23” (5340mm) Max Blade Length 213.38” (5420mm) Overall Dimensions(Used Upright/Vertically) 46.4” x 28.3” x 104.3” (118x 72x 265cm) Net Weight 992lbs (450 kg) Total Dust Extraction Ports: 2 Total Dust Extraction Ports Diameter4.72” (120mm) 3-phase, 6.6hp, 29″ flywheel dia., 17.7″ resaw height, 28.34″ cutting width, 212″ recommended blade length, .31″ – 1.5″ blade width

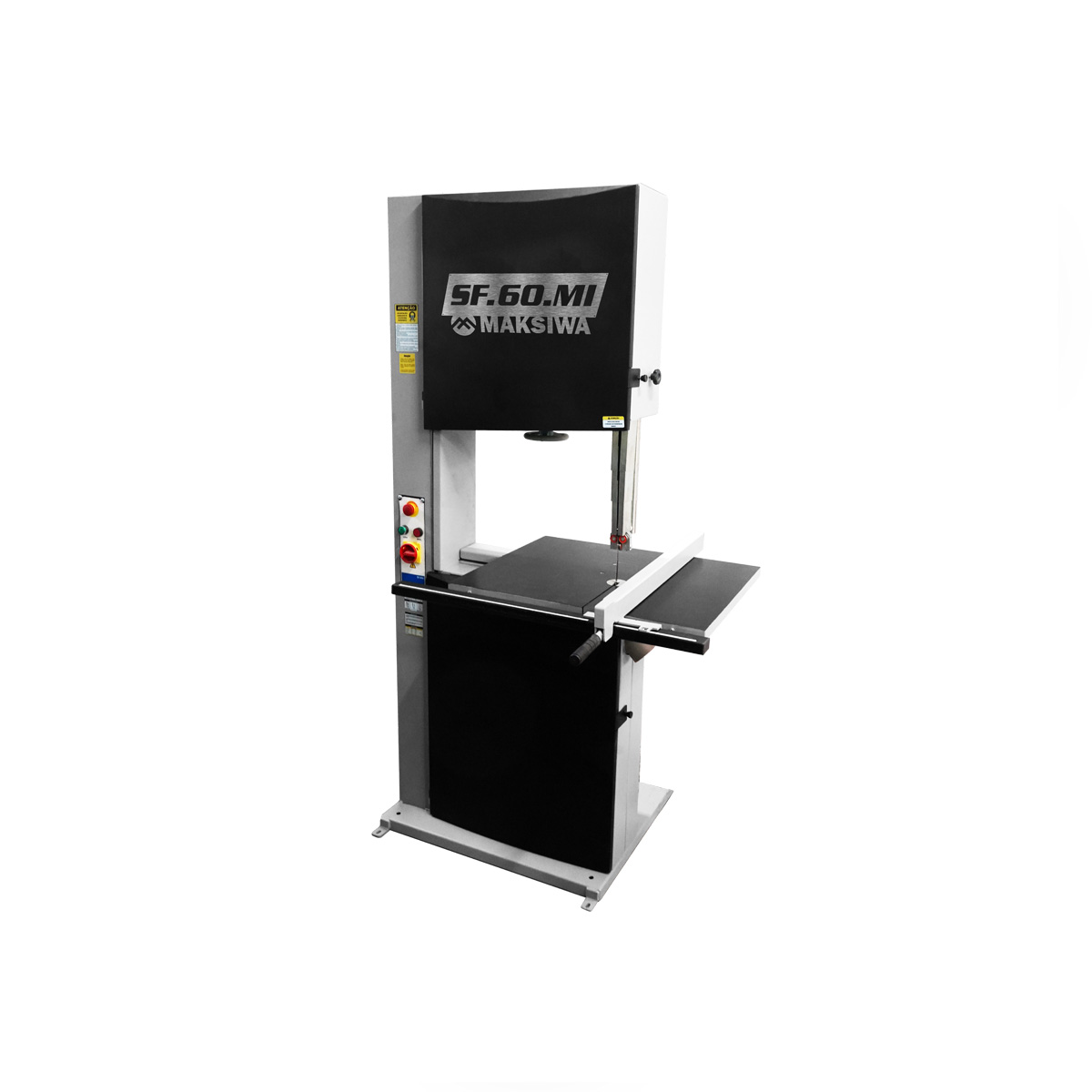

Technical Specifications Motor 3-phase 230v Horsepower 9Hp Flywheel Diameter37” (940mm) Table Size32.28” x 45.66” (820x 1160mm) Table Tilt0° -45°Cutting Height/Depth22” (560mm)Cutting Width36.2” (920mm) MinBlade Length259.44” (6590mm) Max Blade Length264.17” (6710mm) Overall Dimensions(Used Upright/Vertically)61” x 36.2” x 112.59” (155x 92x 286cm) Net Weight1,584 lbs.(720kg) Total Dust Extraction Ports2 Total Dust Extraction Ports Diameter5.5” (140mm)

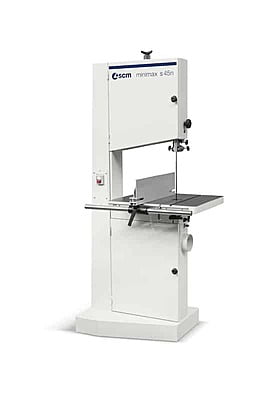

Our longest selling bandsaw, the S 45N set the bar high for quality bandsaws. This machine has 18” cast iron flywheels, and a large cast-iron table. With 12” resaw height it is also versatile to do either pattern work, or resawing operations! This machine has been a reliable tool in the Minimax lineup for over 30 years.

Specifications: Motor: 3 HP, 1 PH, 12A, 230 V, Prewired 230 V Cutting Capacity Width: 14-1/2” Cutting Capacity Height: 14″ Blade Width: 1/8″ to 1″ Blade Speed: 3100 SFPM Blade Length: 153″ Table Dimension (LxW): 21-1/2” x 16″ Table Tilt: 10 ° left, 45 ° right Table Height from Floor: 40″ Table Height at 90 degrees: 40″ Miter Gauge Positive Stops: 45 degree, 90 degree Dust Port Outer Diameter: 4″ Dust Collection Minimum CFM: 600 cu.ft/min Thickness Capacity (max): 14″ Wheel Diameter: 15″ Dimensions: 83-1/2” H x 27-1/2” W x 29-3/4” L

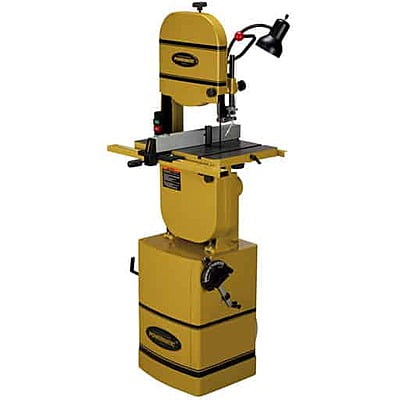

The PWBS-14CS Bandsaw has an extra large, two-piece cast iron table. It consists of a 15 x 15″ tilting section and a fixed 15″ x 5″ extension for a total working surface area of 15″ x 20″. A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6″ under guide capacity with 13-1/2″ frame to blade clearance. The aluminum rip fence comes with a resaw attachment.

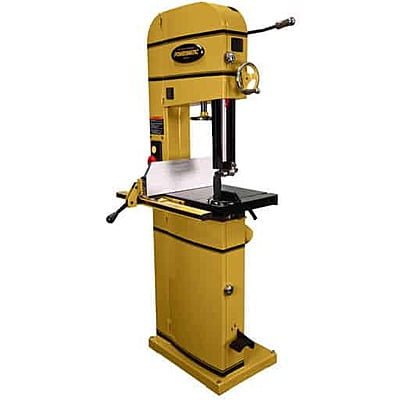

Powermatic ArmorGlide PM1500T Bandsaw, 3HP, 1PH, 230V 1791500T Blade Speed: 3100 SFPM Cutting Capacity Width: 14-1/2'' Cutting Capacity Height: 14'' Blade Width: 1/8'' - 1'' Maximum Saw Blade Width: 1'' Table Size: 21-1/2'' x 16'' Table Height from Floor: 40'' Table Tilt (Deg.): 10 Left, 45 Right Table T-Slot: 3/4'' Minimum Saw Blade Width (In.): 1/8 Miter Gauge Positive Stops: 45, 90 Dust Collection Minimum CFM Required (CFM): 600 Motor Voltage: 230V Prewired Voltage: 230V Motor Current (Amps): 12 Motor Horsepower: 3 ArmorGlide Coating: Yes

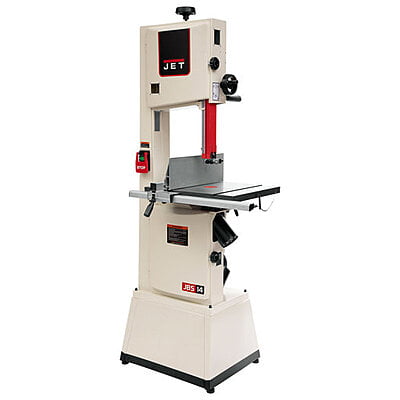

Specifications: Power: 1-3/4 HP Voltage: 115 Volt (prewired) / 230V Recommended Circuit Size: 20A Motor Phase: 1 Phase Motor Speed: 1720 RPM Power Transfer: V-belt Power Cord and Plug: SJT 14AWGx3C, 6 ft., 5-15P plug Recommended Circuit Size: 20A (for 115V), 15A (for 230V) Sound Emission without Load: 75 dB at 3 ft. (900 mm) from blade Bandsaw Nominal Size: 14" Bandsaw Wheel Diameter: 14" Blade Length: 116" Blade Width: 1/8" to 3/4" Cutting Capacity: 12" W; 13.3" H Blade Speed: 3,000 SFPM Wheel Speed: 765 RPM Table Material: Ground cast iron Table Insert Material: Anodized aluminum Table Height: 40" Table Size: 21-1/2" x 17" Table T-Slot: 3/4" (x2) Table Tilt: 45° R Stand Type: Closed Frame Material: Steel Wheels: Cast iron Tires: Polyurethane Blade guides: Ball bearings, aluminum block Resaw Fence: Extruded aluminum Resaw Fence Size (L x W x H): 18-1/4" x 6" (463 x 155 mm) Dust Collection Minimum Required: 350 CFM Dust Port: 4" Outer Diameter (x2) Overall Assembled Dimensions (L x W x H): approximately 37" x 27-1/2" x 75-3/8" Footprint (L x W): 24-7/8" x 17-3/4" Net Weight (approx.): 300 lb.

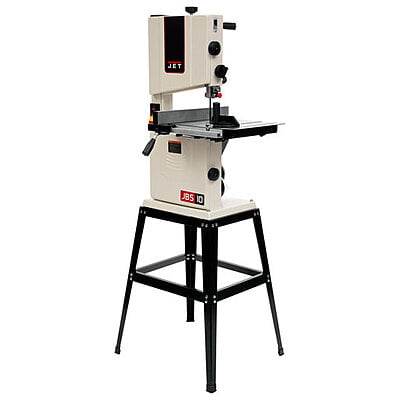

Specifications: Motor Power: 1/2 HP Motor Phase: 1 Phase Motor Voltage: 115V Motor Amps: 3.4A Band Saw Size/Wheel Diameter: 10" Cutting Capacity - Width: 9-1/2" Cutting Capacity - Height: 4-1/8" Maximum Rip Left of Blade with Fence: 5" (125 mm) Maximum Rip Right of Blade w/Fence: 5" (125 mm) Blade Length: 67-1/2" Blade Speed: 2750 SFPM Overall Dimensions without Stand (L x W x H): 27" x 18" x 33" (686 x 457 x 838 mm) Overall Dimensions with Stand (L x W x H): 30" x 19-1/2" x 59-1/2" (762 x 496 x 1511 mm) Table Size (L x W): 13-1/8" L x 13-3/8" Table Size with Extension (L x W): 13-1/8" x 19" Table Tilt: 0° to 45° Maximum Saw Blade Width: 1/2" Minimum Saw Blade Width: 1/8" Table Height from Floor: 41-1/2" Dust Port Outside Diameter: 4" Net Weight: approximately 83 lbs. (36.4 kg) Stand Type: Open

Technical Information Motor Specs 1 Phase 110V 15 Amp 60 Hz Diameter of wheel 14" Speed 3000 ft/min Max cutting width 13- 1/2" (345mm) Max cutting height 12" (310mm) Table size (LxW) 17- 1/4" x 21- 1/8" Blade Size 115" (2933mm) Blade Width 1/8" - 3/4" Floor-to-table height 40 - 1/4 " Dust port size 4" Footprint (LxWxH) 27" x 39" x 78"

Technical Information Motor Specs 5 HP 1 phase Max Cutting Height 13" Max cutting width 15" Table Dimension 24" x 30" Wheel Diameter 24" Table Tilt 45º Table Lenght 165" Dimensions od Assembled machine 27" x 35" x 71" Weight 550 lbs

Technical Information Motor Specs 3 HP 1 phase Max Cutting Height 12" Max cutting width 15" Table Dimension 18" x 22" Wheel Diameter 16" Table Tilt 45º Table Lenght 131" Dimensions od Assembled machine 27" x 35" x 71"
