Saws

About this machine: 37″ Wide machine Combination head with 4.75″ diameter, 85 shore rubber contact drum and 2″ wide platen 18 HP main motor for sanding unit 0.7 HP, 2-speed feed motor (15 and 30 FPM) 6.25″ Maximum workpiece thickness Uses 37″ x 60″ abrasive belts Accurate and reliable electronic tracking of abrasive belt Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt Powered table positioning with electronic digital readout Automatic thickness setting device Rubber coated pressure rolls before and after sanding unit Infeed and outfeed tables with (2) rollers each 50 Shore negative profile (waffle pattern) rubber feed mat Automatic emergency stop of machine for: Sanding belt breaking, tensioning, overtracking; Absence of compressed air; overload on main motor (2) Platens provided – (1) Rigid, (1) Soft Air requirements: 6 Bar (88 PSI) Dust requirements: 900 CFM Electrical requirements: 54 Amps @ 230 V, 3 Phase

About The Machine: • 37″ Wide machine • Combination head with 4.75″ diameter, 85 shore rubber contact drum and 2″ wide platen • 18 HP main motor for sanding unit • 0.7 HP, 2-speed feed motor (15 and 30 FPM) • 6.25″ Maximum workpiece thickness • Uses 37″ x 60″ abrasive belts • Accurate and reliable electronic tracking of abrasive belt • Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt • Powered table positioning with electronic digital readout • Automatic thickness setting device • Rubber coated pressure rolls before and after sanding unit • Infeed and outfeed tables with (2) rollers each • 50 Shore negative profile (waffle pattern) rubber feed mat • Automatic emergency stop of machine for: Sanding belt breaking, tensioning, overtracking; Absence of compressed air; overload on main motor • (2) Platens provided – (1) Rigid, (1) Soft • Air requirements: 6 Bar (88 PSI) • Dust requirements: 900 CFM • Electrical requirements: 54 Amps @ 230 V, 3 Phase

Machine Specs: • Worktable Dimension: 600mm x 885mm • Cast Iron Saw Wheels Diameter: 640mm • Saw Wheel Width: 38mm • Maximum Cutting Height: 600mm (24″) • Maximum Cutting Width: 620mm • Worktable Tilting (CE): 0° – 45° (20°) • Exhaust Outlet Diameter: N° 2mm x 120mm • Voltage: 220V 1-phase, 4.8hp, 25.2″ flywheels dia. , 23.6″ resaw height, 24.4″ cutting width, 204″ recommended blade length, .25″ – 1.5″ blade

Technical Specifications Worktable dimensions: 600 x 885 mm Diameter of cast iron saw wheels: 640 mm Saw wheels width: 38 mm Max. cutting height: 600 mm / 24″ Max. cutting width: 620 mm / 25″ Tilt of worktable: 0° / 20° Min./max. saw blade dimensions: 8 mm / 35 mm Standard single-phase motor S1 220V: 2.2kW (3hp) 50Hz Standard three-phase motor S1 400V 50Hz: 3kW (4hp) 50Hz Exhaust outlet diameter: 2 x 120mm 3-phase, 9hp, 25.2″ flywheels dia., 23.6″ resaw height, 24.4″ cutting width, 204″ recommended blade length, .25″ – 1.5″ blade widt

Technical Specifications Motor 3-phase 230v 6.6Hp Flywheel Diameter 29” (740mm) Table Size 28.34” x 39.37” (720x 1000mm) Table Tilt 0° -45 Cutting Height/Depth 17.7” (450mm) Cutting Width 28.34” (720mm) Min Blade Length 210.23” (5340mm) Max Blade Length 213.38” (5420mm) Overall Dimensions(Used Upright/Vertically) 46.4” x 28.3” x 104.3” (118x 72x 265cm) Net Weight 992lbs (450 kg) Total Dust Extraction Ports: 2 Total Dust Extraction Ports Diameter4.72” (120mm) 3-phase, 6.6hp, 29″ flywheel dia., 17.7″ resaw height, 28.34″ cutting width, 212″ recommended blade length, .31″ – 1.5″ blade width

Technical Specifications Motor 3-phase 230v Horsepower 9Hp Flywheel Diameter37” (940mm) Table Size32.28” x 45.66” (820x 1160mm) Table Tilt0° -45°Cutting Height/Depth22” (560mm)Cutting Width36.2” (920mm) MinBlade Length259.44” (6590mm) Max Blade Length264.17” (6710mm) Overall Dimensions(Used Upright/Vertically)61” x 36.2” x 112.59” (155x 92x 286cm) Net Weight1,584 lbs.(720kg) Total Dust Extraction Ports2 Total Dust Extraction Ports Diameter5.5” (140mm)

10′ Sliding table saw Heavy Duty Construction 126″ max length of cross cut 50″ rip capacity 7.5 hp main motor 1hp scoring motor 14″ blade capacity 30mm arbor Motorized Height adjustment of the main blade Manual Tilting arbor from 0 to 45 degrees Overarm dust collection included Heavy Industrial Aluminum cross cut fence with two flip stops 220v, 3 phase 60hz

The advantages of an exclusive choice. Buying a “L’invincibile six” machine means you get a customized solution, thanks to experience, technical research and Italian creativity. Console eye-S main functions: – connectivity among machines belonging to the same company network and 4.0 Industry preset – sharing of work programs and tools database – activity monitoring and reporting on the use of the machine – connectivity with SCM Thundercut (optimizer/sequencer App) – self-diagnosis, tele-service and link to troubleshooting

Maggi radial arm saws offer adaptability, versatility, precision and durability to shops of all sizes. Maggi has been producing radial arm saws since 1973 and over the years has continually improved technical design and quality. Heavy castings and the eight bearing saw carriage makes this machine very accurate and rigid. European quality made to last! 4 HP, 2800 RPM motor 400 mm (15.75") Blade diameter capacity (Not included) 30 mm Arbor diameter 73.23" x 45.08" Table size 27.75" Max crosscut length on 3/4" thick material (90 deg) 0 to 40.5" Rip capacity 4.9" Max depth of cut 19.68" Max cut length at 45 deg on right side 12.20" Max cut length at 45 deg on left side Dust chute on blade guard as well as rear of table Machine weight: 495 Lbs. Machine dimensions: 73" x 62" x 61" T Crated dimensions: 56" x 34" x 24" T Crated weight: 523 Lbs. Voltage: 230V 3-Phase

Our longest selling bandsaw, the S 45N set the bar high for quality bandsaws. This machine has 18” cast iron flywheels, and a large cast-iron table. With 12” resaw height it is also versatile to do either pattern work, or resawing operations! This machine has been a reliable tool in the Minimax lineup for over 30 years.

The precise, cost-effective and compact circular saw with tilting blade for the D.I.Y. woodworkers and small joineries. This entry-level sliding table saw, the Minimax SC 2C is a proven design based on years of experience. It is perfect for customers upgrading to their first slider from a table saw. The footprint is small, but the capacity is large. A compact chassis, powerful 3.4hp motor, and 5.5′ sliding table. A great step up from the standard American-style cabinet saw. – 5.5ft Sliding table saw with 12″ main blade – 3.4 Horsepower single-phase motor – Anodized aluminum sliding table with hardened steel ways – Micro-adjustable rip fence with cam-locking system – Telescopic crosscut fence with two flip stops – Dedicated scoring assembly independently adjustable – Eccentric workpiece clamp – External scoring adjustments – Adjustable and removable riving knife – Outfeed table extension – Outrigger support – Tool set and operator’s manual 1-phase, 3.4hp, 5.5′ sliding stroke, tilting 12″ main blade, belt driven scoring blade, 50″ rip capacity

The prefect entry-level production machine for small cabinet shops or serious hobbyists. Affordable, without compromising quality. Solid cast iron saw unit with double trunnions and independently adjustable scoring unit. Our brand new sliding table saw, the Elite series has proven itself in American cabinet shops for many years. This machine boasts a full 8.5’ stroke and features normally found on much more expensive machines, for a fraction of the cost. See for yourself why the Minimax SC 4E 8.5 foot machine stands in a class of its own. – Solid cast iron saw unit with double support trunnions – Aluminum sliding table and rail with hardened steel guide-ways – European-style rip fence with cam lock, micro-adjustable – Automatic self-braking motor – Round steel guide bar for rip fence – Double trunnions on both saw and shaper assemblies – Telescoping crosscut fence with two adjustable flip stops – An additional table on the sliding table for support of panels with large dimensions – Eccentric panel clamp – 2-position sliding table lock – Table extension on saw out-feed – Scoring blade (adjusted independently of main blade) – ¾” DADO capability – Toolset and operator’s manual – “CSA” rated electrical components

The ideal 10.5ft single-phase sliding table saw for small cabinet shops or serious hobbyists. Affordable, without compromising quality. Maximum precision and stability with the blades lifting by means of “dove-tail” guides system and the saw unit tilting by means of two, large, lateral trunnions. The Minimax SI 315ES has proven itself in American cabinet shops for many years. This machine boasts a full 10.5’ stroke, single-phase motor and features normally found on much more expensive machines, for a fraction of the cost. STANDARD FEATURES – Double-hung cast iron trunnion – 4.8Hp single-phase motor – Aluminum table and rail with hardened steel guideways – Two aluminum flip-stops on the crosscut fence – European rip fence with cam-lock, micro-adjustable – Telescoping crosscut fence with two adjustable flip stops – Automatic self-braking motor – Eccentric panel clamp – Telescoping miter gauge with fence and support panel – 2-Position sliding table lock – Dial indicator for saw blade tilt angle – Metric and standard rule on the crosscut fence – Table extension on saw out-feed – External scoring adjustments – 3/4” dado capacity – Telescoping support arm for crosscut support table – Toolset & operator’s manual – “CSA”-rated electrical component - 10.5' Slider - 12" tilting blade - 50" rip capacity - Independent scoring unit

• Manufacturer Part Number 1791291K • Disc Size 12″ • HP 1-1/2 HP • Volts 230 • Dust Collection 4″ Port • Sander Style Stationary • Speed 2375 RPM (Disc) | 2410 SFPM (Belt) • Table Tilt 0, 45 and 90 • Belt Size 6″ x 48″

The large 11-3/4″ x 48″ table on the OES9138 oscillating edge sander travels a full 8″ in vertical height to accommodate most woodworking pieces. It will also tilt negative 5° and out to positive 45°. The cast iron platen is a generous 48″ x 9-1/2″ and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt. 3HP motor with 9″ x 138-3/4″ abrasive belt handles large workpiecesOscillates 24 cycles per minute for better finish and longer belt life9-1/2″ x 48″ platen with graphite pad offers largest work surface in its classRugged bearing-assisted tensioning device for fast belt changes and quick adjust trackingPedestal control switch for easy accessLarge 11-3/4″ x 48″ front worktable with 8″ vertical travel tilts and 45° tilt, includes miter head for angle workPrecision balanced 9″ diameter drive drum and 4″ diameter rubber coated idler pulley for positive drive and rigid trackingLarge radius end table has 6″ vertical travel and 45° tilt for any angle and working height neededHeavy-duty oscillating gearbox and shaft for long maintenance-free useHinged guard opens for infinite length sandingDual dust collection ports keep work area clean and extend abrasive belt lifeStandard Equipment:Two 4″ dust portsTilting main and end tablesPlaten with graphite pad • Style (Type) Horizontal/Vertical Oscillating Edge • Sanding Belt Size (L x W) (In.) 9 x 138-3/4 • Belt Speed (FPM) 3542 • Drum Diameter (In.) 4 Outboard, 9 Drive • Platen Size (In.) 9-1/2 x 48 • Oscillations Per Minute 24 • Main Table Size (L x W) (In.) 48 x 11-3/4 • Main Table Tilt (Deg.) 5 In, 45 Out • Table Height from Floor (In.) 34-1/2 – 40-3/4 • End Table Size (In.) 18 • End Table Tilt (Deg.) 40 In, 45 Out • Electrical Controls Magnetic Starter • Dust Collection Minimum CFM Required (CFM) 1,100 • Dust Port Outside Diameter (In.) 4 • Motor Power (HP) 3 • Motor Phase 1 • Motor Voltage (V.) 230 only • Recommended Circuit Size (Amps.) 30

Specifications: Motor: 3 HP, 1 PH, 12A, 230 V, Prewired 230 V Cutting Capacity Width: 14-1/2” Cutting Capacity Height: 14″ Blade Width: 1/8″ to 1″ Blade Speed: 3100 SFPM Blade Length: 153″ Table Dimension (LxW): 21-1/2” x 16″ Table Tilt: 10 ° left, 45 ° right Table Height from Floor: 40″ Table Height at 90 degrees: 40″ Miter Gauge Positive Stops: 45 degree, 90 degree Dust Port Outer Diameter: 4″ Dust Collection Minimum CFM: 600 cu.ft/min Thickness Capacity (max): 14″ Wheel Diameter: 15″ Dimensions: 83-1/2” H x 27-1/2” W x 29-3/4” L

• Drum Length: 22″ • Number of Sanding Drums: 1 • Drum Speed (RPM): 1,720 • Drum Diameter: 5″ • Conveyor Speed (FPM): 0 – 10 • Maximum Board Thickness: 4″ • Maximum Board Width: 44″ • Minimum Board Length: 2-3/8″ • Minimum Board Thickness: 1/32″ • Dust Port Outside Diameter: 4″ • Motor Power (HP): 1-3/4 • Conveyor Motor (HP): 1/30 • Motor Phase: 1 • Motor Voltage (V): 115 • Prewired Voltage (V): 115 • Motor Current (Amps): 14 • Recommended Circuit Size (Amps): 20

The PWBS-14CS Bandsaw has an extra large, two-piece cast iron table. It consists of a 15 x 15″ tilting section and a fixed 15″ x 5″ extension for a total working surface area of 15″ x 20″. A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6″ under guide capacity with 13-1/2″ frame to blade clearance. The aluminum rip fence comes with a resaw attachment.

TECHNICAL FEATURES Blades tilting 90° ÷ 45° Max. saw blade diam. with scoring blade installed mm (in) 400 (15.75”) Max. saw blade projection from table at 90°/45° mm (in) 140/97(5.5 / 3.81”) Scoring blade diameter mm (in) 120 (4.75”) Squaring stroke mm (in) 3200 (10.5’) Cutting width on parallel fence mm (in) 1500 (62.94”) Other technical features: Three-phase motor 11kW (15hp) 60Hz Exhaust outlets diameter 120 (4.75”) MINIMUM INSTALLATION REQUIREMENTS Power absorption A 42 Voltage frequency 230V 60Hz

• Rubber coated pressing rollers before and after working unit • 1 HP two speed feed unit. Feed speeds set at 15 or 30 feet per minute • Y-Delta two-stage reduced voltage starter on main motor • 2 roller Infeed and outfeed table extensions • Automatic Electronic Table Positioning Device • Adjustable sanding drum and pad position for micro precision adjustment • Electronic digital thickness readout of work table position • Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability • Electronic tracking of abrasive belt • Automatic feed mat tracking • Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt • Front and rear emergency stop buttons • Automatic emergency stop of machine for: - sanding belt breaking, tensioning, over tracking - opening of the access door to the operating groups - absence of compressed air - overload on main motors • Amperage meter for main motors allows maximum utilization of available horsepower • Main disconnect switch with the ability to be locked out by padlock • In feed flexible steel hold down, and anti-kickback plate • 50 shore, negative profile (waffle style) rubber feed mat • LOGIC 50 K Electronic Programmer for timing/anti-dubbing • of the pad

SCMI 10′ programmable sliding table saw Year 2004 Manual raise, lower and tilting of the main blade Main blade up to 14″ with 1″ arbor Include Scoring Overarm guard included but not shown in the photo Programmable controlled rip fence with digitals on the front of the machine 9hp main motor 230v, 3 phase 60hz

Technical data Max. saw blade diameter with mounted scorer 400 / 16 mm / inches Maximum saw blade projection from table to 90°/45° 140/97 5.5/3.8 mm / inches Cutting width on rip fence (Rip capacity) 1270 / 50 mm / inches Max. squaring stroke of sliding table saw 3200 / 126 mm / inches Three-phase motor 9,5 (50) - 11 (60) Hp / Hz

Technical data Max. saw blade diameter with mounted scorer 315 / 12 mm / inches Sawblade arbor size 25 / 1 mm / inches Maximum saw blade projection from table to 90°/45° 100/70 3.9/2.75 mm / inches Cutting width on rip fence (Rip capacity) 1270 / 50 mm / inches Max. squaring stroke of sliding table saw 1600 / 63 mm / inches Three-phase motor 11 Hp Indipendent scoring motor 1 Hp

Jobsite Saw PRO 1.5HP, 120V, 60Hz Inc. Cart & Dust Guard

Compact Table Saw – 15A,120V,60Hz

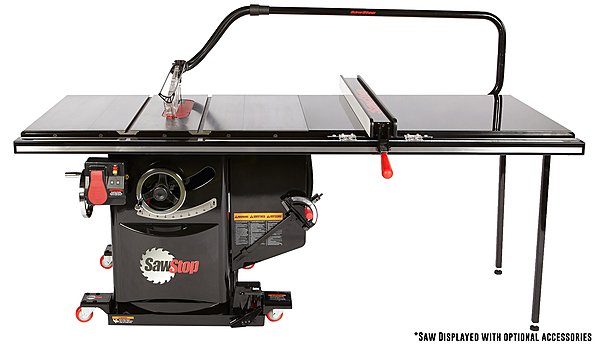

SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch. UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. The gas piston elevation delivers smooth and easy adjustability. Table flatness is measured diagonally at 0. 010” maximum gap. DUST COLLECTION: 99% dust collection is delivered above the table with the included dust collection blade guard, and below the table with advanced shrouding around the blade. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade and into the 4” port. RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.

SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch. UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability.

SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch. UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. Poly v-ribbed belts reduce vibration and help ensure a great cut. Table flatness is measured diagonally at 0. 010” maximum gap. RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe. CONFIGURABILITY: Over 150 unique configurations, makes the Contractor Saw the most configurable SawStop saw. Adding a mobile base, sliding crosscut table or router table, are just a few of the ways to make this your ideal saw. UNIVERSAL PERFORMANCE: The Contractor Saw offers versatility, reliability and safety for a variety of users. The cast iron table top (Cast Iron Wing Assembly, CNS-CIWA, sold separately) creates a better-than-hybrid performance in the shop at an affordable price. 36-INCH T-GLIDE FENCE ASSEMBLY: The 36-inch T-Glide Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection. • Horsepower 1.75hp • Phase 1 phase • Voltage 110v

Powermatic ArmorGlide PM1500T Bandsaw, 3HP, 1PH, 230V 1791500T Blade Speed: 3100 SFPM Cutting Capacity Width: 14-1/2'' Cutting Capacity Height: 14'' Blade Width: 1/8'' - 1'' Maximum Saw Blade Width: 1'' Table Size: 21-1/2'' x 16'' Table Height from Floor: 40'' Table Tilt (Deg.): 10 Left, 45 Right Table T-Slot: 3/4'' Minimum Saw Blade Width (In.): 1/8 Miter Gauge Positive Stops: 45, 90 Dust Collection Minimum CFM Required (CFM): 600 Motor Voltage: 230V Prewired Voltage: 230V Motor Current (Amps): 12 Motor Horsepower: 3 ArmorGlide Coating: Yes

GENERAL DATA gabbiani p80 Blade projection mm 80 (3.15”) Worktable height mm 950 (37.4”) Standard clamps q.ty 5 Total clamps for 33 version q.ty 7 CUTTING DIMENSIONS Version 33 mm 3300x3200 (130”x126”) AXES SPEED Variable saw carriage speed m/min 0 – 120 (0-393.7 ft/min) Variable pusher speed m/min 70 (229.7 ft/min) MAIN SAW BLADE Motor power (S6 -40%) - 60hz (star-delta start) Hp 15 Rotating speed – 60 hz rpm 5580 Blade diameter mm 340 (13.38”) Blade shaft diameter mm 80 (3.15”) SCORING SAW BLADE Motor power (S6 -40%) - 60hz Hp 2 Rotating speed – 60 hz rpm 7020 Scoring saw blade diameter mm 200 (7.87”) Scoring blade shaft diameter mm 80 (3.15”) INSTALLATION Installed motor power kW 12÷15 Machine voltage 230 V / 60 hz Compressed air consumption NL/min 300 Requested operating pressure bar 7 Extraction flow rate m3/h 2190 Exhaust speed m/sec 20 Exhaust outlet diameter mm 4x120

CSA Certified Motor: 7.5HP, 3PH, 230/460V, 18.4/9.2A L x W x H (In.): 48 x 38 x 43 Net Weight (lbs): 738 lbs. Gross Weight (lbs): 831 lbs. Style: Cabinet Saw Prewired Voltage (V.): 230 Table Height from Floor (In.): 35-1/4 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.) 14 Table Size (In.): 26 x 38 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 14 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 1 Recommended Circuit Size (Amps.): 30 Dust Collection Minimum CFM Required (CFM): 600 Table Size with Extensions (In.): 48 x 38 Maximum Depth of Cut at 90 Degrees (In.): 5-1/8 Maximum Depth of Cut at 45 Degrees (In.): 3-1/2 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 15-1/2

Specifications: Motor: 3HP, 1PH, 230V, 14.5A L x W x H (In.): 84.75 x 39.5 x 40.5 Net Weight (lbs): 629 lbs. Gross Weight (lbs): 704 lbs. Style: Cabinet Saw Table Height from Floor (In.): 35 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.): 13-1/2 Table Size (In.): 22 x 30-1/2 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 10 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 5/8 Recommended Circuit Size (Amps.): 20 Dust Collection Minimum CFM Required (CFM): 400 Table Size with Extensions (In.): 42 x 30-1/2 Maximum Depth of Cut at 90 Degrees (In.): 3-1/8 Maximum Depth of Cut at 45 Degrees (In.): 2-1/8 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4

Specifications: Motor: 3 HP Motor Power: 230V Motor Phase: 1 PH single phase Amps: 4.9 Arbor Diameter: 5/8" Arbor Speed: 4500 RPM Blade Diameter: 10" Dust Collection Minimum: 400 CFM Dust Port O.D.: 4" Maximum Depth of Cut at 45 Degree: 2-1/8" Maximum Depth of Cut: 2-1/8 or 3-1/8" Maximum Diameter of Dado: 8" Maximum Rip Left of Blade:13-1/2" Maximum Rip Right of Blade: 50" Maximum Width of Dado: 13/16 T-Slot with Stops Table Type: Cast Iron 50" Rip Fence Router Lift Net Weight: 690 lbs. Ship Weight: 719 lbs. Overall Dimensions: Shipping 84-3/4"L x 39-1/8"W x 40-3/8" H Table Height from Floor: 35" Table in Front of Saw Blade at Maximum Depth of Cut: 10" Table Size: 30-1/2" L x 22" W Recommended Circuit Size: 20 Amp

specification: Router Lift Included Motor: 5HP, 1PH, 230V, 21A L x W x H (In.): 84.75 x 39.5 x 40.5 Net Weight (lbs): 662 lbs. Gross Weight (lbs): 739 lbs. Style: Cabinet Saw Table Height from Floor (In.): 35 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.): 13-1/2 Table Size (In.): 22 x 30-1/2 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 10 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 5/8 Recommended Circuit Size (Amps.): 30 Dust Collection Minimum CFM Required (CFM): 400 Table Size with Extensions (In.): 42 x 30-1/2 Maximum Depth of Cut at 90 Degrees (In.): 3-1/8 Maximum Depth of Cut at 45 Degrees (In.): 2-1/8 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4

Specification: Motor: 5HP, 3PH, 230/460V, 13/6.5A L x W x H (In.): 84.75 x 39.5 x 40.5 Net Weight (lbs): 662 lbs. Gross Weight (lbs): 739 lbs. Style: Cabinet Saw Prewired Voltage (V.): 230 Table Height from Floor (In.): 35 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.): 13-1/2 Table Size (In.): 22 x 30-1/2 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 10 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 5/8 Recommended Circuit Size (Amps.): 20 Dust Collection Minimum CFM Required (CFM): 400 Table Size with Extensions (In.): 42 x 30-1/2 Maximum Depth of Cut at 90 Degrees (In.): 3-1/8 Maximum Depth of Cut at 45 Degrees (In.): 2-1/8 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4

specification: Motor: 5HP, 3PH, 230/460V, 13/6.5A L x W x H (In.): 84.75 x 39.5 x 40.5 Net Weight (lbs): 644 lbs. Gross Weight (lbs): 719 lbs. Style: Cabinet Saw Prewired Voltage (V.): 230 Table Height from Floor (In.): 35 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.): 13-1/2 Table Size (In.): 22 x 30-1/2 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 10 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 5/8 Recommended Circuit Size (Amps.): 20 Dust Collection Minimum CFM Required (CFM): 400 Table Size with Extensions (In.): 42 x 30-1/2 Maximum Depth of Cut at 90 Degrees (In.): 3-1/8 Maximum Depth of Cut at 45 Degrees (In.): 2-1/8 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4

DS20 Disc sander is prefect for professionals or serious home woodworking shop. This model has: Direct drive to disc from motor for maximum efficiency, Extra large sanding surface, Cast iron base , Adjustable tilting work table

Specifications: Motor: 1-3/4HP, 1Ph, 15A, 115V/60Hz Drum speed (rpm): 1725 Dust port: 4” Drum length: 23" Drum diameter: 5” Conveyor speed: 0-10 FPM Conveyor table size: 26" x 21-3/4" Abrasive installed: 80 Grit Maximum board thickness: 4” Minimum board thickness: 1/32” Minimum board length: 2-3/8” Maximum board width: 22" with one pass Maximum board width: 44” with 2 passes Style: floor model - closed stand Net weight: 216 lb - machine only

Specifications: Motor: 1-1/2HP, 1Ph, 14A, 115V 60Hz Drum speed (rpm): 1725 Drum Length: 32" Drum Diameter: 5” Abrasive installed: 80 Grit Dust Port Diameter: 4” Maximum Board Thickness: 3” Minimum Board Length: 2-3/8” Minimum Board Thickness: 1/32” Maximum Board Width: 16" with one pass Maximum board Width: 32” with 2 passes Conveyor Seed: 0-10 FPM Conveyor Table Size: 16" x 39-3/4" Net Weight: 187 lb - machine only

Specifications: Motor: 1-3/4 HP, 1Ph, 15A, 115V/60Hz Drum speed: 1720 RPM Dust port: 4" Drum length: 22-1/4" Drum diameter: 5” Conveyor speed: 0-10 FPM Abrasive installed: 80 grit Maximum board thickness: 4” Minimum board thickness: 1/32” Minimum board length: 3-2/8” Maximum board width: 22" with one pass Maximum board width: 44” with 2 passes Open stand included On/off switch: Toggle with safety key Overall size: 42" L x 24" W x 52" H Style: Floor standing model Net weight: 177 lb - machine only

Specifications: Motor: 1HP, 1Ph, 8A, 115V/60Hz Drum speed (rpm): 1720 Dust port: 4” Drum length: 10" Drum diameter: 5” Conveyor speed: 0-10 FPM Conveyor table size: 10" x 15" Abrasive installed: 80 Grit - 3" wide, Aluminum Oxide Maximum board thickness: 3” Minimum board thickness: 1/32” Minimum board length: 2-3/8” Maximum board width: 10" with one pass Maximum board width: 20” with 2 passes Style: Benchtop Net weight: 73 lb - machine only

Specifications: Motor: 1HP, 1 Ph, 44A, 115/230V/60Hz Spindle Speed (RPM): 1720 Spindle oscillations per minute: 75 Spindle oscillations length: 1-1/2" Spindle lock: Yes Table size (L x W): 24-1/2" x 24-1/2" Table height from floor: 39-3/16" Table tilt: 45° front - 15° back Dust port: 4" Dust collection minimum (CFM): 300 Overall dimensions with 4" sanding drum: 24-1/2" W x 24-1/2" L x 44-3/16" H Net weight: 216 lbs
