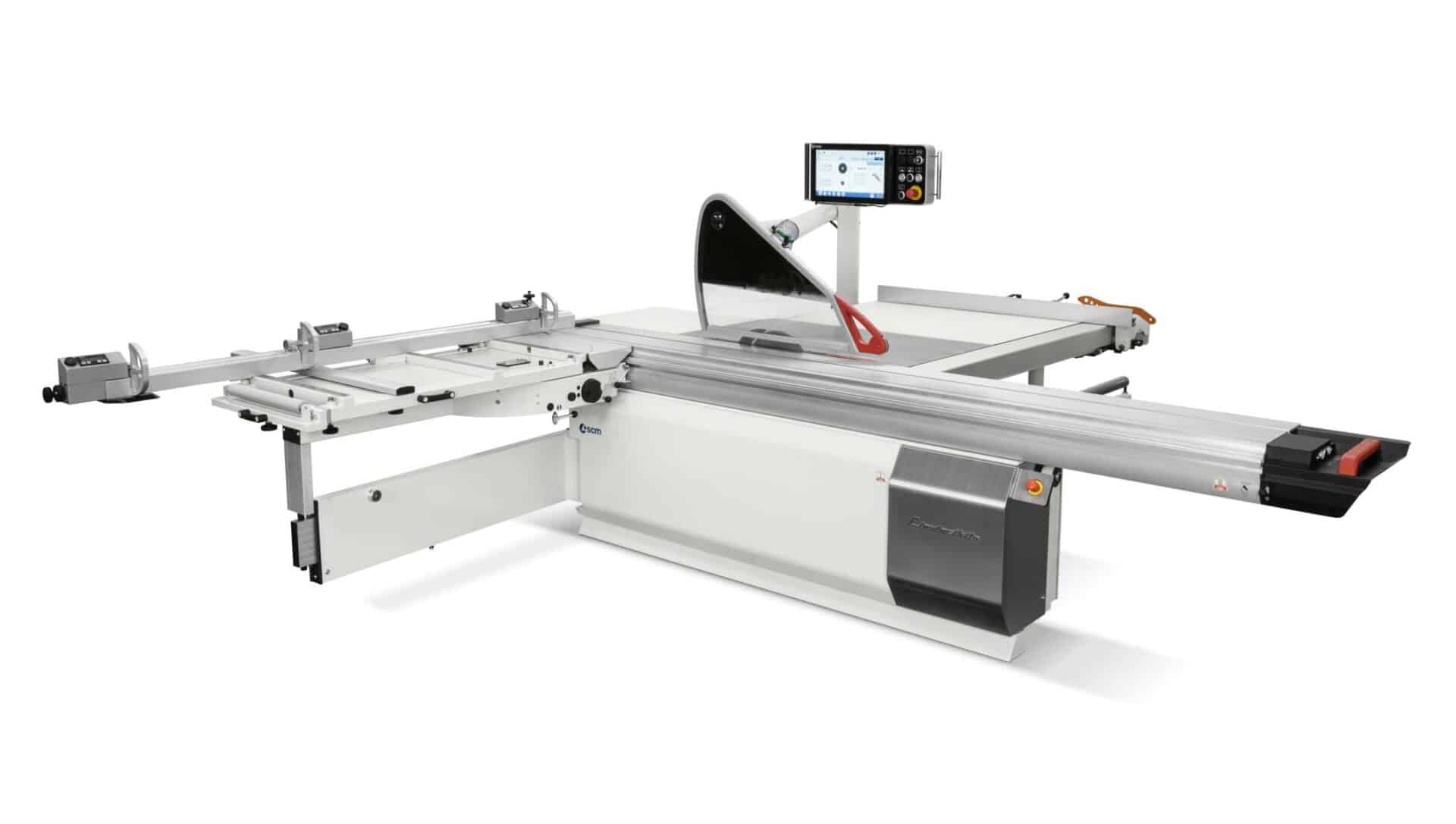

SI X
The advantages of an exclusive choice. Buying a “L’invincibile six” machine means you get a customized solution, thanks to experience, technical research and Italian creativity. Console eye-S main functions: – connectivity among machines belonging to the same company network and 4.0 Industry preset – sharing of work programs and tools database – activity monitoring and reporting on the use of the machine – connectivity with SCM Thundercut (optimizer/sequencer App) – self-diagnosis, tele-service and link to troubleshooting
$65,975.00
Customize
Warranty Information
1 Year Warranty Stock
In Stock Duluth Product Details
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Independent powered scoring unit
- Autotransformer for 220V, 230V, 600V
- Saw blade 400 mm
TECHNICAL FEATURES | ||
Blades tilting | -46° ÷ +46° | |
Max. saw blade diameter | [mm] | 550 (21.62”) |
Max. saw blade projection from table at 90°/+45°/-45° | [mm] | 200/130/105 (7.81 /5.06” / 4.12”) |
Scoring blade diameter | [mm] | 160 (6.31”) |
Squaring stroke | [mm] | 3200 (10.5’) |
Cutting width on parallel fence | [mm] | 1500 (59”) |
Other technical features: | ||
Three-phase motor | 11kW (15hp) 60Hz | |
Exhaust outlets diameter | [mm] | 120 (4.75”) |
USA version Voltage-Frequency |
| 230V-60Hz |
