Lathes

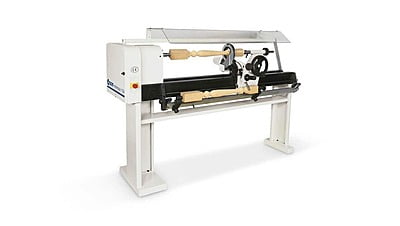

Technical data T 124 Distance between centers, with copying device mm / inches 1150 / 42.25, 1120 / 44 Centers height (Swing) mm / inches 200 (400) / 7.8 (15.75) 4 chuck speeds rpm 570/1000/1850/2500 Single-phase motor Hp 2.5

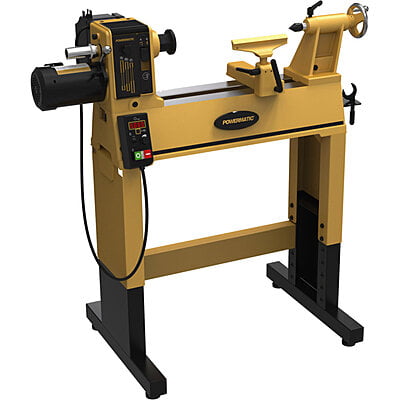

specifications: Motor: 1 HP, 3 PH, 230V, 60 HZ Input Power Requirement: 1 PH, 120V Recommended Circuit: 15 Amp Speed Range: 15-3,600 RPM Spindle Thread: 1-1/4" x 8 TPI Spindle/Quill Taper: MT2 Index Positions: 24 positive locking Swing Over Bed: 14-1/4" Swing Over Tool Rest Base: 10-3/4" Distance Between Centers: 19-1/4" Bed Gap: 1-3/4" Tool Rest: 1" D post x 8" W Overall Dimensions (highest position): 52" x 24" x 48-1/2" Overall Dimensions (lowest position): 52" x 24" x 38" Stand Height: 34'' to 46'' (to centerline of chuck) Shipping Dimensions: 25.56" x 27.56" x 13.78" Shipping Weight: 277 lb.

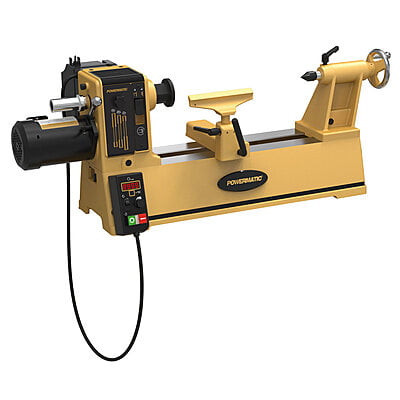

Specifications: Motor: 1 HP, 3 PH, 230V, 60 HZ Input Power Requirement: 1 PH, 120V Recommended Circuit: 15 Amp Speed Range: 15-3,600 RPM Spindle Thread: 1-1/4" x 8 TPI Spindle/Quill Taper: MT2 Index Positions: 24 positive locking Swing Over Bed: 14-1/4" Swing Over Tool Rest Base: 10-3/4" Distance Between Centers: 19-1/4" Bed Gap: 1-3/4" Tool Rest: 1" D post x 8" W Overall Dimensions: 52" x 24" x 18" Shipping Dimensions: 34.25" x 18.9" x 22.83" Shipping Weight: 206 lbs.

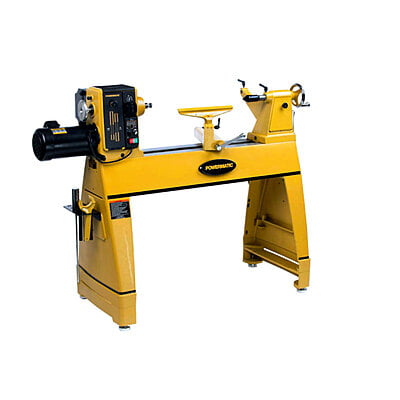

Specifications: Able to maintain speeds as low as 15 RPM Motor: 2HP, 230V, 6.2A, 3PH Dimensions: 30.5" H x 55.25" L x 27.25" W Speed Range: 15-3200 Spindle Threads (In. x TPI): 1-1/4 x 8 Centerline of Spindle to Floor (In.): 40-5/8 without Risers Spindle Bore: 5/8" Headstock Movement: Full Length of Bed Spindle Taper: MT-2 Number of Indexing Positions: 48 Swing Over Tool Rest Base (In.): 15-3/4 Outboard Turning: Yes Distance between Centers (In.): 36 w/dual bearing center Spindle Speeds: Low 15-1200/High 40-3200 Ram Travel Quill Travel: 4-1/2" Bed Construction: Cast Iron Recommended Circuit Size (Amps.): 20 Size (In.): 20 Quill Taper: MT-2 Tailstock Bore: 3/8" Outboard External Threads (In. x TPI): 1-3/16-18 UNC Swing Over Bed (In.): 20 Bed Gap (In.): 2-1/2 Tool Rest Post Diameter: 1"

Motor: 2HP, 3Ph with Inverter, 230V, 6.2A • Swing Over Bed (In.): 20 • Swing Over Tool Rest Base (In.): 17 • Distance Between Centers (In.): 20 • Headstock Movement: Full Length of Bed • Spindle Bore: 5/8 • Tailstock Bore: 3/8 • Spindle Taper: MT-2 • Quill Taper: MT-2 • Ram Travel Quill Travel: 4-1/2 • Spindle Threads (In. x TPI): 1-1/4 x 8 • Outboard External Threads (In. x TPI): 1-3/16-18 UNC • Spindle Speeds: High 125-3200/Low 50-1200 • Speed Range: 50-3200 • Number of Indexing Positions: 48 • Centerline of Spindle to Floor (In.): 44 (adjustable) • Outboard Turning: 88 • Bed Construction: Cast Iron

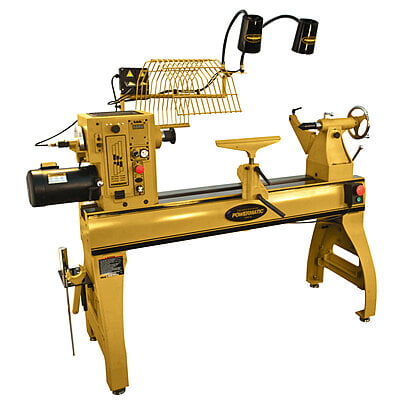

Specifications: Lamp kit included Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features Vacuum system provides quick method of chucking bowl blanks 15-amp quad receptacle for easy reach of powered accessories Two 100W task lamps provide ideal lighting Air nozzle with quick connect for clearing dust/chips Set of dead centers which hold a spindle for visual comparison Laser etched quill is self ejecting 31.5”H x 27”W x 68”L Shipping Weight 960 lbs Swing Over Bed: 24" Swing Over Tool Rest Base: 21" Distance Between Centers: 42" Outboard Turning: 88" Speeds: 40-3500 RPM Headstock Taper: MT-2 Spindle Nose: 1 1/4 " x 8 TPI Hole Through Spindle: 5/8" Tailstock Taper: MT-2 Hole Through Tailstock: 3/8" Ram Travel: 4-1/2" Centerline of Spindle to Floor: 44" Spindle Taper: MT-2 Headstock Movement: full length of bed Indexing Positions: 98 Bed Construction: cast iron Spindle Speeds: 40 - 3500 Motor: 3HP, 220V, Prewired 220V, 3Ph
