Radial Arm Saws

Maggi radial arm saws offer adaptability, versatility, precision and durability to shops of all sizes. Maggi has been producing radial arm saws since 1973 and over the years has continually improved technical design and quality. Heavy castings and the eight bearing saw carriage makes this machine very accurate and rigid. European quality made to last! 4 HP, 2800 RPM motor 400 mm (15.75") Blade diameter capacity (Not included) 30 mm Arbor diameter 73.23" x 45.08" Table size 27.75" Max crosscut length on 3/4" thick material (90 deg) 0 to 40.5" Rip capacity 4.9" Max depth of cut 19.68" Max cut length at 45 deg on right side 12.20" Max cut length at 45 deg on left side Dust chute on blade guard as well as rear of table Machine weight: 495 Lbs. Machine dimensions: 73" x 62" x 61" T Crated dimensions: 56" x 34" x 24" T Crated weight: 523 Lbs. Voltage: 230V 3-Phase

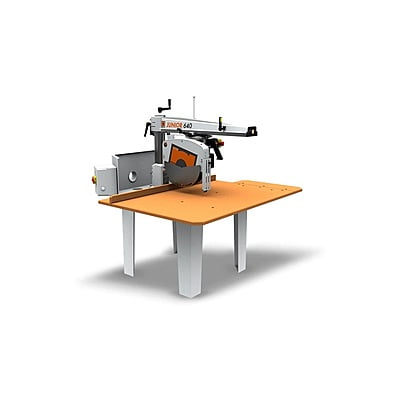

MAGGI JUNIOR 640 CE RADIAL ARM SAW Maggi radial arm saws offer adaptability, versatility, precision and durability to shops of all sizes. Maggi has been producing radial arm saws since 1973 and over the years has continually improved technical design and quality. Heavy castings and the eight bearing saw carriage makes this machine very accurate and rigid. European quality made to last! • 3 HP, 2800 RPM motor • 400 mm (15.75") Blade diameter • 66.50" x 38.39" Table size • 21.5" Max crosscut length on 3/4" thick material • 15" Max cut length at 45 deg. On right side • 7.5" Max cut length at 45 deg. On left side • Dust chute on blade guard as well as rear of table • Machine weight: 447 Lbs. • Machine dimensions: 62" x 55" x 61" T 230 V, 1 Ph, 60 Cy Electrical; 230V 1Ph, 60Cy

Maggi radial arm saws offer adaptability, versatility, precision and durability to shops of all sizes. Maggi has been producing radial arm saws since 1973 and over the years has continually improved technical design and quality. Heavy castings and the eight bearing saw carriage makes this machine very accurate and rigid. European quality made to last! • 1 HP, 2800 RPM motor • 400 mm (15.75") Blade diameter • 66.50" x 38.39" Table size • 21.5" Max crosscut length on 3/4" thick material • 15" Max cut length at 45 deg. On right side • 7.5" Max cut length at 45 deg. On left side • Dust chute on blade guard as well as rear of table • Machine weight: 447 Lbs. • Machine dimensions: 62" x 55" x 61" T ELECTRICAL 230 v, 1Ph, 60Cy

Specification 4 HP, 2800 RPM motor 16" Diameter blade capacity with a 1" arbor 77.5" x 50.5" Table size 33.4" Maximum crosscut length on 3/4" thick material (90 deg) 24.2" Maximum crosscut length at 45 deg (right side) 16.7" Maximum crosscut length at 45 deg (left side) 4.9" Maximum depth of cut Dust chut on blade guard as well as rear of table Machine weight: 649 Lbs. Machine dimensions: 78" x 69" x 63" Tall NOTE: This product requires assembly
