Planers

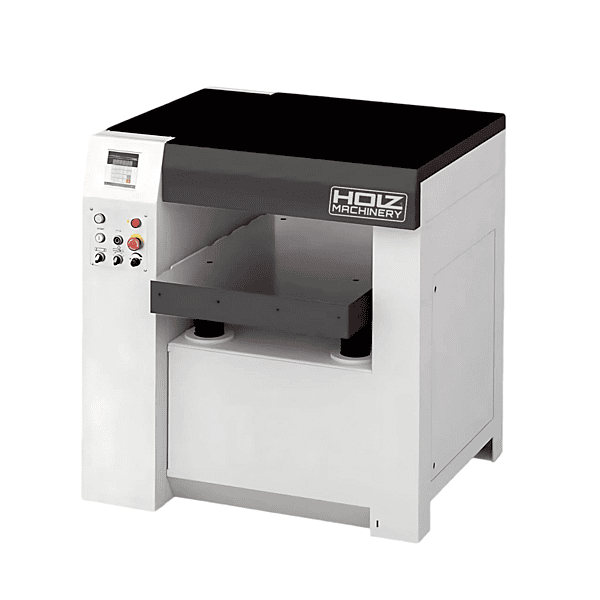

Holz Heavy Duty 24″ Planer Max Width 630mm Max Thickness 300mm Feed Speed 8, 10, 12 m/min Spindle Speed 4800 rpm Blades 4 straight knife Motor 10hp, 220v 3 phase Weight 1380 lbs

15″ Helical Head Planer The helical cutterhead provides smoother, quieter cutting and finer finish than conventional systems Powerful 3HP TEFC motor controlled with a magnetic switch for safety Three V-belts transfer maximum power to the cutterhead Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8″ maximum depth of cut and trouble free operation Large cast iron handwheel positions table quickly and easily Large, precision ground cast iron table and extensions provide maximum workpiece support Two speed gearbox features automatic chain tensioner One-piece welded steel stand has built-in lockable casters Steel top-mounted return rollers speed repetitive cuts Angled dust chute with 4″ port positions collection hose away from the work area while providing efficient chip and dust collection Table locks firmly in place, preventing movement during cutting

• Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels • Digital readout and simple PC controller make quick and easy table height set ups • Segmented serrated infeed roll with segmented chip breakers has 1/4″ independent yield, for planing multiple height stock • Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers • 3″ diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life • Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0″ to 0.050″ at a touch • Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment • Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding • 3 speed feed selector allows you to quickly change feed rates • Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock • Dust hood features built-in 5″ dust chute for efficient dust collection • Helical head with four sided inserts • Dust hood with 5″ diameter dust port • Segmented infeed rollers • Segmented chip breakers • Tool kit with pneumatic screwdriver for removing the cutterhead insert blades • Bed Rollers Adjustable from Front : 0″ to 0.05″ • Column Diameter (in) : 2-1/2 • Cuts Per Minute : 30000 • Cutterhead Diameter (in) : 3-3/8 • Cutterhead Speed (RPM) : 5000 • Dust Collection Minimum CFM Required : 600 • Dust Port Diameter (OD/in) : 5 • Feed Rate (FPM) : 30-25-20 • Height (in): 59 • Length (in): 52 • Maximum Depth of Cut (in) : 1/4 • Maximum Full Width Depth of Cut (in) : 1/8 • Maximum Height of Rollers Parallel to Tabletop (in) : 0.05″ • Maximum Planing Thickness (in) : 9 • Maximum Planing Width (in) : 25 • Minimum Planing Length (in) : 10 • Model Number : WP2510 • Motor HP : 15HP • Motor Phase : 3Ph • Motor Voltage : 230/460V • Net Weight (lb): 1,725 • Number of Knives : 168 Four-sided inserts • Outfeed Roller Diameter (in) : 3 • Overall Dimensions : 52 x 36 x 59 • Part Number : 1791303 • Prewired : Prewired 230V • Readout Scale : in/mm • Rollers (in) : (1) infeed, (2) outfeed • Rotation (Forward/Reverse) : Fwd only • Segmented Infeed Roller Diameter (in) : 3 • Table Height Adjust Manual : 1 handwheel revolution = 1/32″ • Table Size (in) : 32-3/16 x 26 • Table Support : 2 column • Tool Supplied : tool kit • Width (in): 36

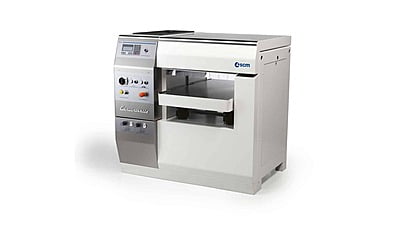

L’invincibile s 7 Cutterhead working width mm / inches 630 /24 With TERSA Straight-knife Cutterhead: Cutterblock diameter / n° of standard knives Dimensions of standard knives mm/n° mm 120/4 630 x 35 x 3 With XYLENT Spiral Helical Cutterhead: Cutterblock diameter / n° of standard knives Dimensions of standard knives mm/n° mm 120/84 15 x 15 x 2.5 Min. – max. planer working height mm / inches 3.5 – 300 / 1 / 3 – 11.75 Planer feed speed m/min 4 – 20 Three-phase motor Hp 15 Max. stock removal mm 8

5hp Motor 20″ Width Specifications: Prewired: 230V Single or Three Phase Dust Collection Minimum CFM Required : 900 Dust Port Diameter (OD/in) : 5 Feed Rate (FPM) : 24 and 31 (16 and 20 with gear change) Height (in) : 41.375 Length (in) : 26 Maximum Depth of Cut (in) : 3/32 Maximum Planing Thickness (in) : 8 Maximum Planing Width (in) : 20 Minimum Planing Length (in) : 6-3/4 Net Weight : 800 lb Number of Speeds : 4 Overall Dimensions : 26 x 36-5/8 x 41-3/8 Readout Scale : in/mm Rotation (Forward/Reverse) : Fwd Table Size (in) : 20 x 55-1/2 Table Support : 4 column Width (in) : 36.625 Shipping weight 890 lb.

Technical data Cutterhead working width mm 630 With TERSA Straight-knife Cutterhead: Cutterblock diameter / n° of standard knives Dimensions of standard knives mm/n° mm 120/4 630 x 30 x 3 With XYLENT Spiral Helical Cutterhead: Cutterblock diameter / n° of knives Dimension of standard knives mm/n° mm 120/105 15 x 15 x 2.5 Min. – max. planer working height mm 3.5 – 300 Planer feed speed m/min 4 – 20 Three-phase motor Hp 12

Type of Cutterhead Straight Knife Knife Size (L x W x T) 22-1/8 x 7/8 x 1/8 Cutterhead Speed (RPM) 4,800 Cutterhead Diameter (In.) 3-1/4 Cuts Per Minute 19,200 Number of Knives 4 Maximum Depth of Cut (In.) 3/16 Maximum Planing Width (In.) 22 Maximum Planing Thickness (In.) 9-1/4 Minimum Planing Length (In.) 10 Feed Rate (FPM) 20/30 Segmented Infeed Roller Diameter (In.) 3 Outfeed Roller Diameter (In.) 3 Bed Rollers Adjustable from Front 2 Table Size (L x W) (In.) 32-1/4 x 24 Table Support 2 Column Dust Collection Minimum CFM Required (CFM) 900 Dust Port Outside Diameter (In.) 5 Motor Power (HP) 7-1/2 Motor Phase 1 Motor Voltage (V.) 230 only Recommended Circuit Size (Amps.) 50

This heavy duty planer offers value, loaded with standard features. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. Anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. Solid cast iron base, table and head are designed for production. Chrome-plated, ergonomic handwheel makes adjustments smooth and easy. cast iron table with extensions creates a big 55-1/2" x20" working area.

Specifications: Style: Floor Standing Type: Straight Knife Cutterhead Number of Knives: 3 Cutterhead Diameter: 2-5/8" Cutterhead Speed: 5200 rpm Maximum Depth of Cut: 3/16" Maximum Full Width Depth of Cut: 1/8" Maximum Planing Width: 15" Maximum Planing Thickness: 6" Minimum Planing Length: 21.5" Feed Rate: 16 FPM - 20 FPM Motor Power: 3 HP Motor Amp: 15A Voltage: 230V Motor Phase: Single Speeds: 2 Table Size with Extensions: 15" x 21.45" Dust Port: 4" (102 mm) Dust Collection Minimum CFM Required: 600 CFM

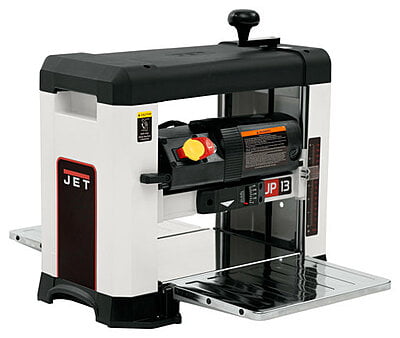

pecifications: Type: Benchtop Planer Style: Helical Cutterhead Motor: 2 HP Motor Amps: 15A Motor Phase: Single phase Motor Voltage: 115V Number of Speeds: 2 Cutterhead Type: Helical Style Cutterhead Speed (No Load): 10,000 RPM Cutterhead Diameter: 2" Number of Knives or Inserts: 24 two-edged high speed steel inserts Cuts Per Minute: 20,000 Maximum Depth of Cut: 1/8" Maximum Full Width Depth of Cut: 1/16" Maximum Cutting Width: 13" Maximum Cutting Thickness: 6" Feed Rate: 18 and 26 feet per minute Table Size: 13" x 9.8" Dust Port: 4" outside diameter

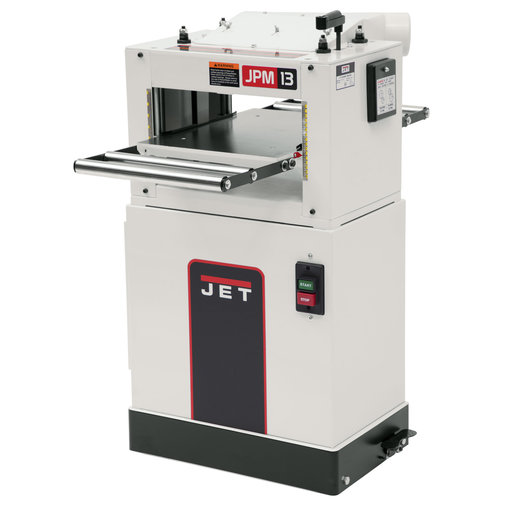

Specifications: Type: Straight Knife Cutterhead Style: Floor Standing Model Motor Type: TEFC - Totally Enclosed, Fan-Cooled, induction Motor Power: 1-1/2 HP Motor Phase: Single (1 Ph) Motor Voltage: 115/230 V Cycle: 60 Hz Prewired Voltage: 115 V Motor Current: 15A / 7.5 A Number of Knives: 3 Knife Size (L x W x H): 13-1/16" 1/8" x 5/8" Cutterhead Speed: 4500 RPM Cutterhead Diameter: 2-9/16" Maximum Planing Width: 13" Maximum Planing Thickness: 6-1/8" Full Width Depth of Cut: 1/16" Minimum Planing Length: 14" Cuts Per Minute: 13500 Feed Rate - Planing: 20 FPM Feed Rate - Molding: 10 FPM Dust Port Diameter: 4" Minimum Dust Extraction Volume Required: 350 CFM Overall Dimensions (W x D x H): 23-31/32" x 36-1/2" x 43-1/2" Net Weight: 225 lbs.

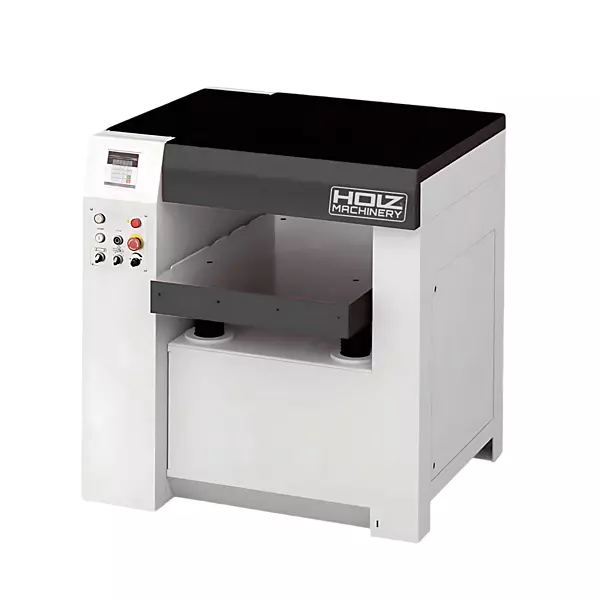

• Max Width 630mm • Max Thickness 300mm • Feed Speed 8, 10, 12 m/min • Spindle Speed 4800 rpm • Spiral Cutterhead • Motor 7.5hp, 220v 3 phase • Weight 1380 lbs
