Shapers

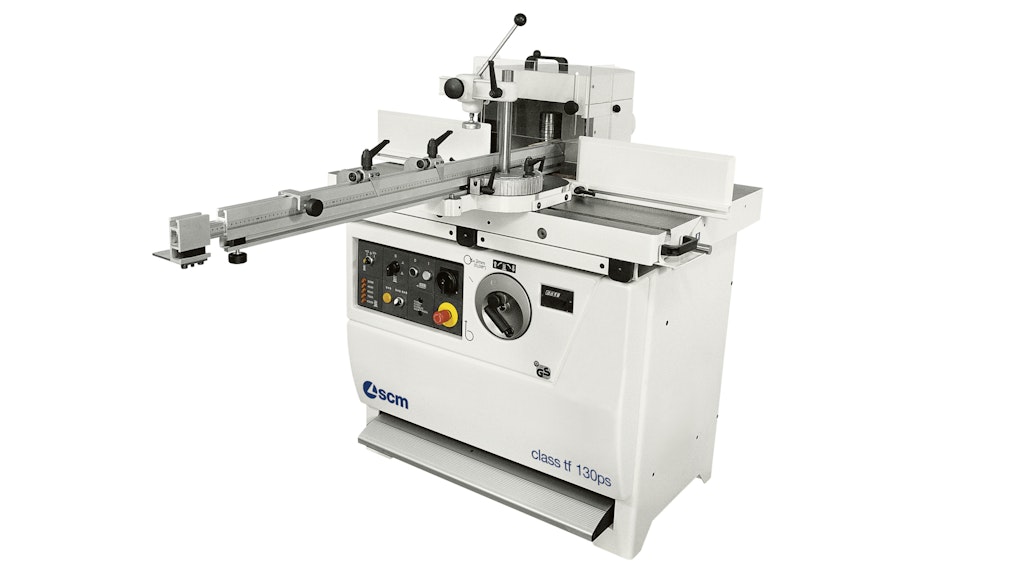

The Class TF 130PS is the workhorse of the SCM shaper line. It has a very robust structure and all the controls can be accessed on the front of the machine for easy use. An integrated sliding table further increases the flexibility of this machine. A mechanical digital reader ensures the precision of the spindle adjustment. 3ph/ 220V 11HP fixed 1 1/4 MK5 interchangeable spindle 5-speed Aluminum fence w/ mechanical adjustment Sliding table Tenoning kit

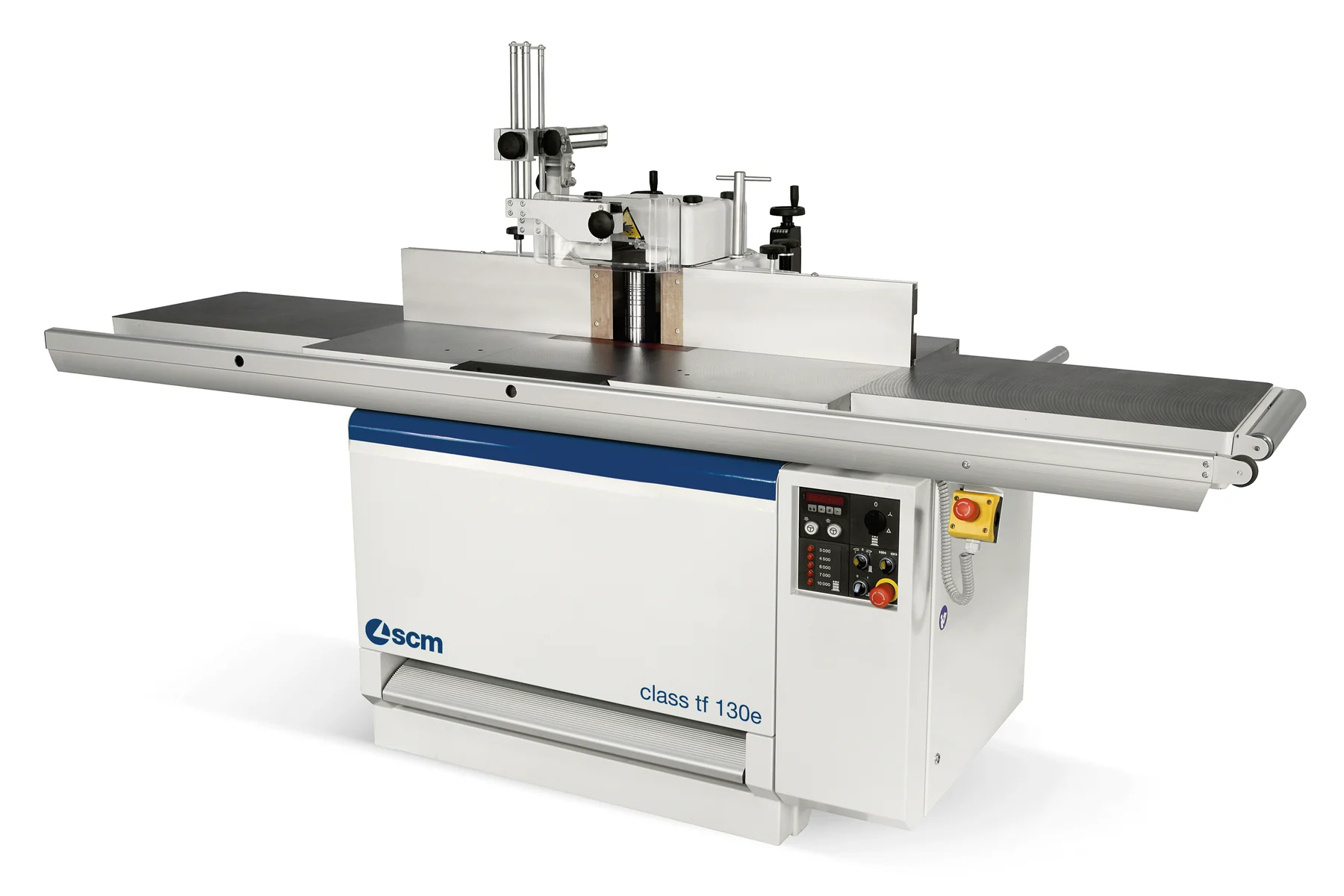

A must for the serious woodworker, the Class TF 130 is the SCM shaper that combines quality and value for your investment. It has a very robust structure and all the controls can be accessed on the front of the machine for easy use. A mechanical digital readout ensures the precision of the spindle adjustment. 3ph /220V 11 HP Fixed 1 1/4 " MK 5 interchangeable spindle 5-speed aluminum fence w/ mechanical adjustments

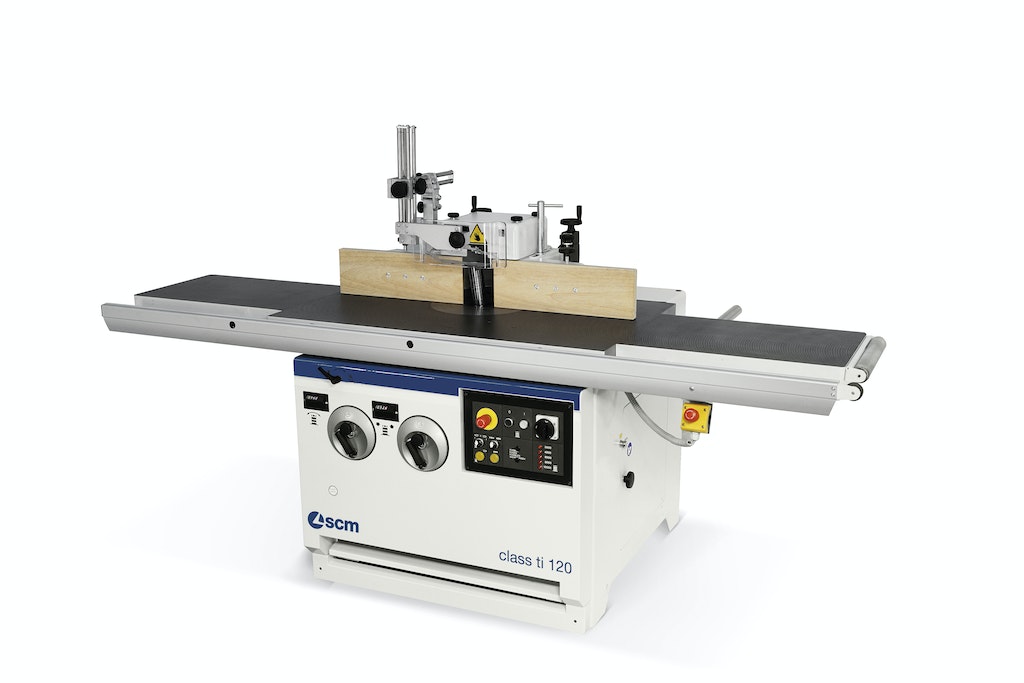

The Class TI 120 is one of SCM Groups finest manual tilting spindle shapers. The tilting spindle allows craftsmen to use more creativity in designing high-end, custom products. The quality and flexibility of this machine are especially appealing to architectural millwork operations.

Holz Paoloni Fixed Spindle Shaper Main spindle speed r/min 1300/2500/3500/5000/6000/8500 Spindle diameter 1 1/4″ Max height 5.9″ Table size 1200×700 mm Main Motor 5.5hp Overall dimensions 1200×800×1240 mm Net weight 838 lbs

Technical data Max. useful spindle length 140 / 5.5 mm / inches Spindle speed 3000/4500/6000/7000/10000 rpm Max. diameter of the profiling tool 250 / 9.8 mm / inches Max. tool diameter retractable under the table at 90° 320 / 12.6 mm / inches Max. diameter of the tenoning tool 300 / 11.8 mm / inches Three-phase motor power 10 Hp

Technical data Max. useful spindle length 140 / 5.5 mm / inches Spindle speed 900 – 12000 rpm Max. diameter of the profiling tool 250 / 10 mm / inches Max. tool diameter retractable under the table at 90° 300 / 11.8 mm / inches Max. diameter of the tenoning tool 300 / 11.8 mm / inches Three-phase motor power 13 Hp

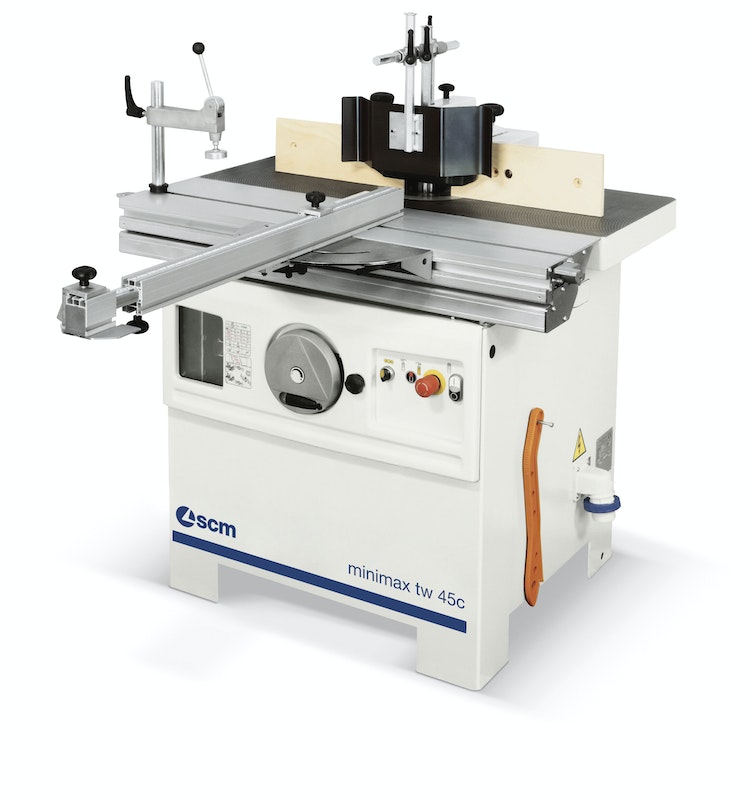

Fixed Spindle Shaper The Minimax TW 45C is a 4 horsepower spindle moulder, with sliding table and a fixed spindle. It is versatile and easy to use, ideal for woodworkers and craftsmen. Featuring a standard 1.25” spindle with dual exhaust ports, T-slot on front of the table, and miter gauge for angled cuts, flip-stops and eccentric clamp. STANDARD EQUIPMENT  -Forward/ reverse-run switch  -T-Slot on front of table  -Micro-adjustable infeed and outfeed fences  -1.25” spindle standard  -Quick spindle lock for tool changes  -Dual exhaust outlets  -Tool set and manual included  -Miter gauge  -Two flip-stops  -Eccentric clamp

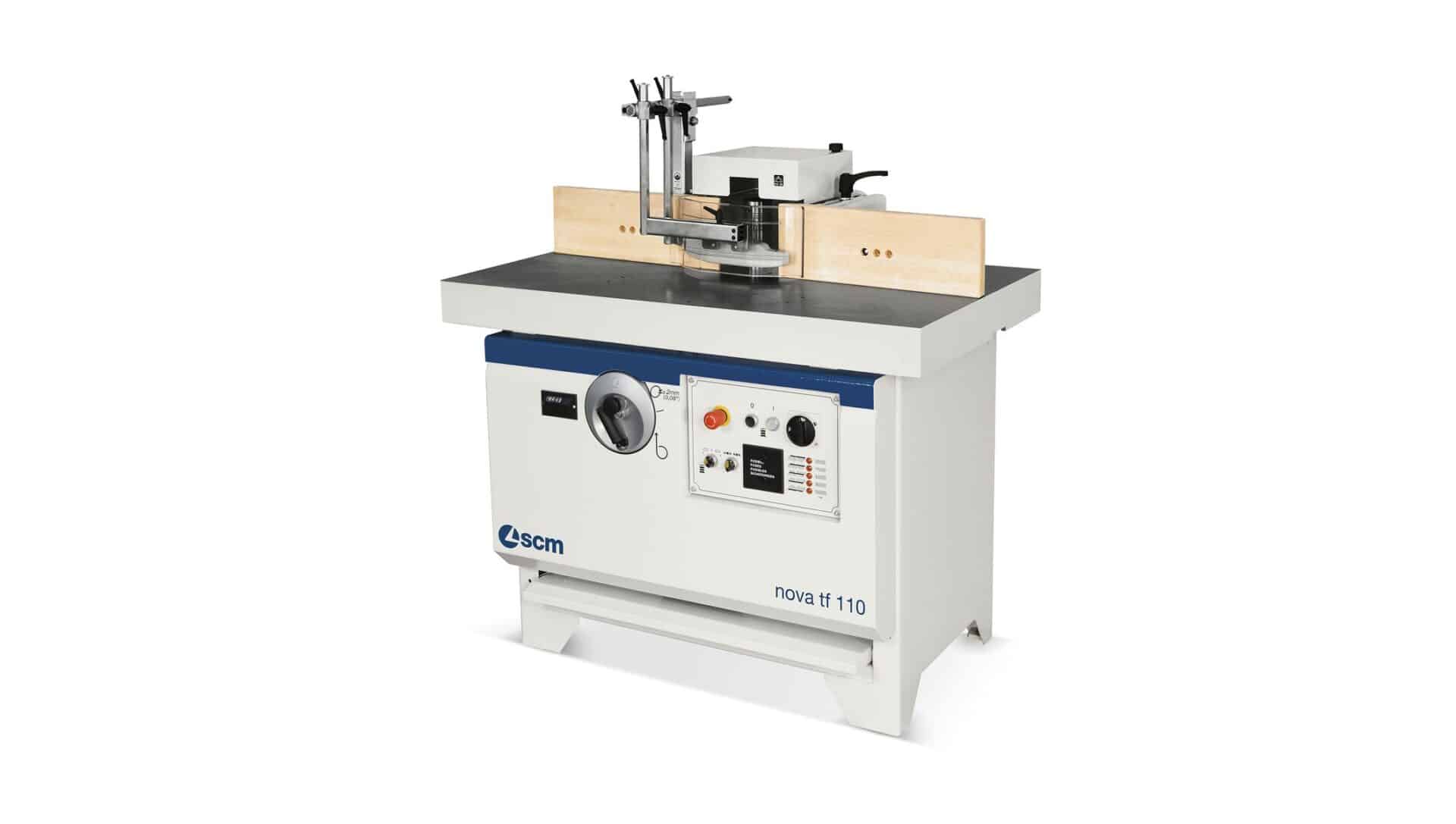

Technical data Nova tf 110 Max. useful spindle length 140 / 5.5 mm / inches Spindle speed (at 50 Hz) 3000/4500/6000/7000/10000 rpm Max. diameter of the profiling tool 250 / 9.8 mm / inches Max. tool diameter retractable under the table at 90° 320 / 12.6 mm / inches Max. diameter of the tenoning tool with spindle diam. 30-35 (40-50) 300 / 11.8 mm / inches Three-phase motor 8 Hp

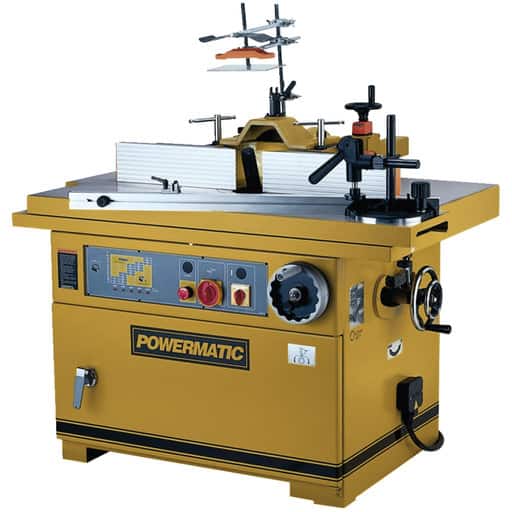

• Dust Collection Minimum CFM Required : 800 • Dust Port Diameter (OD/in.) : 5 (dual ports) • Electrical Controls – Magnetic Starter : 24V Magnetic • Fence Size (L x H/in.) : 46 x 5 • Fence Travel (Major and Minor/in.) : 5-3/8 and 3-5/8 • Height (in): 53 • Length (in): 51 • Maximum Diameter Cutter Above Table (in) : 12 • Maximum Diameter Cutter Below Table (in) : 9 • Motor HP : 7-1/2HP • Motor Phase : 3PH • Motor Voltage : 230/460V • Net Weight (lb): 1,100 • Overall Dimensions : 51 x 44 x 53 • Part Number : 1791284 • Prewired : Prewired 230V • Reversible : Yes • Router Bit Collet Diameter (in) : 1/4 and 1/2 • Slide Table Size (in) : 11-1/4 x 51-1/4 • Spindle Diameter (in) : 3/4, 1, and 1-1/4 • Spindle Size Under Nut (in) : 3/4 Spindle – 3-1/2, 1 Spindle – 6-1/4, 1-1/4 Spindle –6-1/4 • Spindle Speed (RPM) : 3000, 4000, 6000, 8000, and 10,000 • Spindle Travel (in) : 7 • Table Inserts : one tilting, two straight • Table Size (in) : 51-1/2 x 33-1/2 • Table Travel (in) : 49-1/4 • Tilting Spindle (deg.) : 5° back, 45° forward • Width (in): 44 • Shipping weight 1,280 lb.

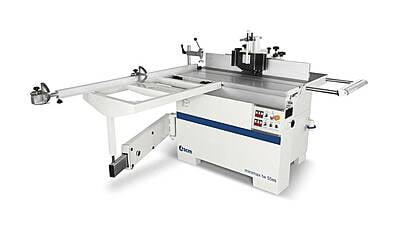

The right spindle moulder for demanding craftsmen and carpentries, thanks to its customization and flexibility. The minimax tw 55es is the culmination of years of experience in manufacturing quality solid wood SCM products. This 4-speed heavy duty machine is standard with both a sliding table and tilt! The slider has hardened steel guide ways and precision bearings, so it incorporates the exact technology found in our top selling sliding table saws! The hood has memory pins so if removed, it will go right back into the same position, making this shaper accurate and repeatable.

Technical Specifications Worktable Dimensions: 1200 x 730mm Working Length of Spindle (C.E.) Diam. 30-35 (40-50): 140mm (180) Spindle Base Projection from Table: 52mm Spindle base projection from table with interchangeable spindle: 92mm Max tool diam. retractable under worktable with rings (with "Fast" section table): (300 x 85mm) Spindle fence stroke w/ mechanical programming (positioning with respect to the spindle axis): 125mm (from -125 to +125) External diameter of exhaust outlet on spindle moulder hood: 120mm External diameter of exhaust outlet on base (for the forced electrospindle aircooling 7.5 kW): 120mm Air flow speed of exhaust system: 20 M/sec Exhaust system air consumption: 1700 M3/hr

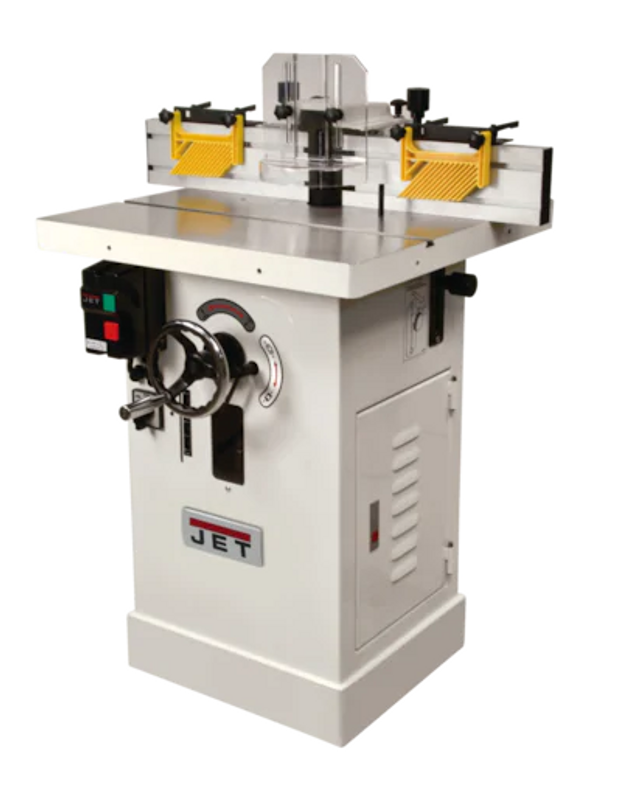

Specification Spindle Travel (In.): 3-1/2 Table Size (L x W) (In.): 25-1/2 x 25 Table Opening Diameter (In.): 6-9/32 Table Inserts (In.): 2 Motor Power (HP): 3 Table Height from Floor (In.): 33 Dust Collection Minimum CFM Required (CFM): 600 Dust Port Outside Diameter (In.): 4 Motor Voltage (V.): 230 Prewired Voltage (V.): 230 Motor Amps: 16

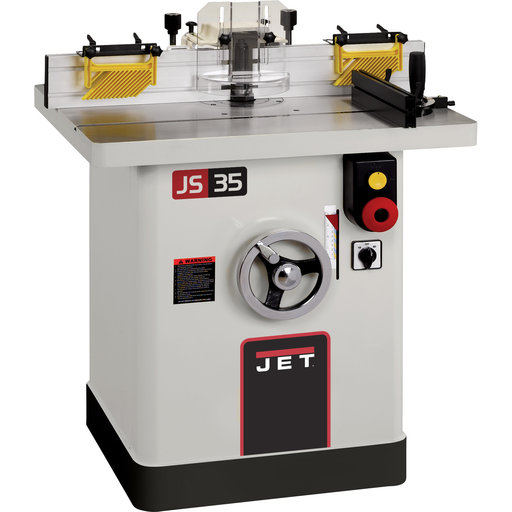

Specifications: Motor: 3HP, 1Ph, 14A, 230V/60Hz Table Size (L x W): 32-1/4" x 26-3/4" Table T-Slot: 3/4" W x 3/8" D Table Height from Floor: 34" Table Opening Diameter: 6-19/64" Insert Opening Diameters: 2-9/16" and 4-5/16" Spindle Size (Standard): 1-1/4" Interchangeable Spindle Capacity Under Nut: 1-1/4" Spindle - 4-3/32" Spindle Travel: 4" Spindle Speeds (RPM): 4000, 6000, 8000, 10000 Reversible: Yes Fence Size: 4-7/8" H x 16" W Dust Collection Minimum CFM Required: 600 Dust Port Diameter: 4" Overall Size (L x W x H): 32-1/4" x 28-1/4" x 42-3/8" Net Weight: 475 lb

Motor: 5HP, 1Ph, 17A, 230V/60Hz Table Size (L x W): 32-1/4" x 26-3/4" Table T-Slot: 3/4" W x 3/8" D Table Height from Floor: 34" Table Opening Diameter: 6-19/64" Insert Opening Diameters: 2-9/16" and 4-5/16" Spindle Size (Standard): 1-1/4" Interchangeable Spindle Capacity Under Nut: 1-1/4" Spindle - 4-3/32" Spindle Travel: 4" Spindle Speeds (RPM): 4000, 6000, 8000, 10000 Reversible: Yes Fence Size: 4-7/8" H x 16" W Dust Collection Minimum CFM Required: 600 Dust Port Diameter: 4" Overall Size (L x W x H): 32-1/4" x 28-1/4" x 42-3/8" Net Weight: 475 lb
