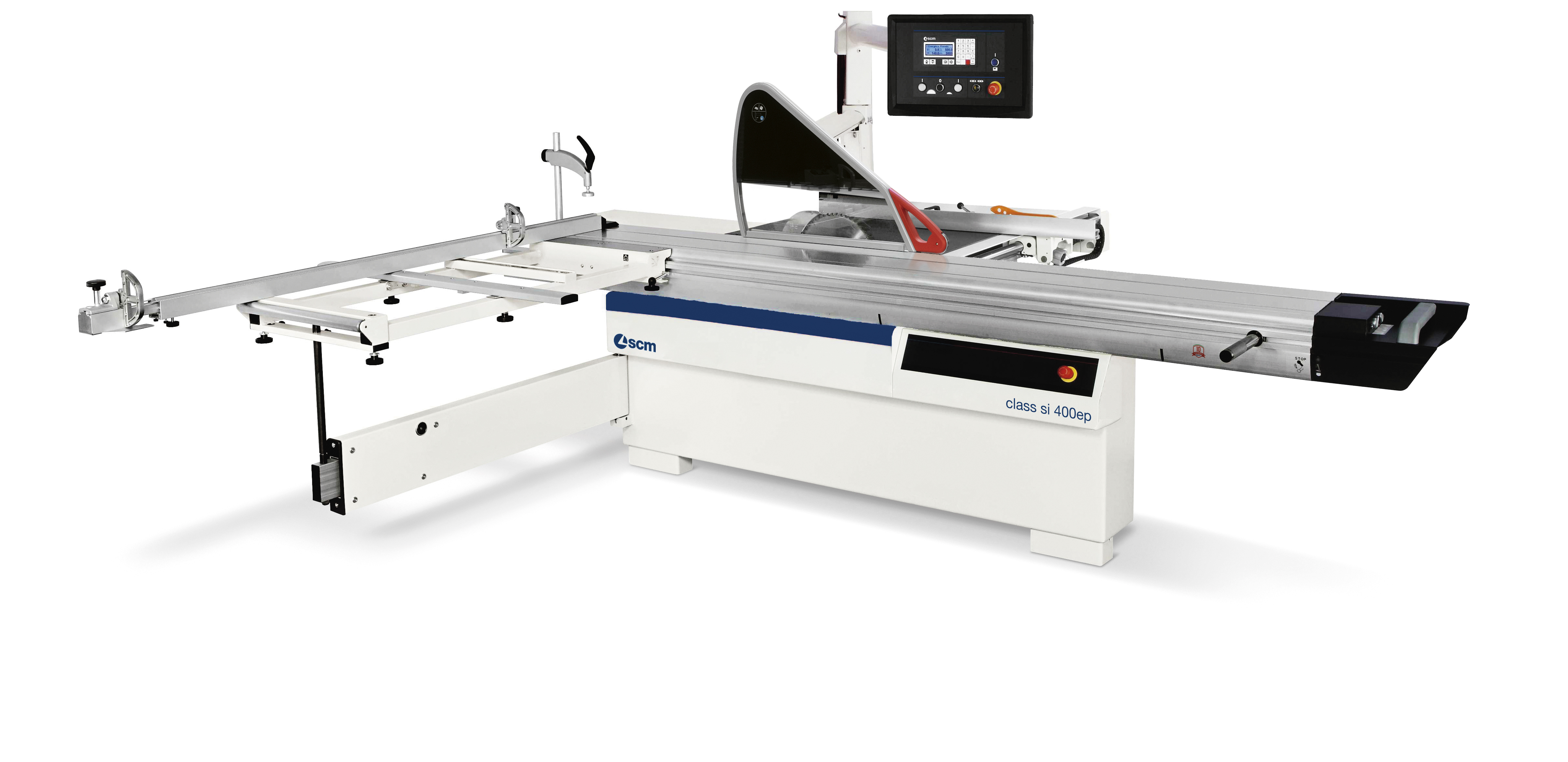

Class SI 400 EP

TECHNICAL FEATURES Blades tilting 90° ÷ 45° Max. saw blade diam. with scoring blade installed mm (in) 400 (15.75”) Max. saw blade projection from table at 90°/45° mm (in) 140/97(5.5 / 3.81”) Scoring blade diameter mm (in) 120 (4.75”) Squaring stroke mm (in) 3200 (10.5’) Cutting width on parallel fence mm (in) 1500 (62.94”) Other technical features: Three-phase motor 11kW (15hp) 60Hz Exhaust outlets diameter 120 (4.75”) MINIMUM INSTALLATION REQUIREMENTS Power absorption A 42 Voltage frequency 230V 60Hz
