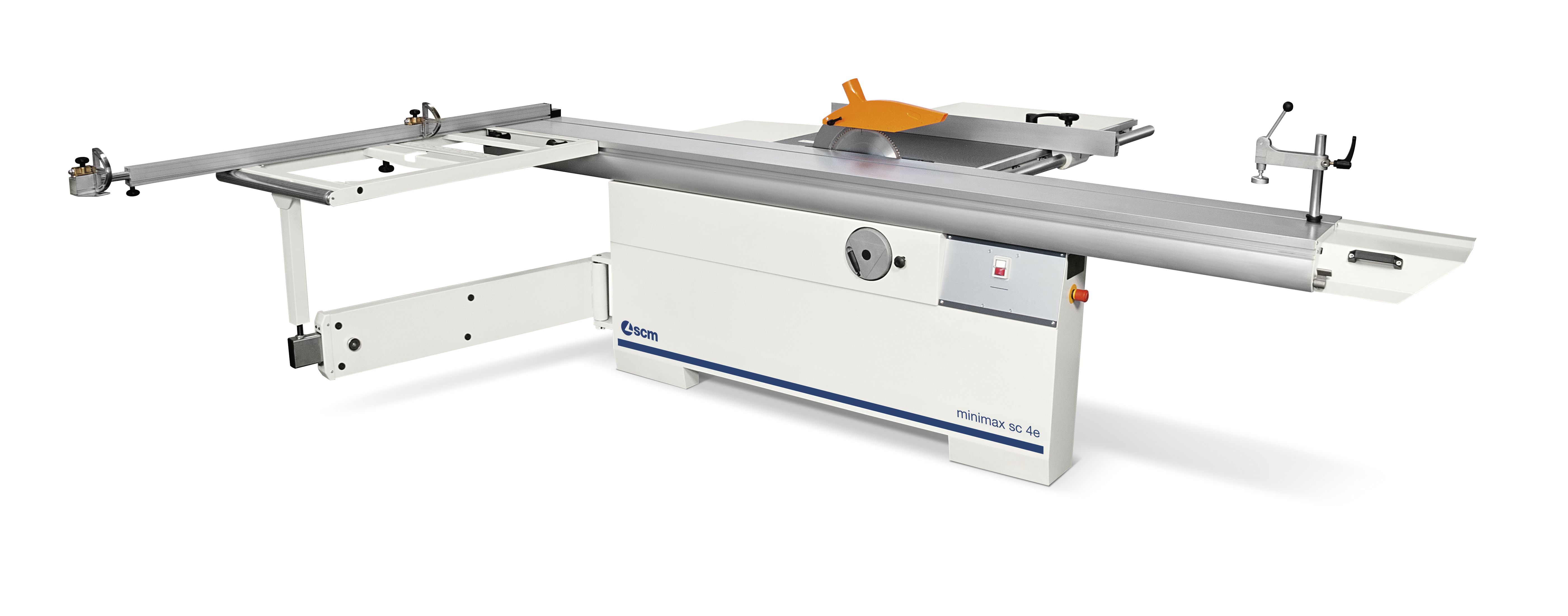

SC 4E
The sc 4e is a circular saw with tilting blade for demanding craftsmen and woodworkers which combines working accuracy with ease of use and saving.
The perfect entry-level production machine for small cabinet shops. Affordable, without compromising quality. Solid cast iron saw unit tilting on double trunnions and adjustable scoring unit from the outside of the machine.
A perfect cut result is guaranteed by the saw unit constituted by a mighty, cast iron structure. This machine boasts a full 8.5’ stroke, and features normally found on much more expensive machines, for a fraction of the cost.
$10,975.00
Customize
Warranty Information
1 Year Parts Factory Warranty Stock
In Stock Product Details
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Version with maximum squaring stroke 2600 mm
- Belt driven scoring unit complete with blade
- "DADO SET" capability
- Angular cutting device with flip-over stops
- Additional table on the sliding table
- Cutting width with parallel fence 1270 mm
- Numerical radout for the visualisation of the saw unit tilting
- Single-phase motor 3,6kW (4,8hp) 60Hz
- Saw blade 300mm
| TECHNICAL FEATURES | ||
| Cast iron worktable dimensions | mm(in) | 840 x 560 (33.06 x 22”) |
| Blade tilting | mm(in) | 90° ÷ 45° |
| Max. blade diameter with scoring blade installed | mm(in) | 315 (12.37”) |
| Max. saw blade projection from table at 90°/45° | mm(in) | 100/71 3.94/2.81”) |
| Max. squaring stroke | mm(in) | 2600 (102.37”) |
| Cutting width on parallel fence | mm(in) | 1270 (49.94”) |
| Other technical features: | ||
| Single-phase motor | mm(in) | 3,6kW (4,8hp) 60Hz |
| Exhaust outlets diameter | mm(in) | 120 (4.75”) |
| MINIMUM INSTALLATION REQUIREMENTS | ||
| Section of electrical cable | mm2(in2) | 6 (0.25”) |
| Power absorption | A | 20 |
| Voltage - frequency | 230V - 60Hz |
