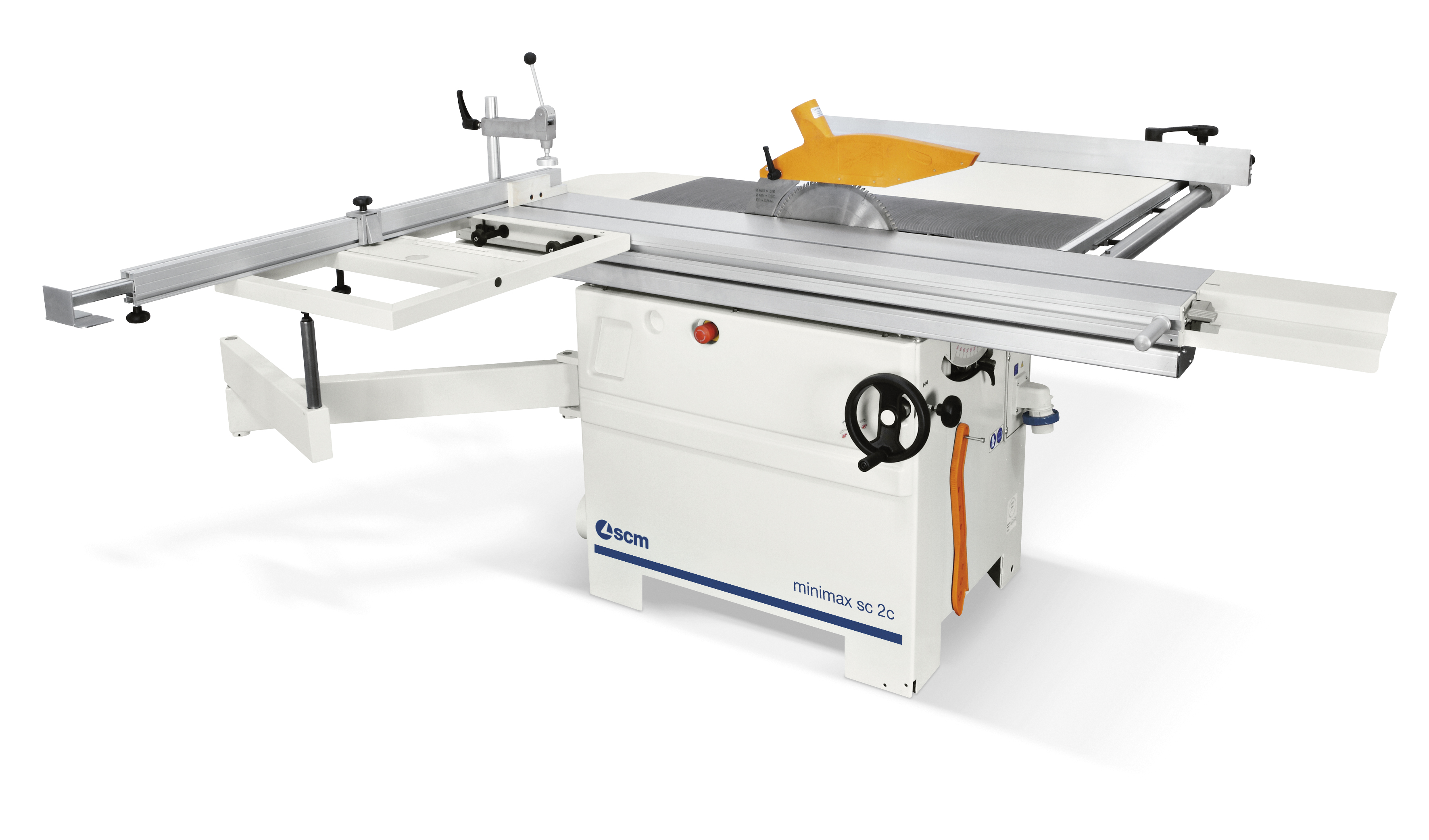

SC 2C
The minimax sc 2c is a precise, compact and with a low investment circular saw with tilting blade, ideal for small spaces and for those who do not want to give up the reliability of SCM joinery machines.
An important feature is the presence of the scoring unit, which can be easily adjusted from the outside of the machine, as well as a surprising cut of both thick solid wood and even upgraded panels, with the saw unit with a 315mm (12.37”)maximum diameter blade which guarantees a 100mm cutting height with installed scorer.
An important feature is the presence of the scoring unit, which can be easily adjusted from the outside of the machine, as well as a surprising cut of both thick solid wood and even upgraded panels, with the saw unit with a 315mm (12.37”)maximum diameter blade which guarantees a 100mm cutting height with installed scorer.
$6,475.00
Customize
Warranty Information
1 Year Parts Only Factory Warranty Product Details
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Belt driven scoring unit complete with blade
- Cutting width with parallel fence 1270 mm
- 2 squaring flip-over stops
- Single-phase motor 3kW (4hp) 60Hz
TECHNICAL FEATURES |
| |
Cast iron worktable dimensions | mm (in) | 1020 x 325 (40.12 x 12.81”) |
Blade tilting | mm | 90° ÷ 45° |
Max. blade diameter with scoring blade installed | mm (in) | 315 (12.37”) |
Max. saw blade projection from table at 90°/45° | mm (in) | 100/78 (3.87 / 3”) |
Max. squaring stroke | mm (in) | 1600 (62.94”) |
Cutting width on parallel fence | mm (in) | 1270 (49.94”) |
Other technical features: |
| |
Single-phase motor | 3kW (4hp) 60Hz | |
Exhaust outlets diameter | mm (in) | 120 (4.75”) |
USA version Voltage-Frequency | 230V-60Hz |
