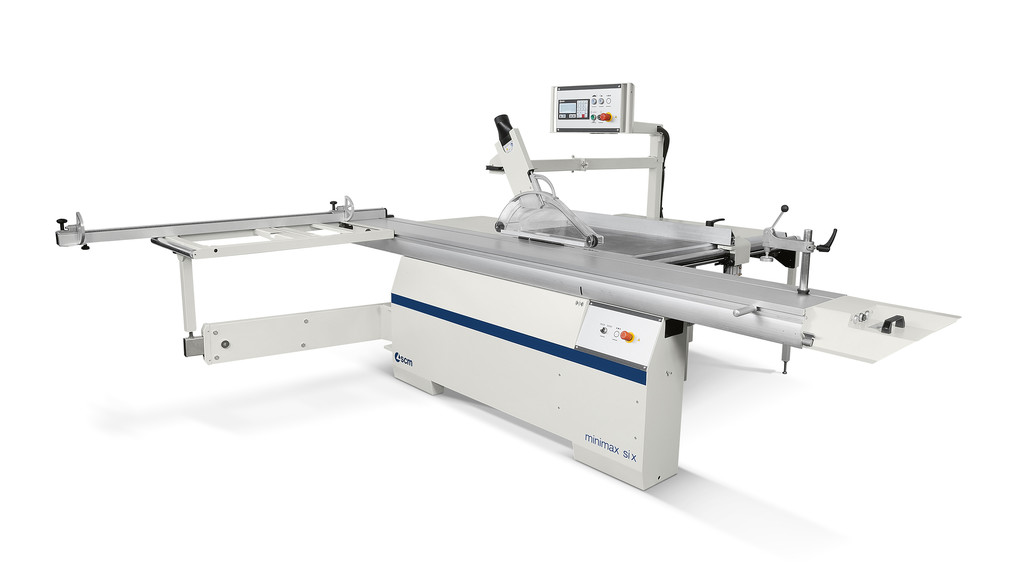

Minimax SI X READY 3UP

TECHNICAL SPECIFICATIONS cast iron saw worktable dimensions 1,000 x 685 mm (39.31” x 26.94”) blade tilting -46° ÷ +46° max. saw blade Ø (with scoring blade installed) 400 mm (15.69”) Saw blade arbor size 25.40 mm (1”) Scoring blade diameter 160 mm (6.25”) Scoring blade arbor size 20 mm (0.75”) max. saw blade projection from table at 90°/+46°/-46° (400 mm saw) 136 / 97 / 60 mm (5.31” / 3.81” / 2.31”) Main blade speed 4,000 rpm Scoring blade speed 6,000 rpm max. squaring stroke 3,200 mm (10.5’) cutting width on parallel fence 1,270 mm (49.94”) exhaust outlets diameter Frame outlet Saw guard outlet 120 mm (4.69”) 80 mm (3.12”) Installation requirements Nominal extraction air consumption 1,647 m3 /h (955 CFM) Air exhaust speed 20 m/s (66 ft/s) Main motor power 9 kW – 11 hp Scoring blade motor power 0.9 kW – 1.3 hp Electrical requirements ***subject to change; must be verified prior to installation*** 220 V – 60 Hz – 3 phase – 31 amp (Reccomended 40 amp circuit breaker)
