Presses

Main configurations: 160 tons of three-layer hot press technical parameters: Hot plate size: 2500✘1300mm height 100mm*42mm Nominal pressure: 160 tons Number of hot plates: 3 sheets Spacing between layers: 100mm Hydraulic station power: 7kw Heating power: 36kw Hydraulic oil model: Heat transfer oil temperature: 180-200°C Equipment weight: about 8 tons Size: width 1700✘ length 3800✘2200 (height) mm

Platen dimensions 3,200 x 1,600 mm (126 x 63 in.) Number of daylights 1 Total cylinder stroke 400 mm (15 3⁄4 in.) Number of pressing cylinders 8 Cylinder diameter 70 mm Total thrust 120 metric tons (264,554) Max. laminating pressure on 80% of platen area 2.94 kg/cm2 (41 psi) Hydraulic pump 2.1 kw (2.8 hp) Boiler power 18 kw Maximum platen temperature 120o C (248o F)

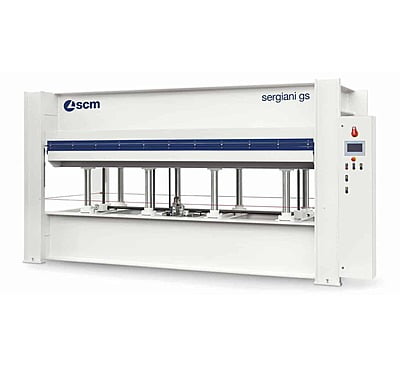

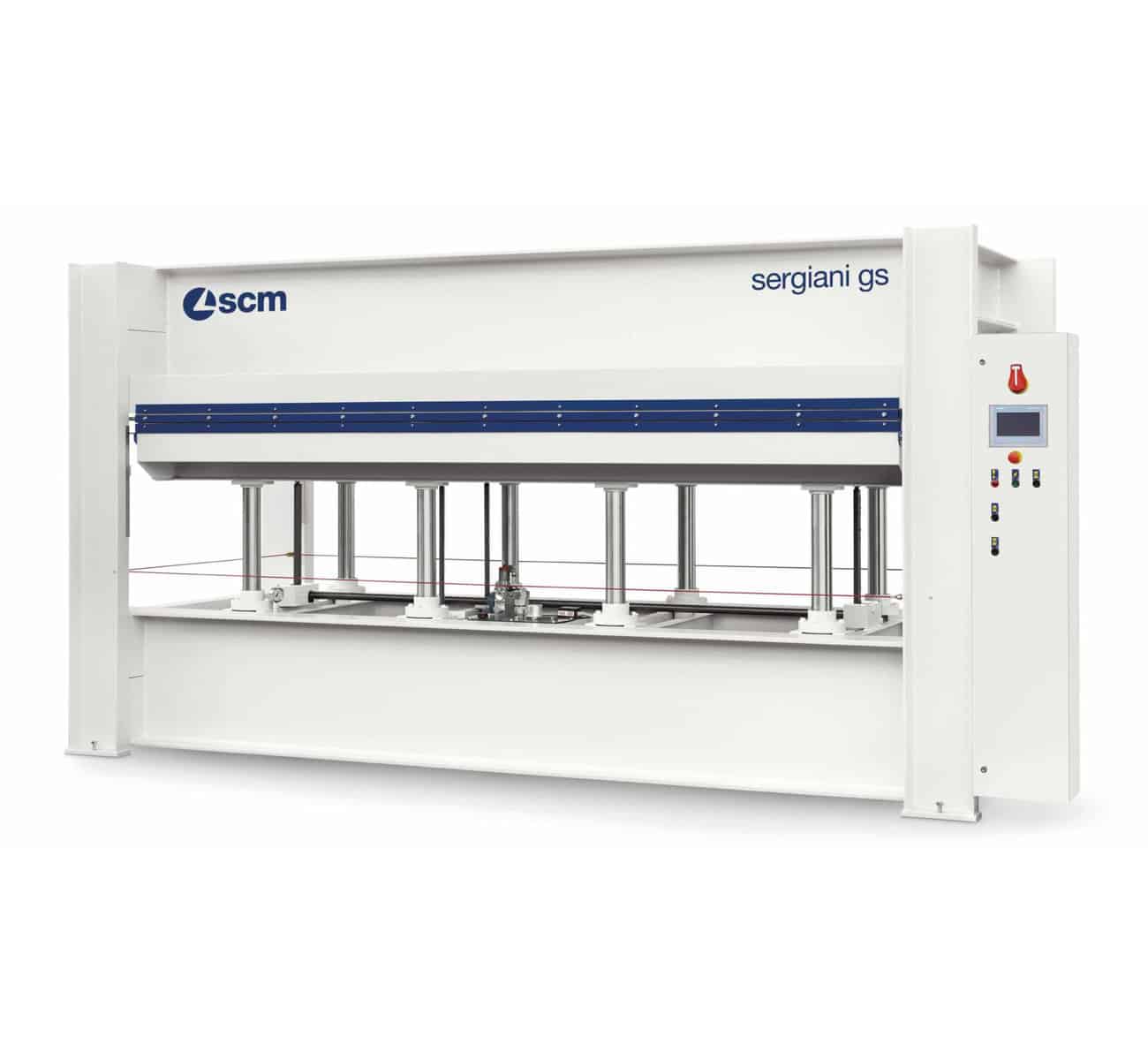

About this Machine: The Sergiani GS is a Press with electronic control and manual loading/unloading: the unique solutions and the utmost precision of the mechanical machining operations ensure high surface and gluing quality of the product being pressed. Highly versatile, it can be used for veneered panels, hollow-core doors and multi-layered panels. Available in numerous versions that can be configured with a vast range of accessories to meet all types of pressing requirements. Tech Specs: 6 cylinders / 120 tons, solid platens, 3100 x 1600 mm (5’x10′) Press with electronic control and manual loading/unloading: the unique solutions and the utmost precision of the mechanical machining operations ensure high surface and gluing quality of the product being pressed. Highly versatile, it can be used for veneered panels, hollow-core doors and multi-layered panels. Available in numerous versions that can be configured with a vast range of accessories to meet all types of pressing requirements. STRUCTURE QUALITY The sturdy structure has been engineered with a high safety coefficient to guarantee the highest level of resistance and rigidity in each processing phase. HYDRAULIC CYLINDERS The steel rod is chromed with a thick layer and rectified, all gaskets are high resistance to guarantee long lifetime and perfect seal. CONTROL PANEL WITH SIEMENS COLOUR TOUCH SCREEN The new control panel is equipped with a software that allows to automatically calculate the hydraulic pressure, manage the heating system, carry out a complete diagnostic, program and save all working parameters.

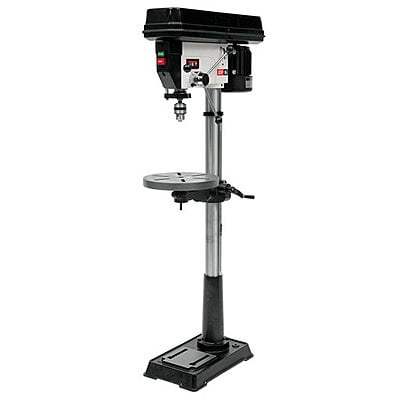

Specifications: Product: Drill Press Style: Floor Model Motor Power: 3/4 HP Motor Phase: Single Motor Voltage: 115/230V Motor Amps: 9A/4-1/2A Prewired: 115V Number of Spindle Speeds: 16 Maximum No-Load Spindle Speed Range: 200-3630 RPM Swing: 16-1/2" Maximum Spindle Travel: 4-3/8" Maximum Spindle Distance to Table: 29-1/8" Maximum Spindle Distance to Base: 49" Spindle Taper: MT-2 Chuck Style: Keyed Chuck Size: 5/8" Column Diameter: 3-1/8" Table Size - Diameter: 13-3/4" Table Tilt: 45° Left and Right Base Size (L x W): 12-1/2" x 19-5/8" Overall Height: 66" Weight: 189 lbs.

Specification: Drive Type Variable Speed Pulley Swing Distance 12 in Swing Distance (Decimal Inch) 12.0000 Swing Distance (Inch) 12 Spindle Speed Control Variable Speed Pulley Phase Single Spindle Taper Size 2MT Minimum Spindle Speed (RPM) 530

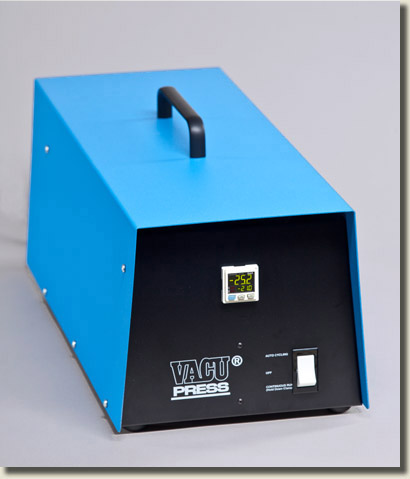

1/3 HP two chamber rocking piston oil-less vacuum pump with thermal overload protection Aluminum alloy vacuum chamber, prevents internal corrosion 6 cfm vacuum rate for short evacuation time Maximum vacuum 27″ HG / automatic shutoff at 25″ HG (1774 lbs. per sq. foot) Easy access, see through filter jar for dust removal Quick disconnect hose between pump and bag Precision digital vacuum switch with LED display. Easy to set turn on and turn off points Vacuum gauge and lighted on/off switch for monitoring vacuum process Dual power switch for both vacuum pressing and vacuum clamping Pump dimensions:9 1/2″ W x 10″ H x 24″ L Weighs 45 pounds Operators manual with complete instructions on pressing veneers, curved work, glues and vacuum clamping

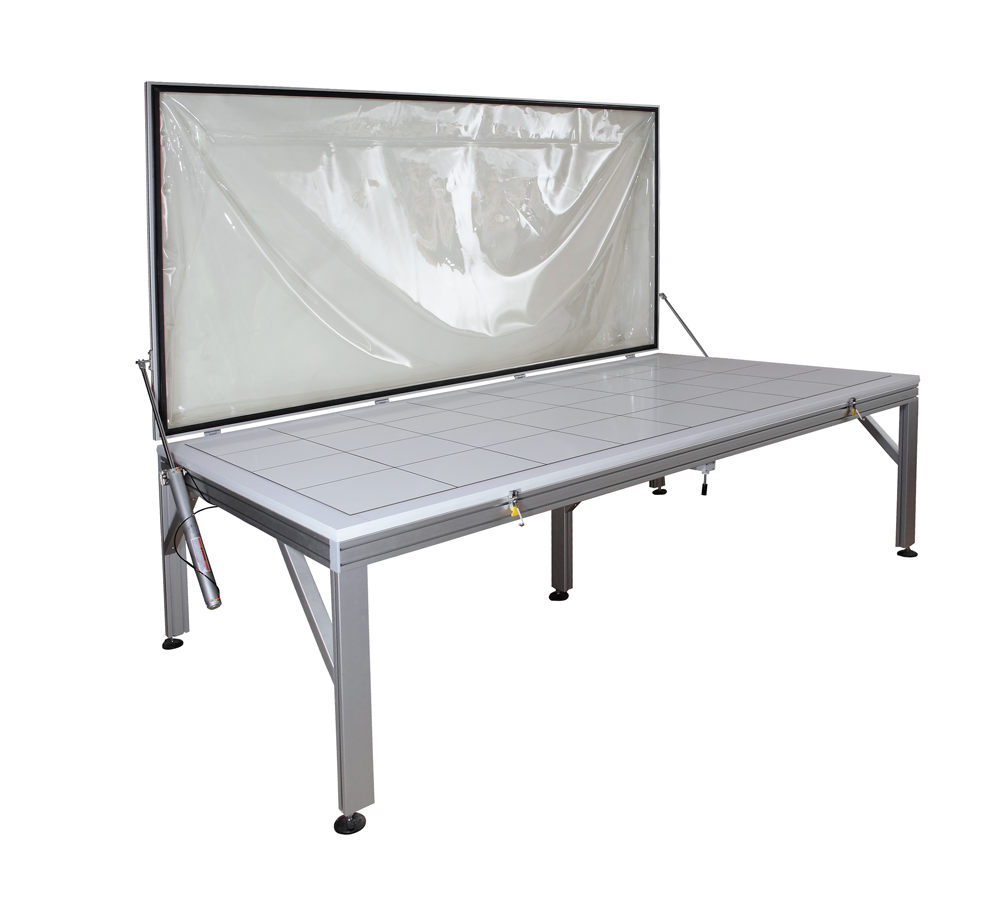

When repetition and accessibility are priorities the VacuPress® FlipTop table press is the answer. Designed for quick and easy access, this frame system is ideal for the wood shop which presses flat and low profile curved woodwork more frequently – and can afford dedicated space for the frame system. The VacuPress® FlipTop table press brings a new level of speed and convenience to the vacuum veneering and laminating process.
