Joinery Machines
The Class TF 130PS is the workhorse of the SCM shaper line. It has a very robust structure and all the controls can be accessed on the front of the machine for easy use. An integrated sliding table further increases the flexibility of this machine. A mechanical digital reader ensures the precision of the spindle adjustment. 3ph/ 220V 11HP fixed 1 1/4 MK5 interchangeable spindle 5-speed Aluminum fence w/ mechanical adjustment Sliding table Tenoning kit
$15,585.00
A must for the serious woodworker, the Class TF 130 is the SCM shaper that combines quality and value for your investment. It has a very robust structure and all the controls can be accessed on the front of the machine for easy use. A mechanical digital readout ensures the precision of the spindle adjustment. 3ph /220V 11 HP Fixed 1 1/4 " MK 5 interchangeable spindle 5-speed aluminum fence w/ mechanical adjustments
$12,985.00
The Class TI 120 is one of SCM Groups finest manual tilting spindle shapers. The tilting spindle allows craftsmen to use more creativity in designing high-end, custom products. The quality and flexibility of this machine are especially appealing to architectural millwork operations.
$15,985.00
Holz Heavy Duty 24″ Planer Max Width 630mm Max Thickness 300mm Feed Speed 8, 10, 12 m/min Spindle Speed 4800 rpm Blades 4 straight knife Motor 10hp, 220v 3 phase Weight 1380 lbs
$11,995.00
Holz Paoloni Fixed Spindle Shaper Main spindle speed r/min 1300/2500/3500/5000/6000/8500 Spindle diameter 1 1/4″ Max height 5.9″ Table size 1200×700 mm Main Motor 5.5hp Overall dimensions 1200×800×1240 mm Net weight 838 lbs
$8,900.00
Technical data Max. useful spindle length 140 / 5.5 mm / inches Spindle speed 3000/4500/6000/7000/10000 rpm Max. diameter of the profiling tool 250 / 9.8 mm / inches Max. tool diameter retractable under the table at 90° 320 / 12.6 mm / inches Max. diameter of the tenoning tool 300 / 11.8 mm / inches Three-phase motor power 10 Hp
$43,895.00
Technical data Max. useful spindle length 140 / 5.5 mm / inches Spindle speed 900 – 12000 rpm Max. diameter of the profiling tool 250 / 10 mm / inches Max. tool diameter retractable under the table at 90° 300 / 11.8 mm / inches Max. diameter of the tenoning tool 300 / 11.8 mm / inches Three-phase motor power 13 Hp
$59,785.00
Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops. A universal combination machine with all of the Minimax quality at a more affordable price, ideal for the D.I.Y. woodworkers and the small joinery workshops. The most compact 4-in-1 combination machine available, the Minimax C 26G is ideal for the hobbyist who works primarily with solid wood and is looking for a better alternative to tools like a jobsite saw, benchtop lunchbox jointer, benchtop planer, and router table. The Minimax C 26G comes standard with 2.5hp motors, 10″ sawblade capacity, 2-speed shaper, 10” Tersa jointer/planer cutterhead, and mobility kit. – 4′ Sliding table saw with 10″ main blade – 3x 2.5 Horsepower single-phase motors – 10” Jointer/Planer cutterhead with Tersa knives – Anodized aluminum sliding table with hardened steel ways – Eccentric workpiece clamp – Adjustable and removable riving knife – Outrigger/Squaring frame included (not pictured) – Tool set and operator’s manual
$7,285.00
Machine Specs: • Cutterhead Working Width: 300mm (13") • Jointer Bed Length: 1200mm (47") • Maximum Sawblade Diameter: 250mm (10") • Sawblade Arbor Size: 16mm (5/8") • Cutting Width on Parallel Fence (Rip Capacity): 540mm (21") • Spindle Molder Speed: 4000 RPM/6500 RPM
$8,285.00
The Minimax CU 410ES is a heavy duty, 3-phase, five function full combination machine designed to meet the needs of the most demanding environments. It features cast iron tables, tilting fence and breakthrough XYLENT technology. This technology gives an exacting finish while reducing ambient noise decibel output significantly. – 8 Horsepower motor, 3-phase 230v – Digital-mechanical readout on planer height and shaper spindle height – LED readouts & powered movements – Wheels for machine movement – XYLENT Technology Silent Cutterhead with 66 knives – XYLENT Maintenance kit with 10 additional knife inserts – Magnetic starter with overload protection – Automatic self-braking motors – Planer has four dust protected jackscrew posts for lifting of planer table – Elite cast-iron mortiser – On/Off pushbuttons for saw, planer and shaper motors on operator side – Dial indicators for shaper and saw tilt – Separate scoring motor with external scoring blade adjustments – Double trunnions on the saw and shaper supports – ¾” dado capacity – Pre-wired powerfeeder swing arm support – Rubber coated outfeed roller – Rear tilting Interchangeable shaper spindle: 1.25” standard – 3-axis, micro-adjustable shaper fence system, with memory pins and digital readout – 8.5ft aluminum sliding table with precision guideways – Cast-iron horizontal mortiser and American-style jointer guard – Short crosscut fence with mitre gauge, eccentric workpiece clamp and trimming shoe
$27,985.00
The Minimax CU 410E is the go-to machine for woodworkers wanting a wider jointer to process larger pieces. This full combination machine has a 16” jointer/planer incorporated into it. A large sliding table to process longer sheet goods is standard, and a tilting arbor shaper is also included. This machine is heavy-duty, but is still able to be broken down to save space in a small shop. STANDARD FEATURES – Three independent 4.8 horsepower motors, single-phase 230v – Double trunnions on both saw and shaper assemblies – Interchangeable spindle shaper: 1.25” standard – Three-axis, micro-adjustable shaper fence system – Interchangeable and spare spindle – Digital-mechanical (NON-LED) readout on planer height, shaper spindle tilt and height, saw tilt. – Automatic self-braking motor – 8.5ft aluminum sliding table with precision guideways – Cast-iron horizontal mortiser – Short crosscut fence with mitre gauge, eccentric workpiece clamp and trimming shoe – 4-knife “Tersa” jointer/planer cutterhead – American-style jointer guard – Mobility kit, wheels for machine movement **The Minimax CU 410E comes with a scoring blade and does not come with a main saw blade**
$19,985.00
Versatile and compact universal combined machine with the more advanced technological solutions for precision, reliability and safety. Entry-level machine for cabinet work. 3.4hp motors, 2-speed shaper, 3-knife Tersa cutterhead. 12″ sawblade with independently adjustable scoring and 5.5′ sliding table allows user to crosscut 4×8 panels square and efficiently. – Three independent 3.4 Horsepower motors, single-phase 230v – Independently adjusted scoring system – 5.5ft sliding table on precision ball bearings with outrigger and swing-arm – Micro-adjustable shaper fence – Miter fence and eccentric hold-down clamp – Three-knife “Tersa” quick-change cutterhead – Jointer tables open towards the machine, and away from operator – Mobility kit, wheels for machine movement
$9,985.00
Technical data profiset 40 Min./max. working width (finished section) 23/180 mm Min./max. working height (finished section) 6/105 mm Feed speed 6 – 12 m/min Spindles speed 6000 rpm
$38,985.00
Technical data profiset 60 Min./max. working width (finished section) 25 (15 opt.)/230 mm Min./max. working height (finished section) 6/120 mm Feed speed – m/min Feed speed (variable with inverter) 25-May m/min Spindles speed 6000 rpm Axial adjustment of spindles with respect to the worktable 40 mm
$76,795.00
Technical data T 124 Distance between centers, with copying device mm / inches 1150 / 42.25, 1120 / 44 Centers height (Swing) mm / inches 200 (400) / 7.8 (15.75) 4 chuck speeds rpm 570/1000/1850/2500 Single-phase motor Hp 2.5
$5,995.00
Fixed Spindle Shaper The Minimax TW 45C is a 4 horsepower spindle moulder, with sliding table and a fixed spindle. It is versatile and easy to use, ideal for woodworkers and craftsmen. Featuring a standard 1.25” spindle with dual exhaust ports, T-slot on front of the table, and miter gauge for angled cuts, flip-stops and eccentric clamp. STANDARD EQUIPMENT -Forward/ reverse-run switch -T-Slot on front of table -Micro-adjustable infeed and outfeed fences -1.25” spindle standard -Quick spindle lock for tool changes -Dual exhaust outlets -Tool set and manual included -Miter gauge -Two flip-stops -Eccentric clamp
$5,985.00
Technical data Nova tf 110 Max. useful spindle length 140 / 5.5 mm / inches Spindle speed (at 50 Hz) 3000/4500/6000/7000/10000 rpm Max. diameter of the profiling tool 250 / 9.8 mm / inches Max. tool diameter retractable under the table at 90° 320 / 12.6 mm / inches Max. diameter of the tenoning tool with spindle diam. 30-35 (40-50) 300 / 11.8 mm / inches Three-phase motor 8 Hp
$9,985.00
15″ Helical Head Planer The helical cutterhead provides smoother, quieter cutting and finer finish than conventional systems Powerful 3HP TEFC motor controlled with a magnetic switch for safety Three V-belts transfer maximum power to the cutterhead Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8″ maximum depth of cut and trouble free operation Large cast iron handwheel positions table quickly and easily Large, precision ground cast iron table and extensions provide maximum workpiece support Two speed gearbox features automatic chain tensioner One-piece welded steel stand has built-in lockable casters Steel top-mounted return rollers speed repetitive cuts Angled dust chute with 4″ port positions collection hose away from the work area while providing efficient chip and dust collection Table locks firmly in place, preventing movement during cutting
$3,799.99
The Powermatic 8″ Parallelogram Jointer has an extra long 82″ bed length for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of tough duty. The 1/8″ depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature. This jointer features a Powermatic controlled chip 3-knife cutterhead for a safe, smooth cut every time. Powerful 2HP or 3HP motors are totally enclosed in a heavily constructed steel stand providing plenty of power for the most demanding jobs. Features: • A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. • The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment, insuring the table remains perfectly parallel, even after years of tough duty. • The 1/8″ depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature. • Powermatic controlled chip 3-knife cutterhead gives a safe, smooth cut every time. • Powerful 2HP, 1PH motor is totally enclosed in a heavily constructed steel stand.
$4,499.99
• Dust Collection Minimum CFM Required : 800 • Dust Port Diameter (OD/in.) : 5 (dual ports) • Electrical Controls – Magnetic Starter : 24V Magnetic • Fence Size (L x H/in.) : 46 x 5 • Fence Travel (Major and Minor/in.) : 5-3/8 and 3-5/8 • Height (in): 53 • Length (in): 51 • Maximum Diameter Cutter Above Table (in) : 12 • Maximum Diameter Cutter Below Table (in) : 9 • Motor HP : 7-1/2HP • Motor Phase : 3PH • Motor Voltage : 230/460V • Net Weight (lb): 1,100 • Overall Dimensions : 51 x 44 x 53 • Part Number : 1791284 • Prewired : Prewired 230V • Reversible : Yes • Router Bit Collet Diameter (in) : 1/4 and 1/2 • Slide Table Size (in) : 11-1/4 x 51-1/4 • Spindle Diameter (in) : 3/4, 1, and 1-1/4 • Spindle Size Under Nut (in) : 3/4 Spindle – 3-1/2, 1 Spindle – 6-1/4, 1-1/4 Spindle –6-1/4 • Spindle Speed (RPM) : 3000, 4000, 6000, 8000, and 10,000 • Spindle Travel (in) : 7 • Table Inserts : one tilting, two straight • Table Size (in) : 51-1/2 x 33-1/2 • Table Travel (in) : 49-1/4 • Tilting Spindle (deg.) : 5° back, 45° forward • Width (in): 44 • Shipping weight 1,280 lb.
$12,499.99
• Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels • Digital readout and simple PC controller make quick and easy table height set ups • Segmented serrated infeed roll with segmented chip breakers has 1/4″ independent yield, for planing multiple height stock • Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers • 3″ diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life • Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0″ to 0.050″ at a touch • Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment • Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding • 3 speed feed selector allows you to quickly change feed rates • Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock • Dust hood features built-in 5″ dust chute for efficient dust collection • Helical head with four sided inserts • Dust hood with 5″ diameter dust port • Segmented infeed rollers • Segmented chip breakers • Tool kit with pneumatic screwdriver for removing the cutterhead insert blades • Bed Rollers Adjustable from Front : 0″ to 0.05″ • Column Diameter (in) : 2-1/2 • Cuts Per Minute : 30000 • Cutterhead Diameter (in) : 3-3/8 • Cutterhead Speed (RPM) : 5000 • Dust Collection Minimum CFM Required : 600 • Dust Port Diameter (OD/in) : 5 • Feed Rate (FPM) : 30-25-20 • Height (in): 59 • Length (in): 52 • Maximum Depth of Cut (in) : 1/4 • Maximum Full Width Depth of Cut (in) : 1/8 • Maximum Height of Rollers Parallel to Tabletop (in) : 0.05″ • Maximum Planing Thickness (in) : 9 • Maximum Planing Width (in) : 25 • Minimum Planing Length (in) : 10 • Model Number : WP2510 • Motor HP : 15HP • Motor Phase : 3Ph • Motor Voltage : 230/460V • Net Weight (lb): 1,725 • Number of Knives : 168 Four-sided inserts • Outfeed Roller Diameter (in) : 3 • Overall Dimensions : 52 x 36 x 59 • Part Number : 1791303 • Prewired : Prewired 230V • Readout Scale : in/mm • Rollers (in) : (1) infeed, (2) outfeed • Rotation (Forward/Reverse) : Fwd only • Segmented Infeed Roller Diameter (in) : 3 • Table Height Adjust Manual : 1 handwheel revolution = 1/32″ • Table Size (in) : 32-3/16 x 26 • Table Support : 2 column • Tool Supplied : tool kit • Width (in): 36
$18,499.99
The right spindle moulder for demanding craftsmen and carpentries, thanks to its customization and flexibility. The minimax tw 55es is the culmination of years of experience in manufacturing quality solid wood SCM products. This 4-speed heavy duty machine is standard with both a sliding table and tilt! The slider has hardened steel guide ways and precision bearings, so it incorporates the exact technology found in our top selling sliding table saws! The hood has memory pins so if removed, it will go right back into the same position, making this shaper accurate and repeatable.
$10,985.00 - $11,585.00
$11,585.00
$10,985.00
(4) Rollers and (8) speeds of 6-13-18-21-36-42-54-102 FPM 0.7/1 HP motor 4-3/4″ roller diameter 2-1/4″ roller width Complete with universal support column Weight: 163 lbs
$1,450.00 - $1,550.00
$1,550.00
$1,450.00
16″ Jointer/Planer • Cutterhead working width: 410 / 16 mm / inches • Max. stock removal: 5 mm • Jointer table length: 2200 / 79 mm / inches • Planer table dimensions: 410 x 775 / 16 x 30.5 mm / inches • Planer feed speeds: 6 / 12 m/min • Min. - max. planer working height: 3 - 230 / 0.12 – 9 mm / inches • Single-phase motor: 4.8 Hp • Fence Tilt: 0 – 45 degrees
$9,695.00 - $10,395.00
$10,395.00
$9,695.00
Technical Specifications Worktable Dimensions: 1200 x 730mm Working Length of Spindle (C.E.) Diam. 30-35 (40-50): 140mm (180) Spindle Base Projection from Table: 52mm Spindle base projection from table with interchangeable spindle: 92mm Max tool diam. retractable under worktable with rings (with "Fast" section table): (300 x 85mm) Spindle fence stroke w/ mechanical programming (positioning with respect to the spindle axis): 125mm (from -125 to +125) External diameter of exhaust outlet on spindle moulder hood: 120mm External diameter of exhaust outlet on base (for the forced electrospindle aircooling 7.5 kW): 120mm Air flow speed of exhaust system: 20 M/sec Exhaust system air consumption: 1700 M3/hr
$17,585.00
$23,895.00
(4) Rollers and (4) speeds of 13-26-36-72 FPM 0.7/1 HP motor 4-3/4″ roller diameter 2-1/4″ roller width Complete with universal support column Weight: 163 lbs
$1,250.00 - $1,350.00
$1,350.00
$1,250.00
(3) Rollers and (8) speeds of 6-13-18-21-36-42-54-102 FPM 1 HP motor 4-3/4″ roller diameter 2-1/4″ roller width Complete with universal support column Machine weight: 153 lbs Add $100 for 220V single phase option
$1,250.00 - $1,350.00
$1,350.00
$1,250.00
(3) Rollers and (4) speeds of 13-26-36-72 FPM 1 HP motor 4-3/4″ roller diameter 2-1/4″ roller width Complete with universal support column Weight: 153 lbs Add $100 for 220V single phase option
$1,100.00 - $1,200.00
$1,200.00
$1,100.00
• Motor: 2HP, 1PH, 230V, 9A • Cutterhead Speed (RPM): 7,000 • Cutting Capacity (W x D) (In.): 8 x 1/2 • Table Size (L x W) (In.): 73 x 8-1/2 • Table Height from Floor (In.): 32 • Infeed Table Length (In.): 35-1/4 • Outfeed Table Length (In.): 35-1/2 • Fence Size (L x H) (In.): 38 x 4-3/4 • Fence Tilt (Deg.): 45 Forward, 45 Backward • Fence Positive Stops (Deg.): 45, 90, -45 • Dust Collection Minimum CFM Required (CFM): 450 • Dust Port Outside Diameter (In.): 4 • Recommended Circuit Size (Amps.): 20V
$2,899.99 - $3,499.99
$3,499.99
$2,899.99
• 4″ port for dust collection • 1HP TEFC Motor • Two push blocks • Dust collection port • Cutterhead guard • Industrial push-button switch • Cutterhead Speed (RPM) : 6000 • Cutting Capacity (W x D/in) : 6 x 1/2 • Dust Collection Minimum CFM Required : 800 • Dust Port Diameter (OD/in) : 4 • Fence Positive Stops (deg.) : 45 left, 90, 45 right • Fence Size (L x H/in) : 38 x 4 • Fence Tilts (deg.) : 45 left, 45 right • Height (in) : 37.5 • Infeed Table Length (in) : 32-1/2 • Length (in) : 66 • Model Number : 54 • Motor Amps : 13/6.5 • Motor HP : 1HP • Motor Phase : 1PH • Motor Voltage : 115/230V • Net Weight : 328 pound • Outfeed Table Length (in) : 32-1/2 • Overall Dimensions : 66 x 24 x 37-1/2 • Part Number : 1791317K • Prewired : Prewired 115V • Table Height (in) : 31-1/2 • Table Size (L x W/in) : 66 x 7-1/4 • Width (in) : 24 • Shipping weight 328 lb.
$1,999.99 - $2,399.99
$2,399.99
$1,999.99
The Nova F 410 T is a heavy duty, long bed 16” jointer designed to meet the needs of the most demanding environments. It features cast iron tables, tilting fence, and a quick change Tersa or Spiral Cutterhead.
$10,975.00 - $11,575.00
$11,575.00
$10,975.00
The Nova F 520 T is a heavy duty, long bed 20” jointer designed to meet the needs of the most demanding environments. It features cast iron tables, a tilting fence and a quick change Tersa cutterhead.
$13,275.00
Technical data L’invincibile f 7 Cutterhead working width 520 / 20 mm / inches Cutterblock diameter / n° of standard knives 120/4 mm/n° Dimensions of standard knives 520 x 35 x 3 mm With XYLENT Spiral Helical Cutterhead: 120/84 mm/n° Cutterblock diameter / n° of standard knives 15 x 15 x 2.5 mm Dimensions of standard knives Jointer bed length 3008 / 118 mm / inches Three-phase motor 11 Hp Max. stock removal 8 mm
$20,575.00 - $22,427.00
$20,575.00
$22,427.00

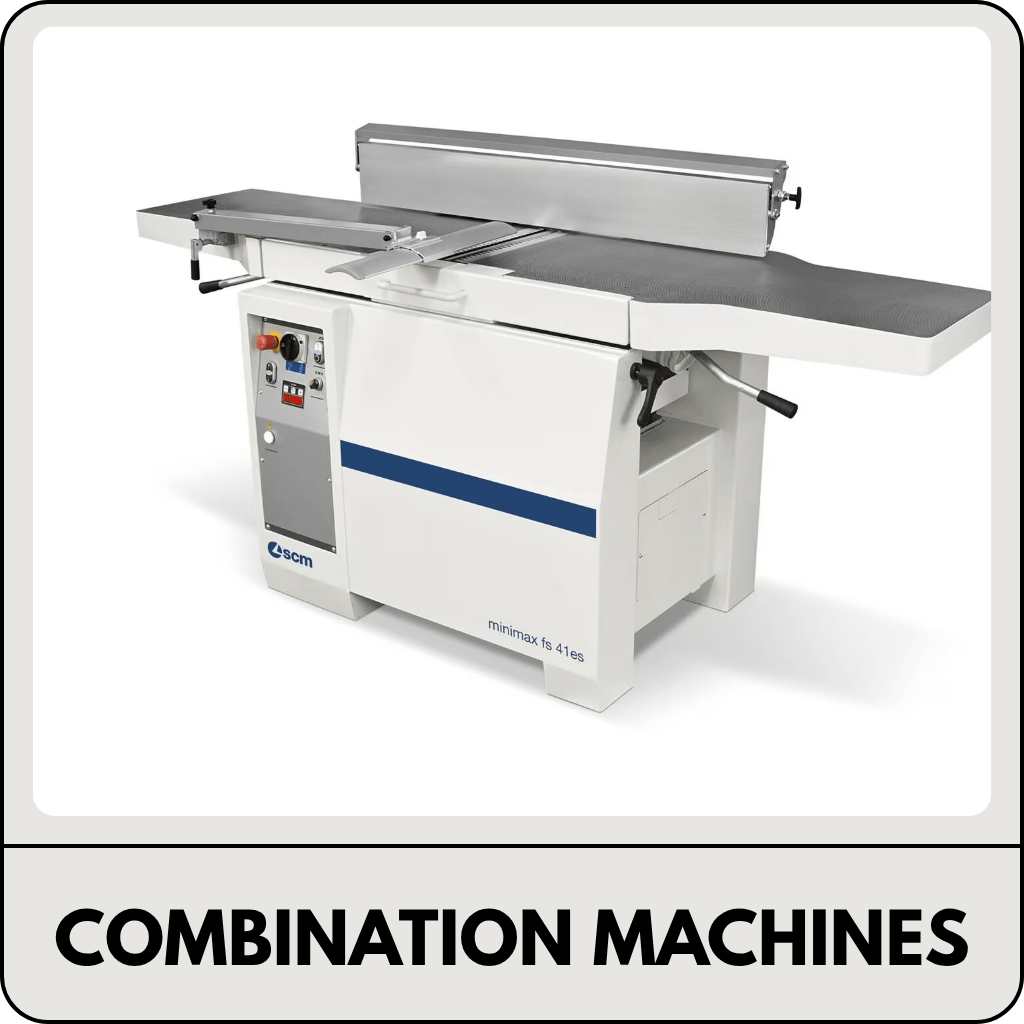

The Minimax FS 41ES is a professional grade, heavy-duty, long bed jointer/planer combination machine designed to meet the needs of the most demanding environments. It features cast iron tables, tilting fence, four-post planner pillar, and quick changeover. This technology gives an exacting finish while reducing ambient noise decibel output significantly. – 10 Horsepower motor – Additional overturning fence for processing of thin workpieces – Cast Iron mortiser with 120mm exhaust hood complete with 16mm chuck Strokes (X-160mm), (Y-120mm) and (Z-105mm) – Dedicated Surface Planer fence (1200mm x 150mm) – Digital-mechanical readout on planer height (1/10mm) – Parallelogram jointer tables – 4 dust-protected planer table columns with trapezoidal threading – Helicoidal thicknesser infeed roller – Sandblasted steel thicknesser outfeed roller – Pre-setting for mortiser – LED readouts & powered movements – American-style jointer guard – Wheels for machine movement – XYLENT Technology Helicoidal Cutterhead with 66 knives – XYLENT Maintenance kit with 10 additional knife inserts (15mm x 15mm x 2.5mm) ** The Minimax FS 41ES comes with an American-style spring-loaded jointer guard and does not come with the pictured European guard in the attached pictures *
$12,895.00 - $13,995.00
$13,995.00
$13,495.00
$12,895.00
The jointer/planer combination machine for the D.I.Y. woodworkers and craftsmen joineries. Fine Woodworking named our award-winning 12″ jointer/planer as “Best Overall” in its category. This machine offers premium power and precision in a compact size for any shop. With long jointer tables and sturdy fence, this machine is a quality product, made in Italy, for a value price. Find out why one of our best-selling units may be perfect for you. STANDARD FEATURES – 4.8 Horsepower single-phase motor – 12″ Jointer/planer cutterblock – 60″ Jointer table length – Precision-ground cast iron tables – American-style jointer guard – Quick-tilting jointer fence – Jointer tables open away from operator – Two independent dust collection ports – Tool set & owner’s manual Depending on the desired cutterhead, the Minimax FS 30C also comes with: – 3-knife “Tersa” quick-change cutterhead – Xylent helical cutterhead ** The Minimax FS 30C comes with an American-style spring-loaded jointer guard and does not come with the pictured European guard in the attached pictures **
$5,395.00 - $5,995.00
$5,395.00
$5,995.00
Our most popular combination machine for years, this machine sets the bar higher than any other manufacturer. This machine has proven itself in American shops countrywide. This machine is available with a 5.5′ or 8.5’ sliding table, and has features normally found on much more expensive machines, for a fraction of the cost. See for yourself why the Minimax CU 300C T combination machine is the perfect solution for people who want quality equipment with a small footprint. – Three independent 4.8Hp (single-phase, 230v) motors – ¾” Dado capacity – Independently adjustable scoring blade – External scoring adjustments – Available with a 5.5′ (1600mm) or 8.5’ (2660mm) sliding table – Interchangeable shaper spindle & Micro-adjustable shaper fence – Cast iron horizontal mortiser w/ self-centering Wescott Chuck – Miter fence and eccentric hold-down clamp – Three-knife “Tersa” quick-change cutterhead – Separate Jointer Fence – Outrigger and Swing Arm – Mobility kit – Automatic self-braking motor
$12,985.00 - $13,985.00
$12,985.00
$13,985.00
L’invincibile s 7 Cutterhead working width mm / inches 630 /24 With TERSA Straight-knife Cutterhead: Cutterblock diameter / n° of standard knives Dimensions of standard knives mm/n° mm 120/4 630 x 35 x 3 With XYLENT Spiral Helical Cutterhead: Cutterblock diameter / n° of standard knives Dimensions of standard knives mm/n° mm 120/84 15 x 15 x 2.5 Min. – max. planer working height mm / inches 3.5 – 300 / 1 / 3 – 11.75 Planer feed speed m/min 4 – 20 Three-phase motor Hp 15 Max. stock removal mm 8
$25,775.00 - $25,975.00
$25,775.00
$25,975.00
5hp Motor 20″ Width Specifications: Prewired: 230V Single or Three Phase Dust Collection Minimum CFM Required : 900 Dust Port Diameter (OD/in) : 5 Feed Rate (FPM) : 24 and 31 (16 and 20 with gear change) Height (in) : 41.375 Length (in) : 26 Maximum Depth of Cut (in) : 3/32 Maximum Planing Thickness (in) : 8 Maximum Planing Width (in) : 20 Minimum Planing Length (in) : 6-3/4 Net Weight : 800 lb Number of Speeds : 4 Overall Dimensions : 26 x 36-5/8 x 41-3/8 Readout Scale : in/mm Rotation (Forward/Reverse) : Fwd Table Size (in) : 20 x 55-1/2 Table Support : 4 column Width (in) : 36.625 Shipping weight 890 lb.
$4,449.99 - $5,999.99
$5,999.99
$5,999.99
$4,449.99
$4,449.99
Technical data Cutterhead working width mm 630 With TERSA Straight-knife Cutterhead: Cutterblock diameter / n° of standard knives Dimensions of standard knives mm/n° mm 120/4 630 x 30 x 3 With XYLENT Spiral Helical Cutterhead: Cutterblock diameter / n° of knives Dimension of standard knives mm/n° mm 120/105 15 x 15 x 2.5 Min. – max. planer working height mm 3.5 – 300 Planer feed speed m/min 4 – 20 Three-phase motor Hp 12
$23,953.00 - $25,043.00
$23,953.00
$25,043.00
Type of Cutterhead Straight Knife Knife Size (L x W x T) 22-1/8 x 7/8 x 1/8 Cutterhead Speed (RPM) 4,800 Cutterhead Diameter (In.) 3-1/4 Cuts Per Minute 19,200 Number of Knives 4 Maximum Depth of Cut (In.) 3/16 Maximum Planing Width (In.) 22 Maximum Planing Thickness (In.) 9-1/4 Minimum Planing Length (In.) 10 Feed Rate (FPM) 20/30 Segmented Infeed Roller Diameter (In.) 3 Outfeed Roller Diameter (In.) 3 Bed Rollers Adjustable from Front 2 Table Size (L x W) (In.) 32-1/4 x 24 Table Support 2 Column Dust Collection Minimum CFM Required (CFM) 900 Dust Port Outside Diameter (In.) 5 Motor Power (HP) 7-1/2 Motor Phase 1 Motor Voltage (V.) 230 only Recommended Circuit Size (Amps.) 50
$8,499.99 - $10,899.99
$10,899.99
$10,899.99
$8,499.99
The Nova S 520 T is a heavy duty, 20” planer designed to meet the needs of the most demanding environments. It features a monoblock base, work table with support rollers, and a Tersa cutterhead.
$15,233.00 - $15,887.00
$15,233.00
$15,887.00
specifications: Motor: 1 HP, 3 PH, 230V, 60 HZ Input Power Requirement: 1 PH, 120V Recommended Circuit: 15 Amp Speed Range: 15-3,600 RPM Spindle Thread: 1-1/4" x 8 TPI Spindle/Quill Taper: MT2 Index Positions: 24 positive locking Swing Over Bed: 14-1/4" Swing Over Tool Rest Base: 10-3/4" Distance Between Centers: 19-1/4" Bed Gap: 1-3/4" Tool Rest: 1" D post x 8" W Overall Dimensions (highest position): 52" x 24" x 48-1/2" Overall Dimensions (lowest position): 52" x 24" x 38" Stand Height: 34'' to 46'' (to centerline of chuck) Shipping Dimensions: 25.56" x 27.56" x 13.78" Shipping Weight: 277 lb.
$2,799.99
Specifications: Motor: 1 HP, 3 PH, 230V, 60 HZ Input Power Requirement: 1 PH, 120V Recommended Circuit: 15 Amp Speed Range: 15-3,600 RPM Spindle Thread: 1-1/4" x 8 TPI Spindle/Quill Taper: MT2 Index Positions: 24 positive locking Swing Over Bed: 14-1/4" Swing Over Tool Rest Base: 10-3/4" Distance Between Centers: 19-1/4" Bed Gap: 1-3/4" Tool Rest: 1" D post x 8" W Overall Dimensions: 52" x 24" x 18" Shipping Dimensions: 34.25" x 18.9" x 22.83" Shipping Weight: 206 lbs.
$2,399.99
Specifications: Able to maintain speeds as low as 15 RPM Motor: 2HP, 230V, 6.2A, 3PH Dimensions: 30.5" H x 55.25" L x 27.25" W Speed Range: 15-3200 Spindle Threads (In. x TPI): 1-1/4 x 8 Centerline of Spindle to Floor (In.): 40-5/8 without Risers Spindle Bore: 5/8" Headstock Movement: Full Length of Bed Spindle Taper: MT-2 Number of Indexing Positions: 48 Swing Over Tool Rest Base (In.): 15-3/4 Outboard Turning: Yes Distance between Centers (In.): 36 w/dual bearing center Spindle Speeds: Low 15-1200/High 40-3200 Ram Travel Quill Travel: 4-1/2" Bed Construction: Cast Iron Recommended Circuit Size (Amps.): 20 Size (In.): 20 Quill Taper: MT-2 Tailstock Bore: 3/8" Outboard External Threads (In. x TPI): 1-3/16-18 UNC Swing Over Bed (In.): 20 Bed Gap (In.): 2-1/2 Tool Rest Post Diameter: 1"
$5,299.00
Motor: 2HP, 3Ph with Inverter, 230V, 6.2A • Swing Over Bed (In.): 20 • Swing Over Tool Rest Base (In.): 17 • Distance Between Centers (In.): 20 • Headstock Movement: Full Length of Bed • Spindle Bore: 5/8 • Tailstock Bore: 3/8 • Spindle Taper: MT-2 • Quill Taper: MT-2 • Ram Travel Quill Travel: 4-1/2 • Spindle Threads (In. x TPI): 1-1/4 x 8 • Outboard External Threads (In. x TPI): 1-3/16-18 UNC • Spindle Speeds: High 125-3200/Low 50-1200 • Speed Range: 50-3200 • Number of Indexing Positions: 48 • Centerline of Spindle to Floor (In.): 44 (adjustable) • Outboard Turning: 88 • Bed Construction: Cast Iron
$5,099.99
Specifications: Lamp kit included Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features Vacuum system provides quick method of chucking bowl blanks 15-amp quad receptacle for easy reach of powered accessories Two 100W task lamps provide ideal lighting Air nozzle with quick connect for clearing dust/chips Set of dead centers which hold a spindle for visual comparison Laser etched quill is self ejecting 31.5”H x 27”W x 68”L Shipping Weight 960 lbs Swing Over Bed: 24" Swing Over Tool Rest Base: 21" Distance Between Centers: 42" Outboard Turning: 88" Speeds: 40-3500 RPM Headstock Taper: MT-2 Spindle Nose: 1 1/4 " x 8 TPI Hole Through Spindle: 5/8" Tailstock Taper: MT-2 Hole Through Tailstock: 3/8" Ram Travel: 4-1/2" Centerline of Spindle to Floor: 44" Spindle Taper: MT-2 Headstock Movement: full length of bed Indexing Positions: 98 Bed Construction: cast iron Spindle Speeds: 40 - 3500 Motor: 3HP, 220V, Prewired 220V, 3Ph
$7,499.99
Specifications Cutterhead Speed: 5000 RPM Cutting Capacity: 11-3/4" W x 3/4" D Dust Collection Minimum: 800 CFM Dust Port: 4" Motor: 1PH, 3HP, 230V Knives: 42 Dedicated 30 Amp Breaker recommended Helical Cutterhead
$8,799.99
SPECIFICATIONS: Number of Knives 3 Standard Knife Size (L x W x T) (In.) 8 x 11/16 x 1/8 Cuts Per Minute 21;000 Cutterhead Diameter (In.) 3-1/16 Cutterhead Speed (RPM) 7;000 Cutting Capacity (W x D) (In.) 8 x 1/2 Table Size (L x W) (In.) 82 x 8 Table Height from Floor (In.) 31-5/16 Infeed Table Length (In.) 44 Outfeed Table Length (In.) 38 Rabbeting Capacity (In.) 1/2 Fence Size (L x H) (In.) 38-3/16 x 4-3/4 Fence Tilt (Deg.) 45 Forward; 45 Backward Fence Positive Stops (Deg.) 45; 90; -45 Dust Collection Minimum CFM Required (CFM) 600 Dust Port Outside Diameter (In.) 4 Motor Power (HP) 2 Motor Phase 1 Motor Voltage (V.) 230 Only Motor Current (Amps) 9 Recommended Circuit Size (Amps.) 20
$3,899.99
Specifications: Motor: 2HP, 1PH, 230V, 9Amp Number of Knives: 3 Standard Knife Size (L x W x T) (In.): 8 x 11/16 x 1/8 Cuts Per Minute: 21,000 Cutterhead Diameter (In.): 3 Cutterhead Speed (RPM): 7,000 Cutting Capacity (W x D) (In.): 8 x 1/2 Table Size (L x W) (In.): 73 x 8-1/2 Table Height from Floor (In.): 32 Infeed Table Length (In.): 35-1/4 Outfeed Table Length (In.): 35-1/2 Rabbeting Capacity (In.): 1/2 Fence Size (L x H) (In.): 38 x 4-3/4 Fence Tilt (Deg.): 45 Forward, 45 Backward Fence Positive Stops (Deg.): 45, 90, -45 Dust Collection Minimum CFM Required (CFM): 600 Dust Port Outside Diameter (In.): 4 Recommended Circuit Size (Amps.): 2
$2,899.99
