Tooling

High quality heat treated steel Expansion slots help reduce vibration, noise and heat buildup Precision balanced ATB, 5/8” arbor, 3mm kerf, Rake angle 15°, Top angle 10°, Plate thickness 2mm, Tooth Thickness 0.079”

True-To Size Cuts: 24-Tooth main blades and flat-grind chippers provide cleaner cuts Extended Cutting Range: A variety of chipper widths provides maximum flexibility Cleaner Cuts: -5° hook means less tear out for cleaner cuts 8″, 5/8” arbor, 24-tooth main blades, 5 chippers, 6 shims, 1/4″ to 29/32″ cutting range, -5° hook angle, 6000 maximum RPM

• Amana Tool EZ Dial Scoring Set • Shim Free & Adjustable • Carbide Tipped • Fully Adjustable in increment of .1mm • Kerf Adjusts from 2.8mm-3.6mm • Fits on all SCM Sliding Table Saws

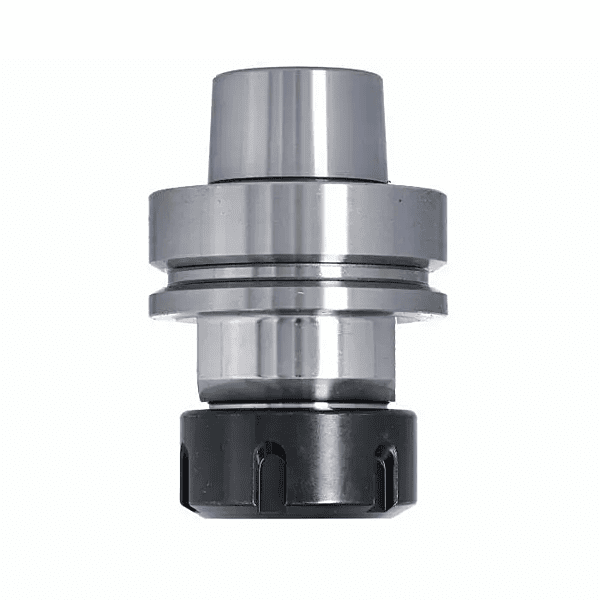

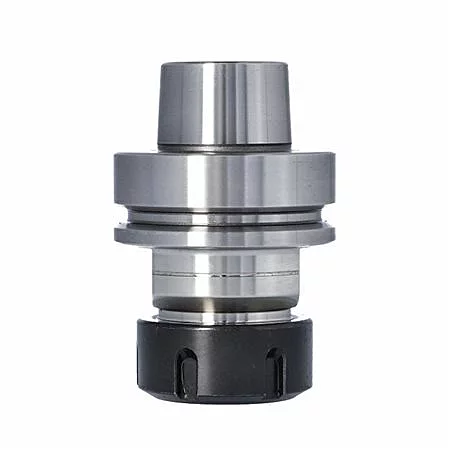

HSK-F 63 Tool Holders manufactured of high quality steel that is polished for corrosion resistance. The tool holder (collet chuck) comes with a ball-bearing collet nut that provides more even clamping force as well as the ability to be used for either clockwise or counterclockwise rotating tools. Made in Germany and balanced to G2.5 – Ball Bearing Collet Nut Included. In stock in 3 popular styles, for ER32, ER40 and RDO35 / SYOZ 25 style collets. Common Standards for a wide range of CNC Machining Centers such as Busellato, Homag, IMA, SCM, Felder (Format4), Weeke, Haas and others.

Make tool setup a snap! Tool setup fixtures clamp HSK of ISO tool holders for accurate tool set-up and makes awkward tool handling a thing of the past. When firmly secured to a work bench, the set up fixture accepts the tool holder and offers a safe and effective way to check and tighten the tool into the tool holder using a torque wrench. This insures secure tool assembly without over-tightening the collet nut. A ball bearing in the setup fixture locks the toolholder in position so the collet nut can be tightened without movement. Proper setup eliminates test cuts as well as wasted time and material.

Balanced to 25,000 RPM at G2.5 0.0001″ runout from taper to pocket PowerCOAT nut included for 75% more clamping power HSK 63F x ER40 – 75mm D: 63mm A: 75mm F: 26mm N: 63mm Nut: 46140 Wrench: 04617 Flats: 46

Titanium Series 40-Tooth Combination Blade

80T Titanium Series Premium Saw Blade – 80 Tooth, High ATB, Plywood Blade

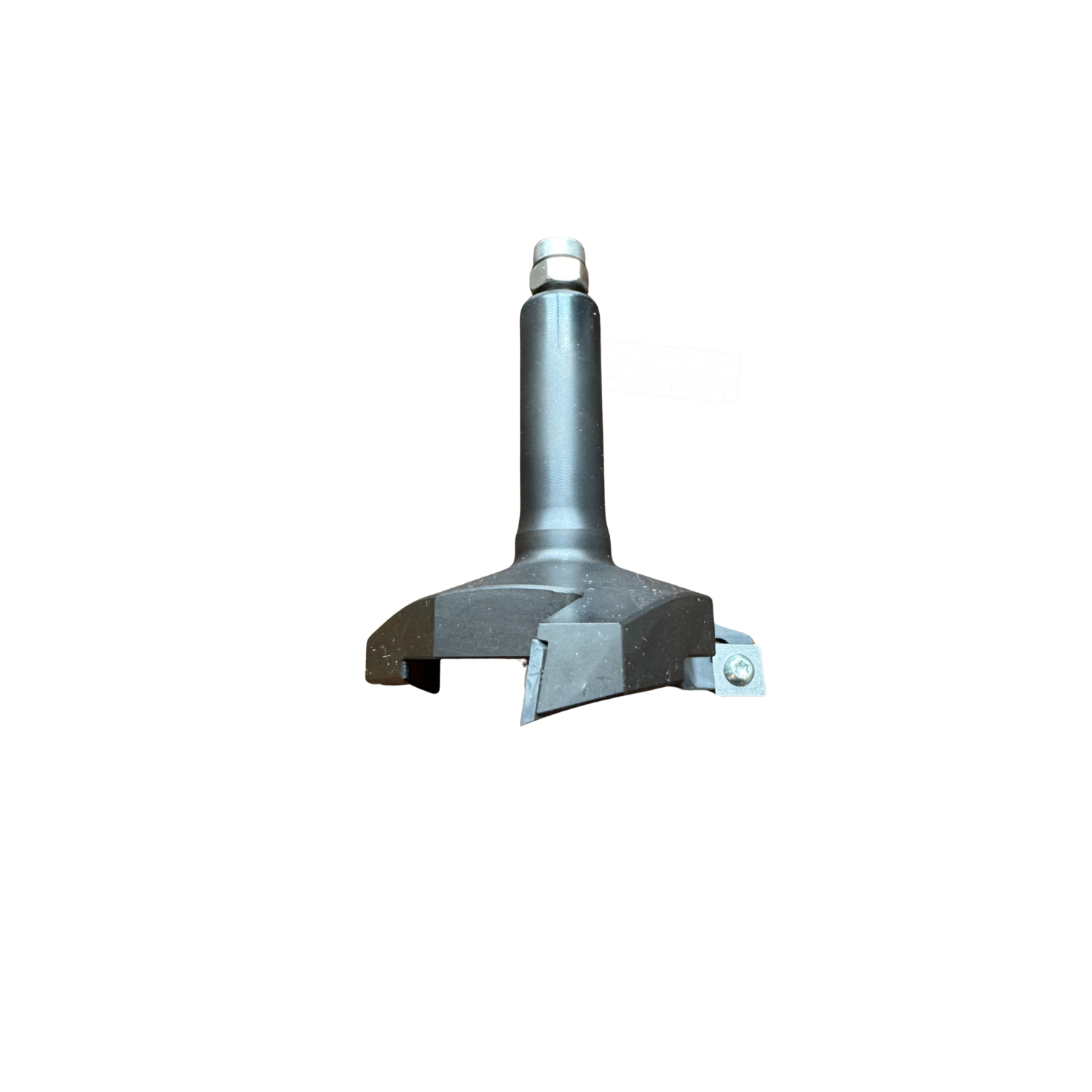

SPOILBOARD / FLY CUTTERS 6246.800.34 80mm*12mm*3/4"

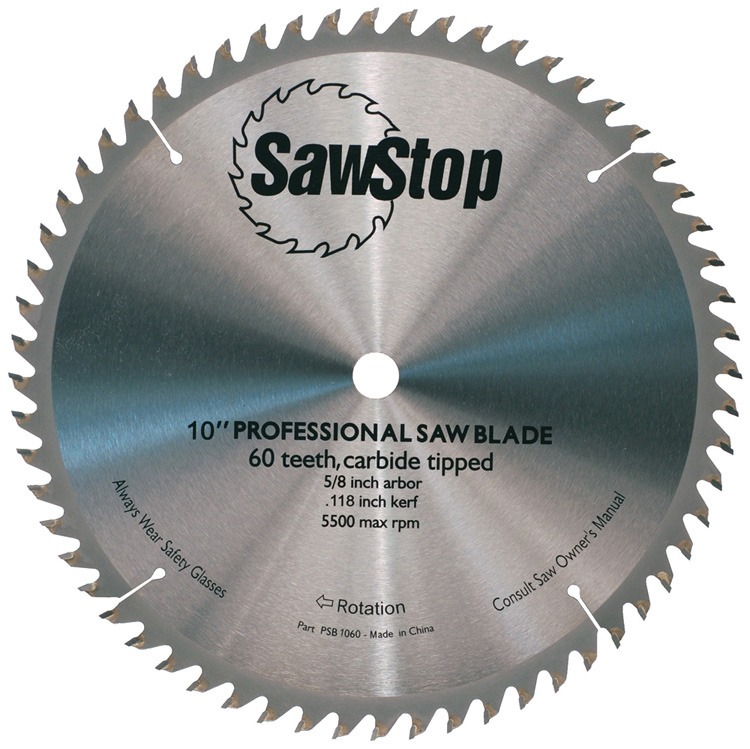

60 Tooth Combination Table Saw Blade

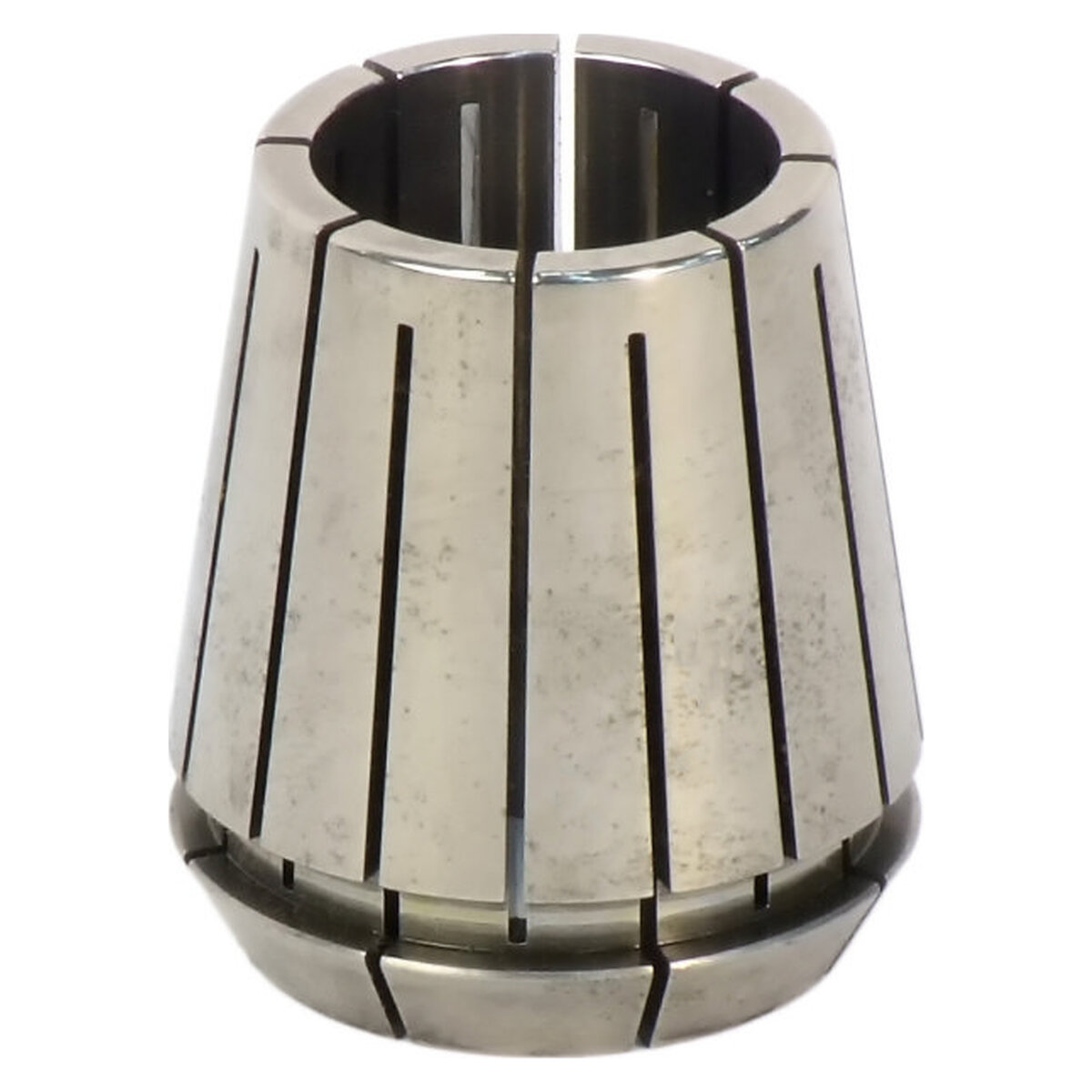

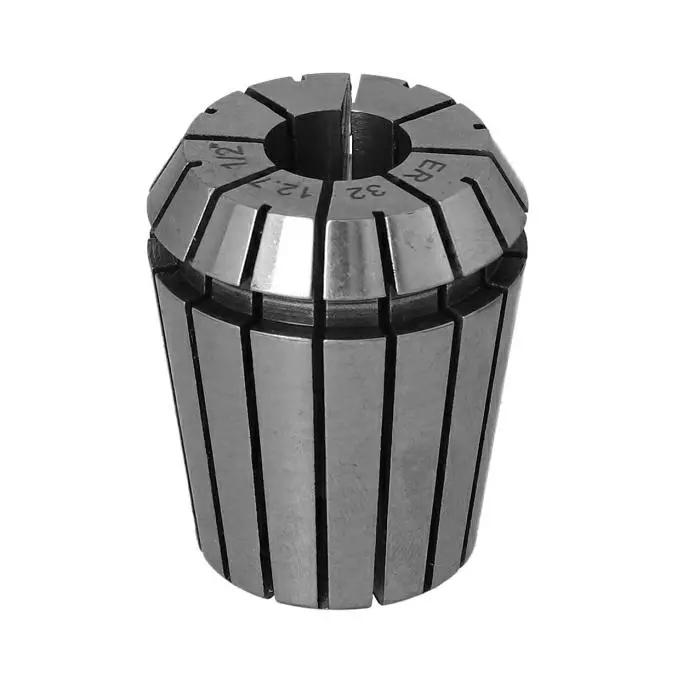

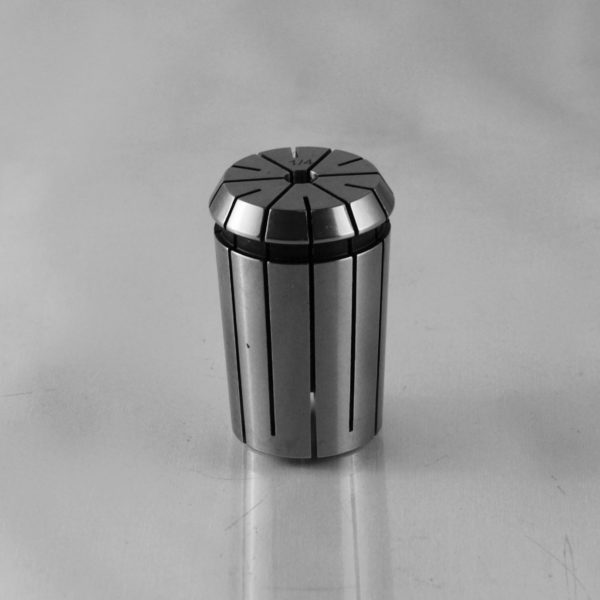

ER 32 Collet for HSK F63 & ISO 30 Tool Holders ER32 precision spring collets are available in a wide range of popular sizes up to 20mm diameter and have an overall length of 40mm. Collets are consumable items, in that they wear out with use. In the wood machining industry, this style collet is used primarily on SCM and Busellato machines and fits on the HSK-F63 and ISO 30 (generally older machines) Tool Holder style. Replacement is a routine maintenance task that should be completed approximately every 500 machine hours. Failure to do so will result in less than optimum tool life and can reflect in the finish of the material being machined.

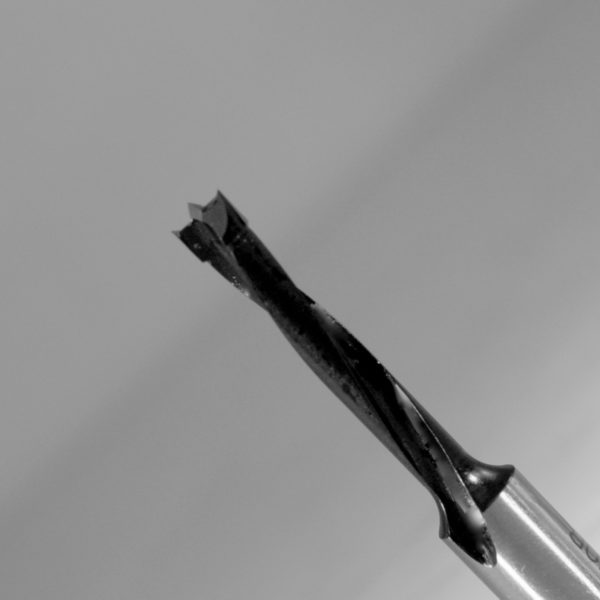

5mm Diameter 70mm Length

BOX OF 10 PCS

RDO35 / SYOZ25 precision spring collets are available in a wide range of sizes up to 25,4mm (1″) diameter and have an overall length of 52mm. In the wood industry, this style collet is commonly found on most CNC machines.

Set of 2 Knives 520mm Tersa™ HSS (High Speed Steel) Planer Knives

410 mm Tersa™ HSS (High Speed Steel) Planer Knives

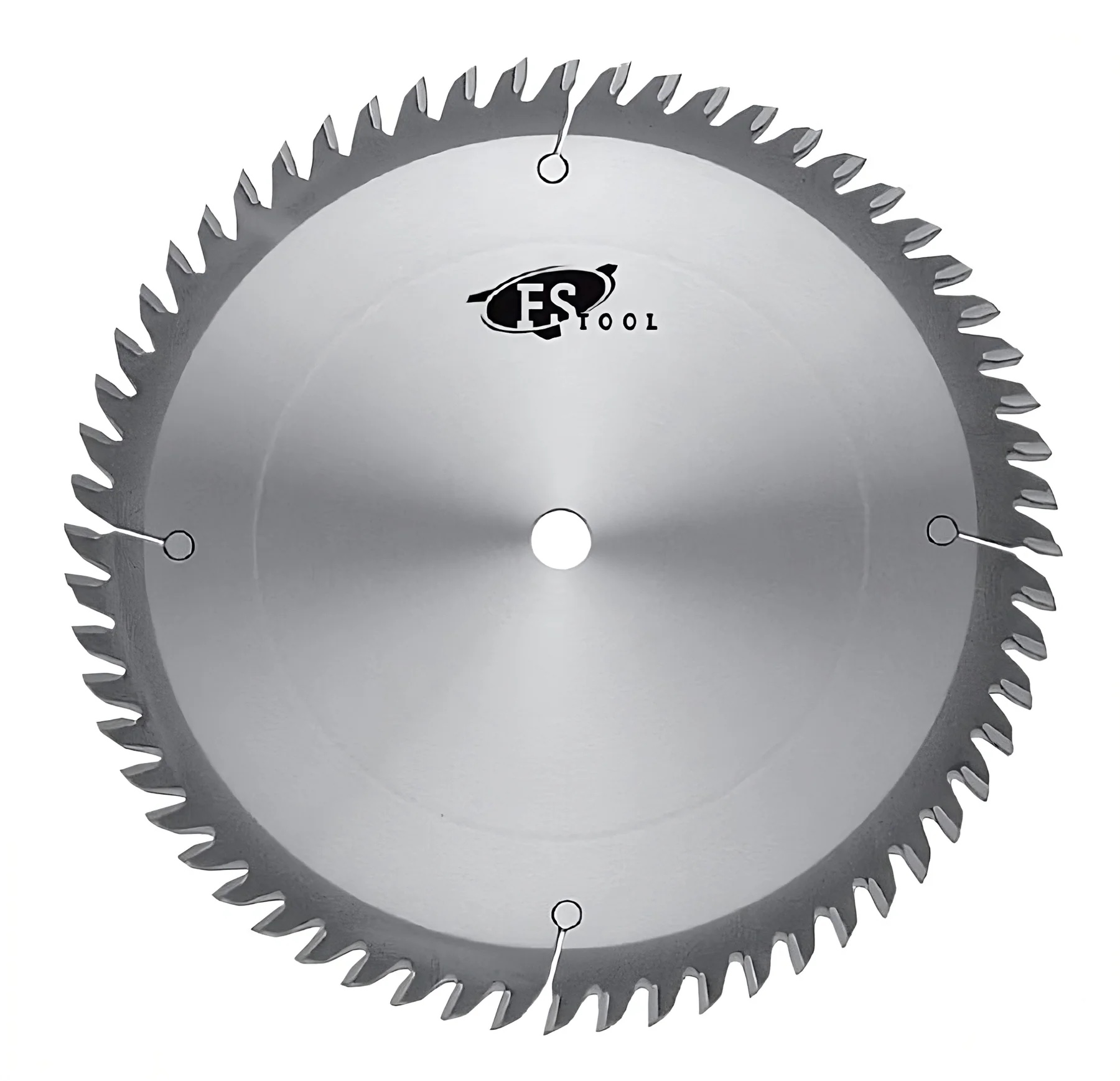

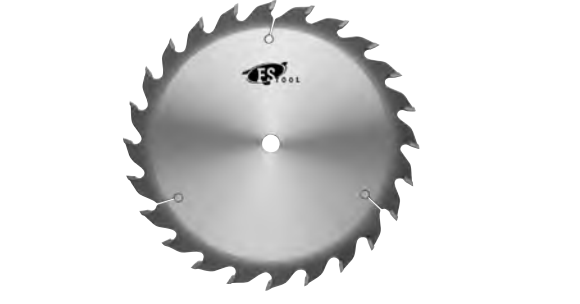

FS Tool 14" Rip Saw Blade

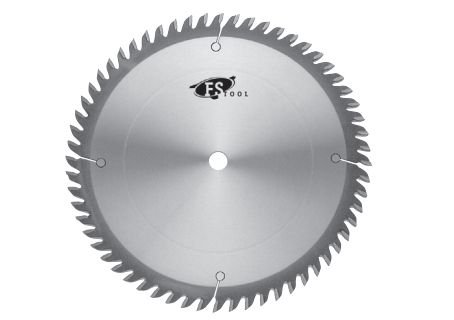

FS Tool 12" Rip Saw Blade D 12" B 1" Z 30 teeth configuration flat top L21300

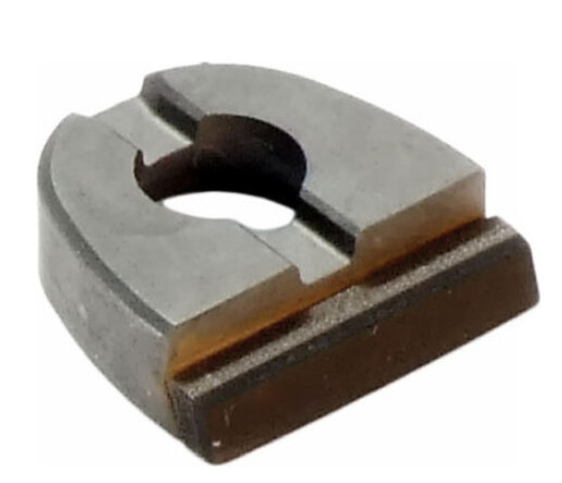

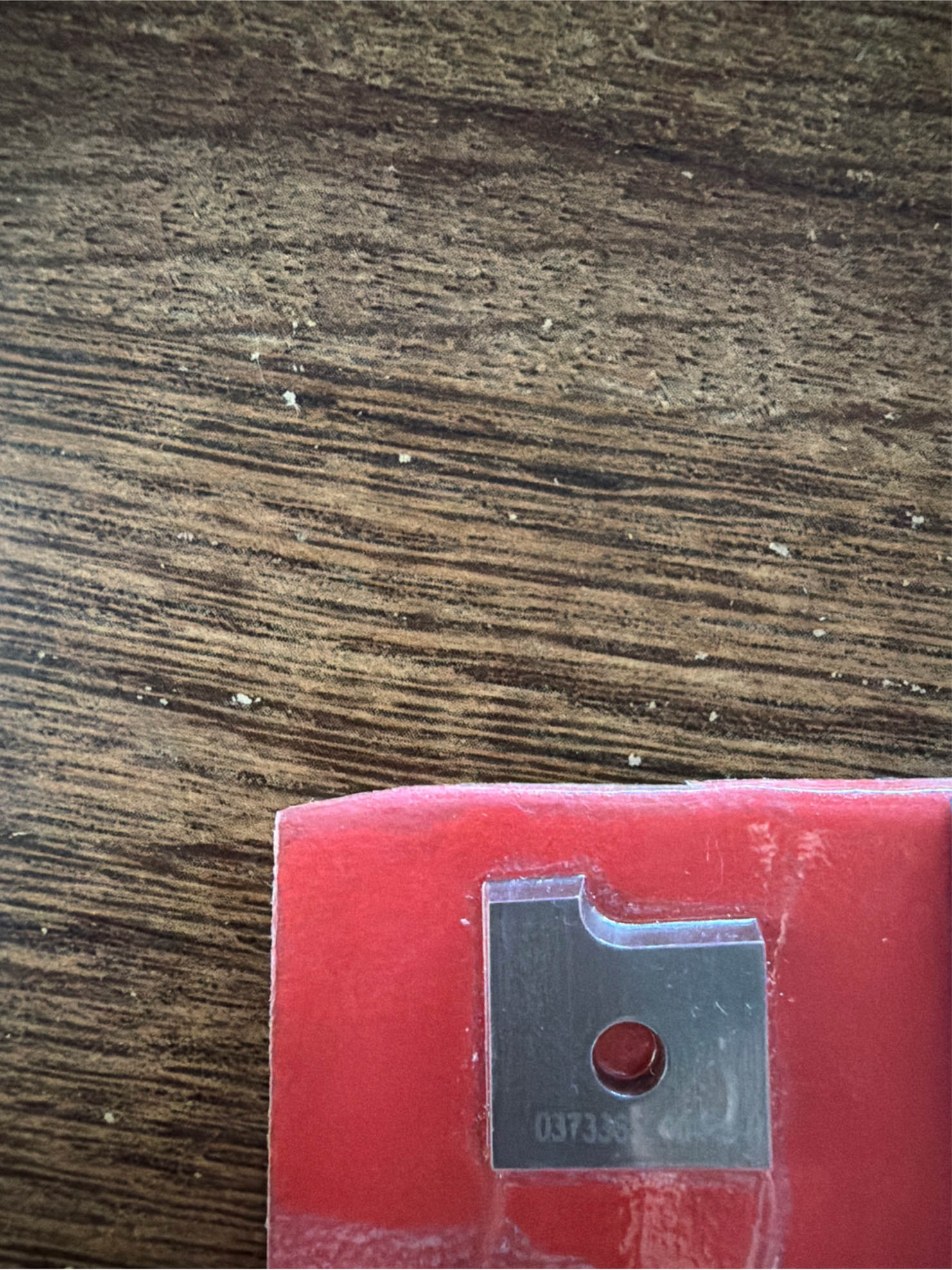

GDP Pre-mill PCD Insert Knife L14.2 H 14.2 AP4.3 DP 3.2 - SCM Olimpic K230, K360 #91066

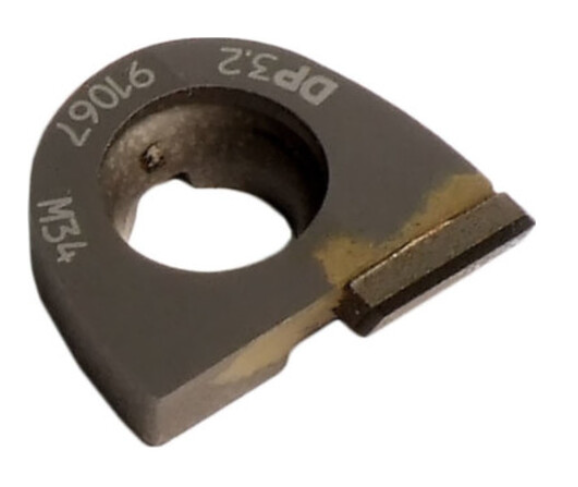

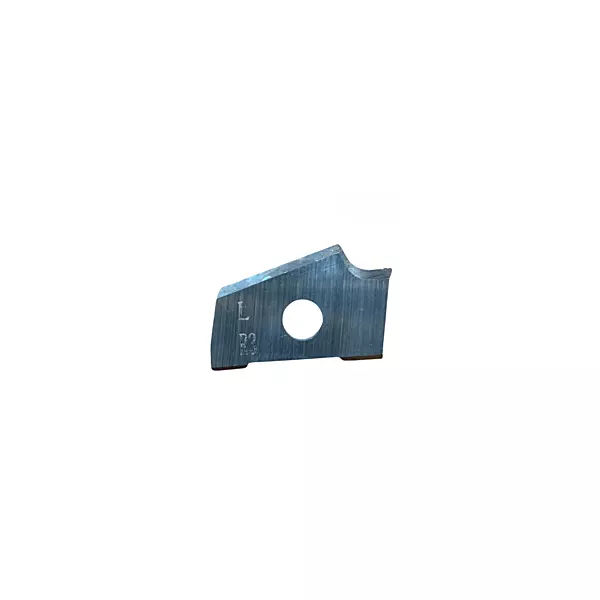

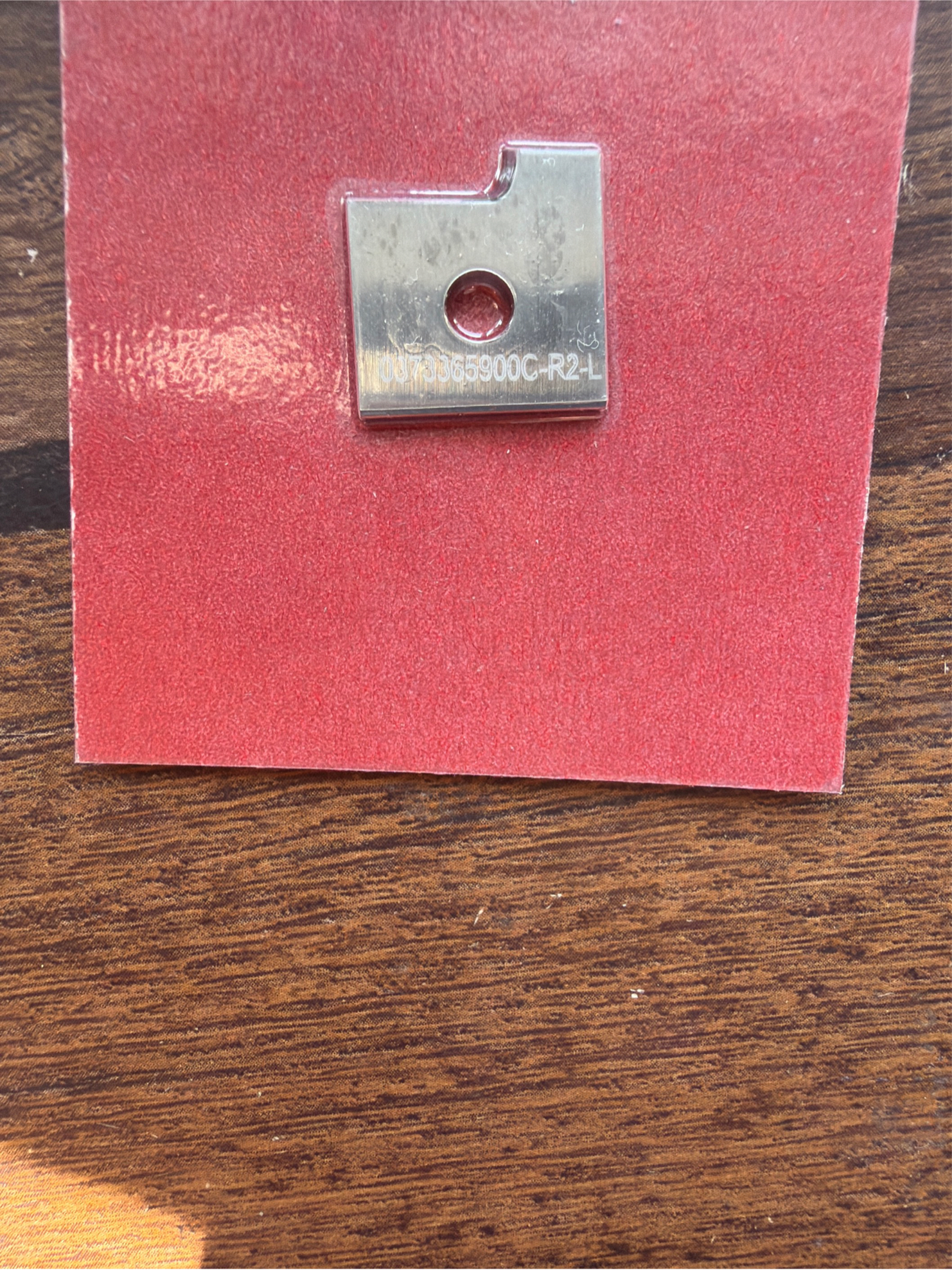

GDP Pre-mill PCD Half Insert Knife Left L6.7 H 14.2 AP4.3 DP 3.2 - #91067 SCM Olimpic K230, K360 #91067

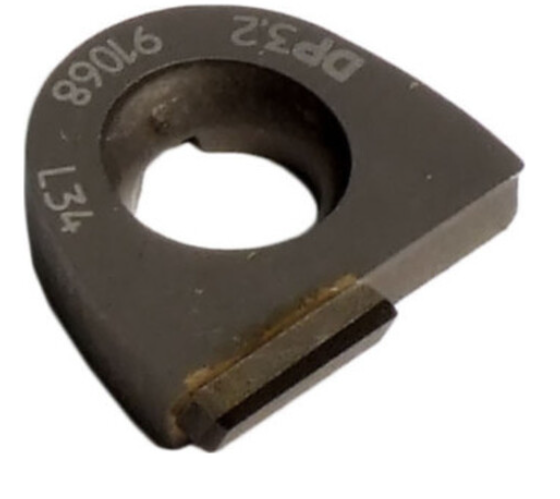

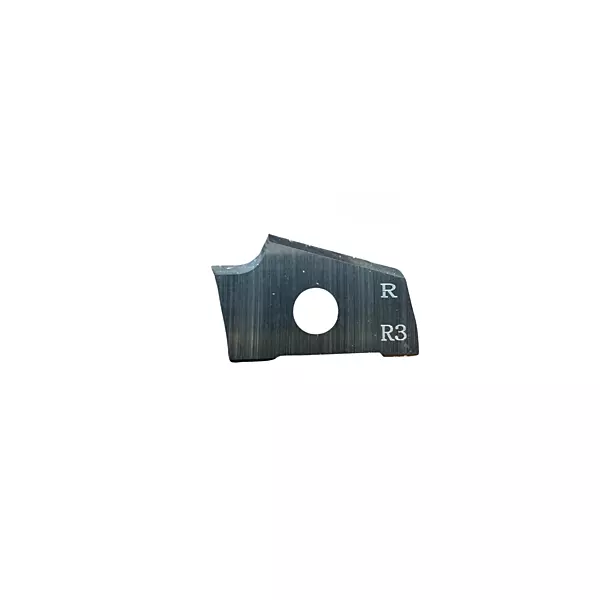

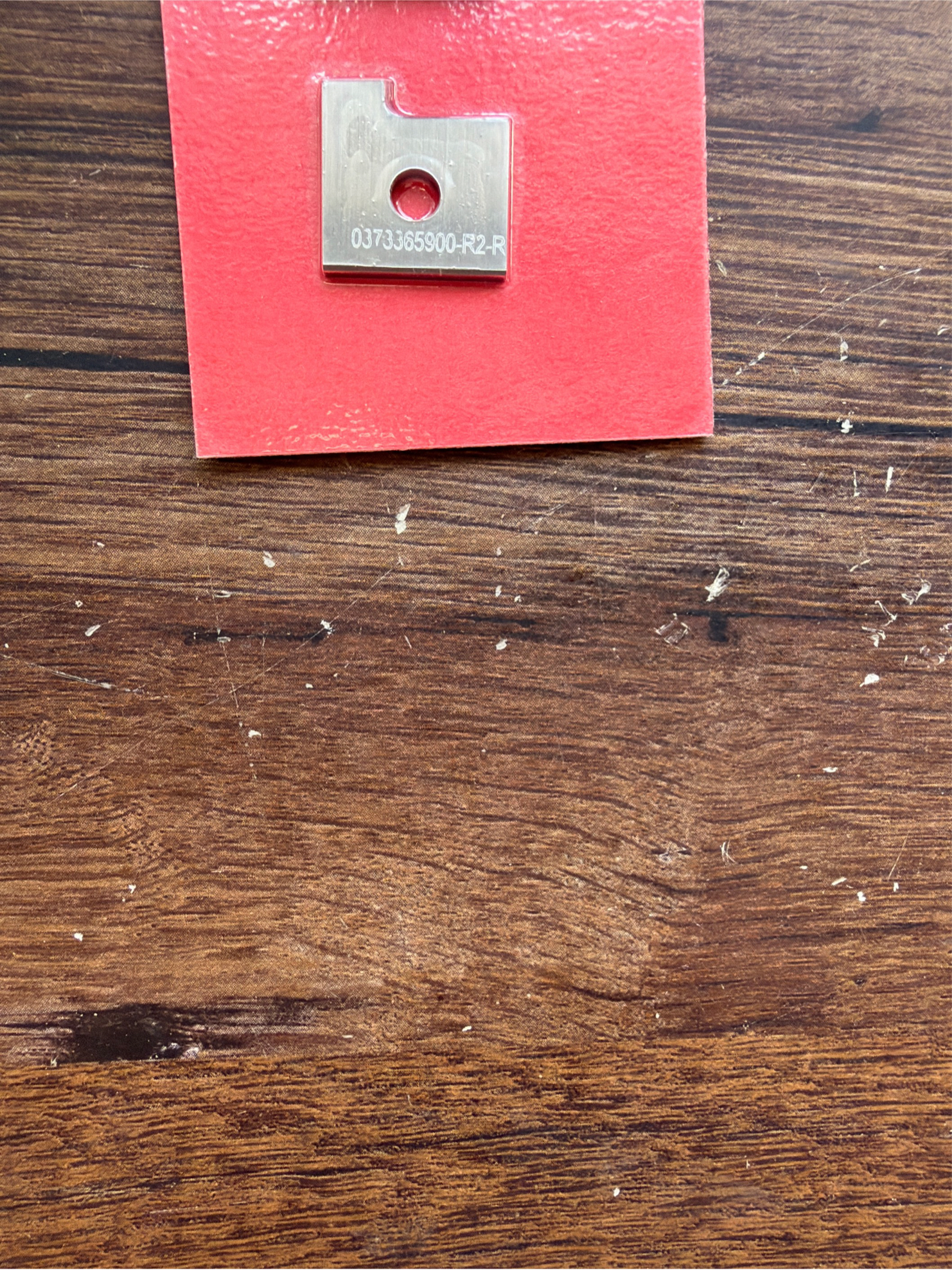

GDP Pre-mill PCD Half Insert Knife Right Handed L6.7 H 14.2 AP4.3 DP 3.2 - SCM K230, K360 #91068

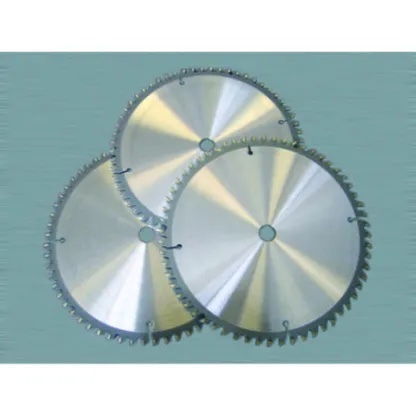

3 Pack of Saw Blades (Wood, Plastics, Aluminum). The blades included are our : 860TCG,860NRTCG,860ATB blades.
