Sanders

About this machine: 37″ Wide machine Combination head with 4.75″ diameter, 85 shore rubber contact drum and 2″ wide platen 18 HP main motor for sanding unit 0.7 HP, 2-speed feed motor (15 and 30 FPM) 6.25″ Maximum workpiece thickness Uses 37″ x 60″ abrasive belts Accurate and reliable electronic tracking of abrasive belt Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt Powered table positioning with electronic digital readout Automatic thickness setting device Rubber coated pressure rolls before and after sanding unit Infeed and outfeed tables with (2) rollers each 50 Shore negative profile (waffle pattern) rubber feed mat Automatic emergency stop of machine for: Sanding belt breaking, tensioning, overtracking; Absence of compressed air; overload on main motor (2) Platens provided – (1) Rigid, (1) Soft Air requirements: 6 Bar (88 PSI) Dust requirements: 900 CFM Electrical requirements: 54 Amps @ 230 V, 3 Phase

About The Machine: • 37″ Wide machine • Combination head with 4.75″ diameter, 85 shore rubber contact drum and 2″ wide platen • 18 HP main motor for sanding unit • 0.7 HP, 2-speed feed motor (15 and 30 FPM) • 6.25″ Maximum workpiece thickness • Uses 37″ x 60″ abrasive belts • Accurate and reliable electronic tracking of abrasive belt • Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt • Powered table positioning with electronic digital readout • Automatic thickness setting device • Rubber coated pressure rolls before and after sanding unit • Infeed and outfeed tables with (2) rollers each • 50 Shore negative profile (waffle pattern) rubber feed mat • Automatic emergency stop of machine for: Sanding belt breaking, tensioning, overtracking; Absence of compressed air; overload on main motor • (2) Platens provided – (1) Rigid, (1) Soft • Air requirements: 6 Bar (88 PSI) • Dust requirements: 900 CFM • Electrical requirements: 54 Amps @ 230 V, 3 Phase

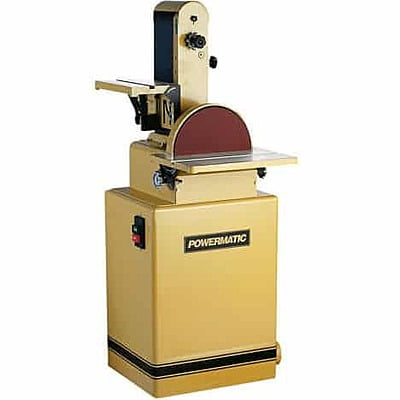

• Manufacturer Part Number 1791291K • Disc Size 12″ • HP 1-1/2 HP • Volts 230 • Dust Collection 4″ Port • Sander Style Stationary • Speed 2375 RPM (Disc) | 2410 SFPM (Belt) • Table Tilt 0, 45 and 90 • Belt Size 6″ x 48″

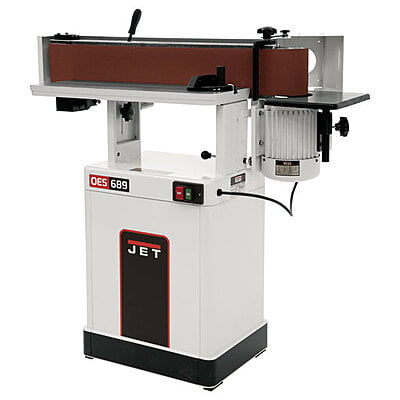

The large 11-3/4″ x 48″ table on the OES9138 oscillating edge sander travels a full 8″ in vertical height to accommodate most woodworking pieces. It will also tilt negative 5° and out to positive 45°. The cast iron platen is a generous 48″ x 9-1/2″ and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt. 3HP motor with 9″ x 138-3/4″ abrasive belt handles large workpiecesOscillates 24 cycles per minute for better finish and longer belt life9-1/2″ x 48″ platen with graphite pad offers largest work surface in its classRugged bearing-assisted tensioning device for fast belt changes and quick adjust trackingPedestal control switch for easy accessLarge 11-3/4″ x 48″ front worktable with 8″ vertical travel tilts and 45° tilt, includes miter head for angle workPrecision balanced 9″ diameter drive drum and 4″ diameter rubber coated idler pulley for positive drive and rigid trackingLarge radius end table has 6″ vertical travel and 45° tilt for any angle and working height neededHeavy-duty oscillating gearbox and shaft for long maintenance-free useHinged guard opens for infinite length sandingDual dust collection ports keep work area clean and extend abrasive belt lifeStandard Equipment:Two 4″ dust portsTilting main and end tablesPlaten with graphite pad • Style (Type) Horizontal/Vertical Oscillating Edge • Sanding Belt Size (L x W) (In.) 9 x 138-3/4 • Belt Speed (FPM) 3542 • Drum Diameter (In.) 4 Outboard, 9 Drive • Platen Size (In.) 9-1/2 x 48 • Oscillations Per Minute 24 • Main Table Size (L x W) (In.) 48 x 11-3/4 • Main Table Tilt (Deg.) 5 In, 45 Out • Table Height from Floor (In.) 34-1/2 – 40-3/4 • End Table Size (In.) 18 • End Table Tilt (Deg.) 40 In, 45 Out • Electrical Controls Magnetic Starter • Dust Collection Minimum CFM Required (CFM) 1,100 • Dust Port Outside Diameter (In.) 4 • Motor Power (HP) 3 • Motor Phase 1 • Motor Voltage (V.) 230 only • Recommended Circuit Size (Amps.) 30

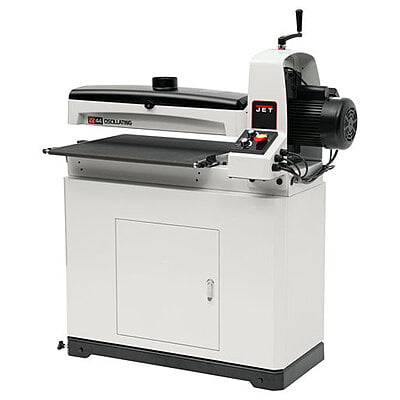

• Drum Length: 22″ • Number of Sanding Drums: 1 • Drum Speed (RPM): 1,720 • Drum Diameter: 5″ • Conveyor Speed (FPM): 0 – 10 • Maximum Board Thickness: 4″ • Maximum Board Width: 44″ • Minimum Board Length: 2-3/8″ • Minimum Board Thickness: 1/32″ • Dust Port Outside Diameter: 4″ • Motor Power (HP): 1-3/4 • Conveyor Motor (HP): 1/30 • Motor Phase: 1 • Motor Voltage (V): 115 • Prewired Voltage (V): 115 • Motor Current (Amps): 14 • Recommended Circuit Size (Amps): 20

• Rubber coated pressing rollers before and after working unit • 1 HP two speed feed unit. Feed speeds set at 15 or 30 feet per minute • Y-Delta two-stage reduced voltage starter on main motor • 2 roller Infeed and outfeed table extensions • Automatic Electronic Table Positioning Device • Adjustable sanding drum and pad position for micro precision adjustment • Electronic digital thickness readout of work table position • Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability • Electronic tracking of abrasive belt • Automatic feed mat tracking • Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt • Front and rear emergency stop buttons • Automatic emergency stop of machine for: - sanding belt breaking, tensioning, over tracking - opening of the access door to the operating groups - absence of compressed air - overload on main motors • Amperage meter for main motors allows maximum utilization of available horsepower • Main disconnect switch with the ability to be locked out by padlock • In feed flexible steel hold down, and anti-kickback plate • 50 shore, negative profile (waffle style) rubber feed mat • LOGIC 50 K Electronic Programmer for timing/anti-dubbing • of the pad

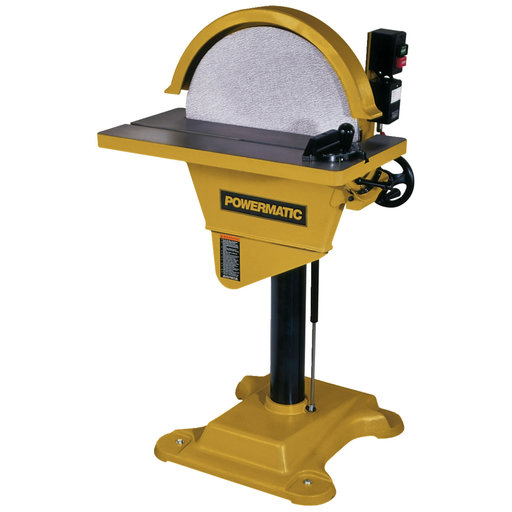

DS20 Disc sander is prefect for professionals or serious home woodworking shop. This model has: Direct drive to disc from motor for maximum efficiency, Extra large sanding surface, Cast iron base , Adjustable tilting work table

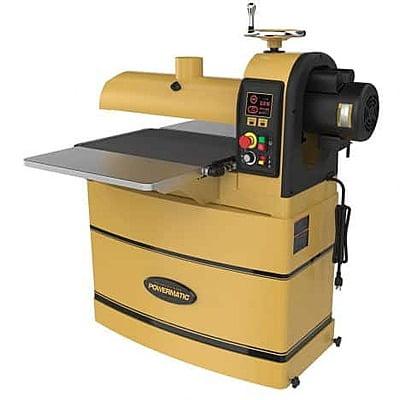

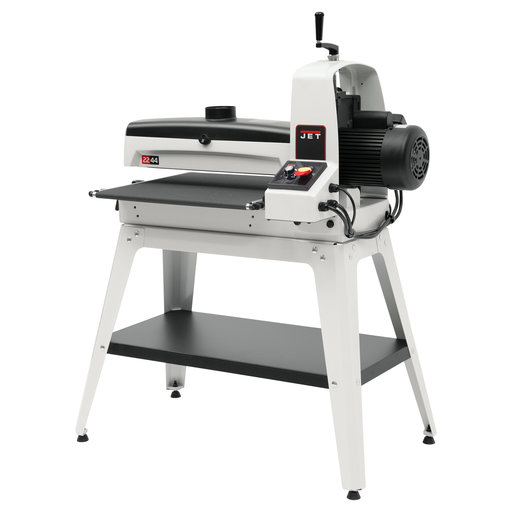

Specifications: Motor: 1-3/4HP, 1Ph, 15A, 115V/60Hz Drum speed (rpm): 1725 Dust port: 4” Drum length: 23" Drum diameter: 5” Conveyor speed: 0-10 FPM Conveyor table size: 26" x 21-3/4" Abrasive installed: 80 Grit Maximum board thickness: 4” Minimum board thickness: 1/32” Minimum board length: 2-3/8” Maximum board width: 22" with one pass Maximum board width: 44” with 2 passes Style: floor model - closed stand Net weight: 216 lb - machine only

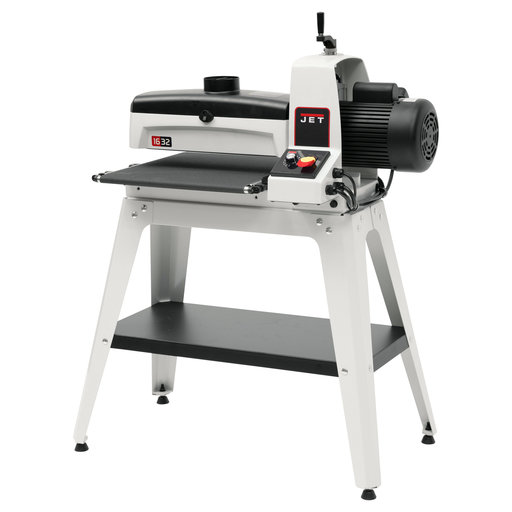

Specifications: Motor: 1-1/2HP, 1Ph, 14A, 115V 60Hz Drum speed (rpm): 1725 Drum Length: 32" Drum Diameter: 5” Abrasive installed: 80 Grit Dust Port Diameter: 4” Maximum Board Thickness: 3” Minimum Board Length: 2-3/8” Minimum Board Thickness: 1/32” Maximum Board Width: 16" with one pass Maximum board Width: 32” with 2 passes Conveyor Seed: 0-10 FPM Conveyor Table Size: 16" x 39-3/4" Net Weight: 187 lb - machine only

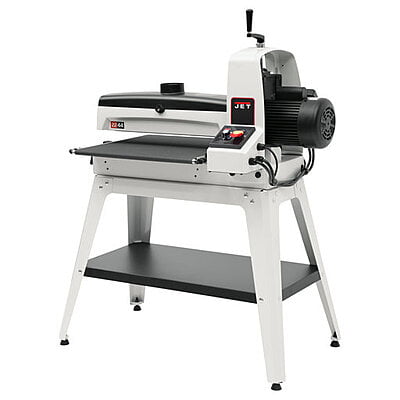

Specifications: Motor: 1-3/4 HP, 1Ph, 15A, 115V/60Hz Drum speed: 1720 RPM Dust port: 4" Drum length: 22-1/4" Drum diameter: 5” Conveyor speed: 0-10 FPM Abrasive installed: 80 grit Maximum board thickness: 4” Minimum board thickness: 1/32” Minimum board length: 3-2/8” Maximum board width: 22" with one pass Maximum board width: 44” with 2 passes Open stand included On/off switch: Toggle with safety key Overall size: 42" L x 24" W x 52" H Style: Floor standing model Net weight: 177 lb - machine only

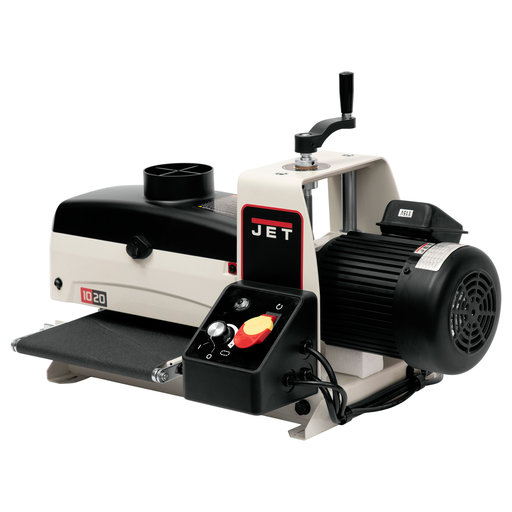

Specifications: Motor: 1HP, 1Ph, 8A, 115V/60Hz Drum speed (rpm): 1720 Dust port: 4” Drum length: 10" Drum diameter: 5” Conveyor speed: 0-10 FPM Conveyor table size: 10" x 15" Abrasive installed: 80 Grit - 3" wide, Aluminum Oxide Maximum board thickness: 3” Minimum board thickness: 1/32” Minimum board length: 2-3/8” Maximum board width: 10" with one pass Maximum board width: 20” with 2 passes Style: Benchtop Net weight: 73 lb - machine only

Specifications: Motor: 1HP, 1 Ph, 44A, 115/230V/60Hz Spindle Speed (RPM): 1720 Spindle oscillations per minute: 75 Spindle oscillations length: 1-1/2" Spindle lock: Yes Table size (L x W): 24-1/2" x 24-1/2" Table height from floor: 39-3/16" Table tilt: 45° front - 15° back Dust port: 4" Dust collection minimum (CFM): 300 Overall dimensions with 4" sanding drum: 24-1/2" W x 24-1/2" L x 44-3/16" H Net weight: 216 lbs

Specifications: Motor: 1-1/2 HP, 1 Ph, 18/9A, 115/230V 60Hz Prewired Voltage: 115V Belt Speed (SFPM): 3,900 Belt Size: 89" x 6" Fence Size: 4" H x 24" L Table Size: 29-3/4" L x 9-7/8" W Table Tilt: 90° Oscillation Stroke: 1/2" Oscillations Per Minute: 108 Dust Port Diameter: 4" Overall Dimensions: 51" L x 26.5" W x 44" H Net Weight: 258 lbs

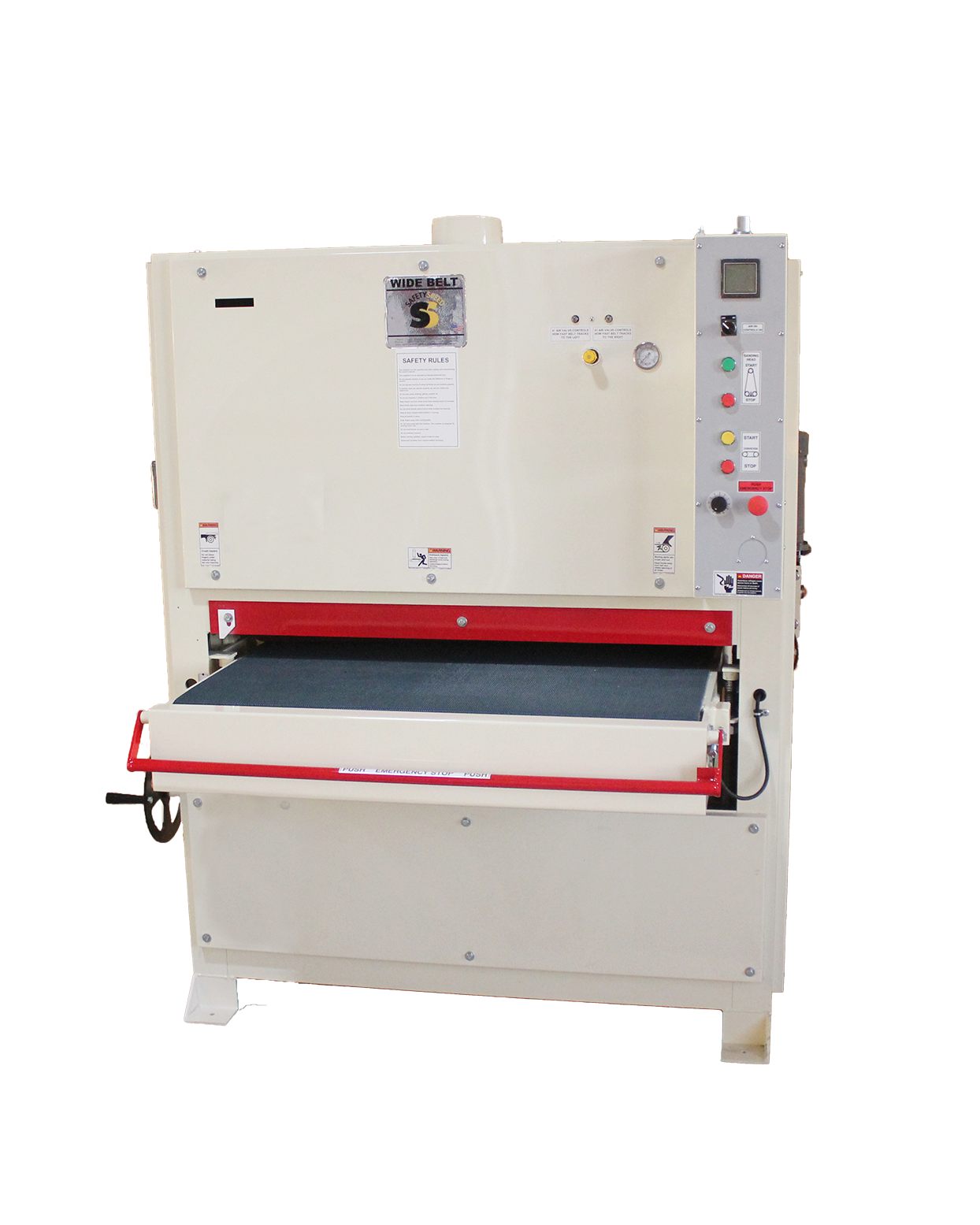

•Wide Belt Sanders solve the most tedious challenge that woodworkers face!, the 37X60 Wide Belt Sander is built to last, including the following as standard equipment on this machine. •Standard Equipment: -Photo electric belt tracking. -2 1/2″ removable platen. -2 height adjustment indicators. -5 emergency stops. -2 rubber-covered pinch rollers 1 1/2″ OD. -Rubber-covered contact roller 4 1/4″ OD with 13/8″ drive bearing. -2 machined idler rollers 2 3/16″ OD with 3/4″ bearings. -Conveyor table set on four 3/4″ acme-threaded jackscrews -Pneumatic belt tensioning. -3 year warranty. -6″ internal dust chute. -3/4 Hp conveyor motor

• The 43″ Wide Belt Sander features a 75” belt, providing 25% more abrasive surface than the smaller 60” belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time. • Standard Equipment - Photo electric belt tracking. - Pneumatic belt tension. - 2 ½” graphite covered felt pad and adjustable platen. - 2 rubber-covered pinch rollers 2 ½” OD. - 2 machined idler rollers 4 ¼” OD with 1″ bearings. - Rubber-covered contact roller 5 ¼” OD with 1 ⅝” drive bearing. - Conveyor table set on four 1″ acme thread jackscrews. - 2 height adjustment indicators. - 6″ internal dust chute. - 5 emergency stops. - 3 year warranty.

• Motor Power (HP) 7.5 • Motor Phase 1 • Motor Voltage (V.) 230 only  • Drum Length (In.) 37 • Number of Sanding Drums 2 • Drum Speed (RPM) 1,700 • Drum Diameter (In.) 6 • Conveyor Motor (HP) 1/4 • Conveyor Speed (FPM) 8 and 12 • Maximum Board Thickness (In.) 5-1/4 • Maximum Board Width (In.) 37 • Minimum Board Length (In.) 9 • Minimum Board Thickness (In.) 1/32 • Dust Collection Minimum CFM Required (CFM) 1,200 • Dust Port Outside Diameter (In.) Two @ 4" • Prewired Voltage (V.) 230 • Recommended Circuit Size (Amps.) 50 • Weight 1142.0000 • Width 45.0000 • Height 45.0000 • Length 60.000
