Striebig Compact (4164).

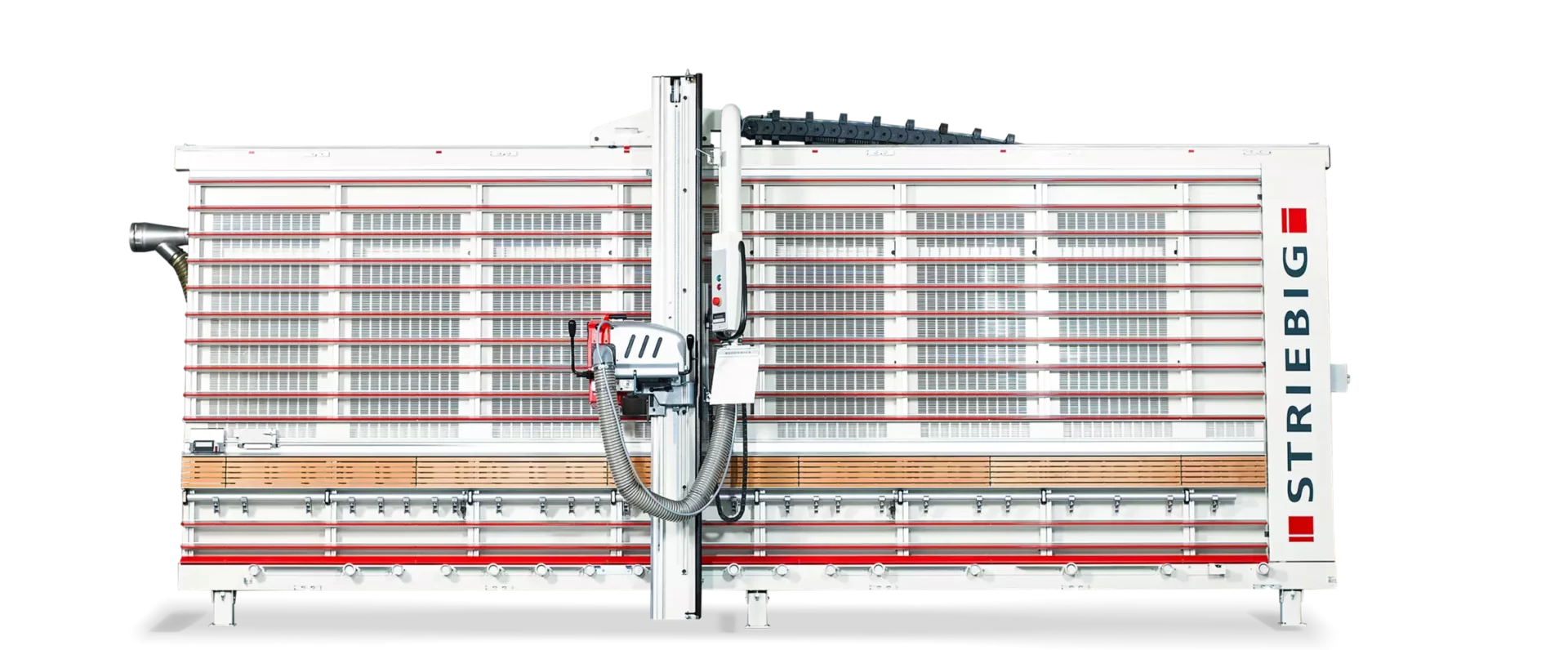

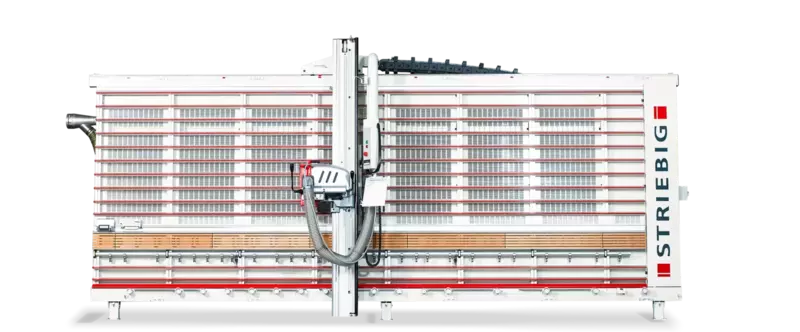

STRIEBIG “COMPACT” (4164) PANEL SAW - Swiss made quality for accuracy and durability! - One-piece fully welded frame, suitable for free-standing or wall-mount installation - Heavy- duty support rollers with integral panel stop assembly - Full length heavy-duty center shelf with moveable aluminum fingers - Built-in wood small parts backing support across full length of center shelf - Special measuring flip stop with “double-flip action” for use with small parts - Automatic, mechanical, upward-shifting support grid to keep off-cuts from binding grid - New, highly efficient dust system with hose enclosed in cable chain and can be run to either end of the frame; additional port at far-right end of frame; note: requires connection to a collector - Cutting stations 40” apart (1 meter spacing available for purely metric shops-factory ordered) - 5-1/4 hp, 3-phase motor with electric brake and noise level below 80dB - 250 mm (9-7/8”) HFG (hollow face), 48T, carbide saw blade - Template bar accepts optional adjustable stops for setting common rip cuts - Auto-engaging riving knife for safety Specifications: Cut capacities: 10’ 2”W x 5’ 4” Hvert, 5’ 1/2” Hhor; Depth 2-3/8” (60mm) Machine dimensions: 13’ 10”L, 7’ 10” H (8’ 6” w/repeat rip device), 4’ 8” D (from wall) Weight: 1340 lbs. (approx. 1855 lbs. shipping) Requirements: Electrical: 3-phase, 208 or 240V (20A) or 480V (10A); must specify voltage; right side Dust collection: 500 cfm/port; 2x 100mm (4”) ports (second connection at bottom right corner of frame is optional and hose is not provided)
