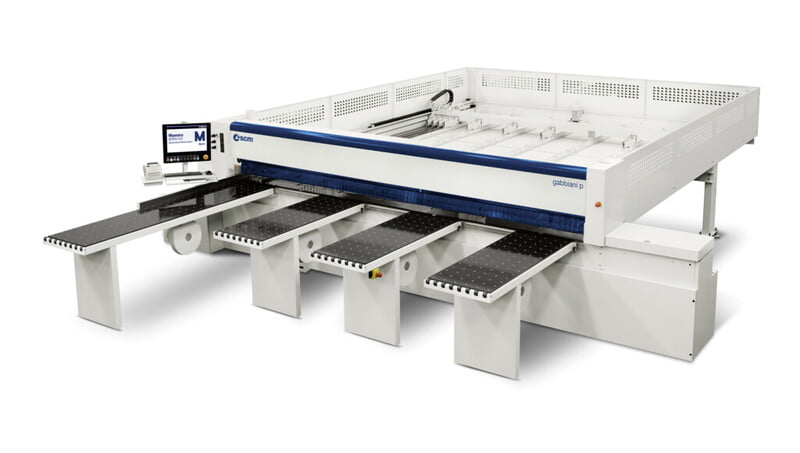

Gabbiani P80 10'
GENERAL DATA gabbiani p80 Blade projection mm 80 (3.15”) Worktable height mm 950 (37.4”) Standard clamps q.ty 5 Total clamps for 33 version q.ty 7 CUTTING DIMENSIONS Version 33 mm 3300x3200 (130”x126”) AXES SPEED Variable saw carriage speed m/min 0 – 120 (0-393.7 ft/min) Variable pusher speed m/min 70 (229.7 ft/min) MAIN SAW BLADE Motor power (S6 -40%) - 60hz (star-delta start) Hp 15 Rotating speed – 60 hz rpm 5580 Blade diameter mm 340 (13.38”) Blade shaft diameter mm 80 (3.15”) SCORING SAW BLADE Motor power (S6 -40%) - 60hz Hp 2 Rotating speed – 60 hz rpm 7020 Scoring saw blade diameter mm 200 (7.87”) Scoring blade shaft diameter mm 80 (3.15”) INSTALLATION Installed motor power kW 12÷15 Machine voltage 230 V / 60 hz Compressed air consumption NL/min 300 Requested operating pressure bar 7 Extraction flow rate m3/h 2190 Exhaust speed m/sec 20 Exhaust outlet diameter mm 4x120
$106,000.00
Customize
Warranty: SCM warrants that the machinery will be free of defects in workmanship and materials for a period of one (1) year beginning on the date the machinery is accepted by the customer. This warranty includes belts, bearings, and common electrical parts, which carry a six-month warranty. This warranty does not include parts consumed during normal operation (wearable items) or maintenance required in the ordinary course of operation.
